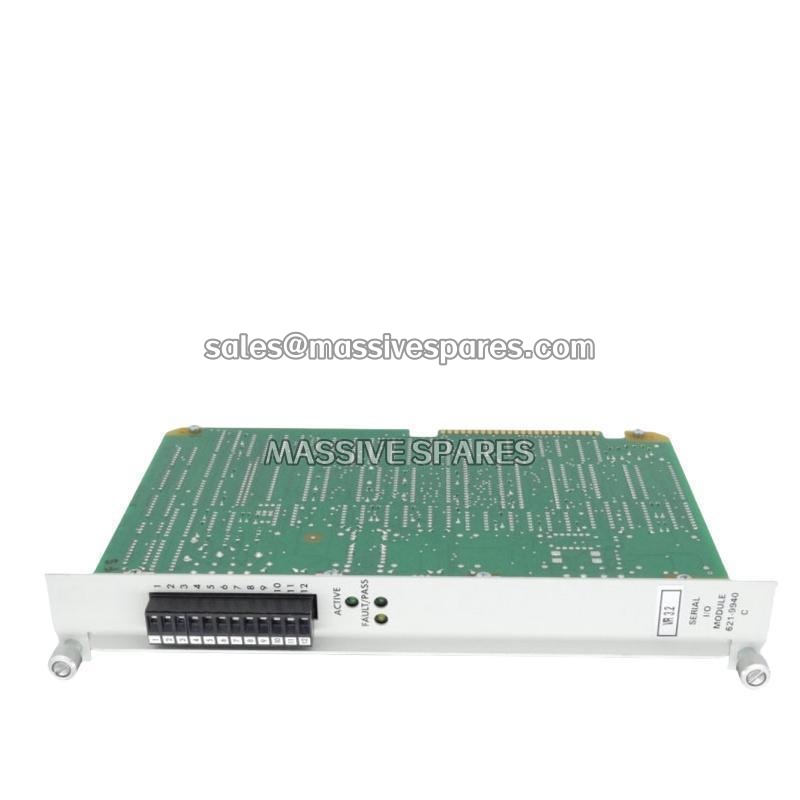

Honeywell 621-9940C UCN Serial I/O Module – SIOM for IPC 620 Control Systems

Description

Honeywell 621-9940C is a Serial I/O Module (SIOM) manufactured by Honeywell for the IPC 620 and Modular Control Solutions 620 industrial control platforms. The module resides in the serial I/O rack and functions as the interface between local I/O cards and the upstream Serial Link Module (SLM), aggregating field signals and transmitting them over a serial communication link to the central controller.

Application Scenarios

A chemical processing facility in the Gulf Coast region had been operating a Honeywell IPC 620 control system on its reactor temperature control loop for over two decades. When a Honeywell 621-9940C module began exhibiting intermittent data dropouts during peak production hours, the maintenance team initially suspected the I/O cards in the rack. Diagnostics revealed the Honeywell 621-9940C was intermittently failing to aggregate data from multiple slots, causing sporadic loss of temperature readings from the reactor jacket. The team replaced the aging module with a tested spare Honeywell 621-9940C and verified the termination resistors on the serial channel matched the Belden 9729 cable impedance. Data transmission stabilized, and the reactor control loop returned to consistent performance without requiring replacement of the underlying I/O cards. This case highlights the Honeywell 621-9940C’s role as a single point of failure that can affect an entire rack’s data flow if not properly maintained or terminated.

Parameter
