Application Scenarios
In a mid-sized manufacturing plant with on-site generator backup, the facility’s main switchgear experienced recurring issues with voltage asymmetry that the existing protection scheme failed to detect. Phase imbalances caused by uneven single-phase loads were gradually degrading motor insulation and causing nuisance trips on sensitive CNC equipment. After installing the MRU3-11D as the primary voltage monitoring relay, the plant gained the ability to detect negative-sequence voltage components as low as 5% imbalance, triggering alarms before equipment damage occurred. The relay’s symmetrical component analysis identified a recurring phase-to-ground fault on one of the plant’s distribution feeders that conventional undervoltage protection had missed entirely, enabling targeted repairs that eliminated the root cause of the imbalance. The MRU3-11D transformed the plant’s voltage protection from a simple threshold-based scheme into a comprehensive power quality monitoring solution.
Parameter
| Parameter | Value/Description |
|---|---|

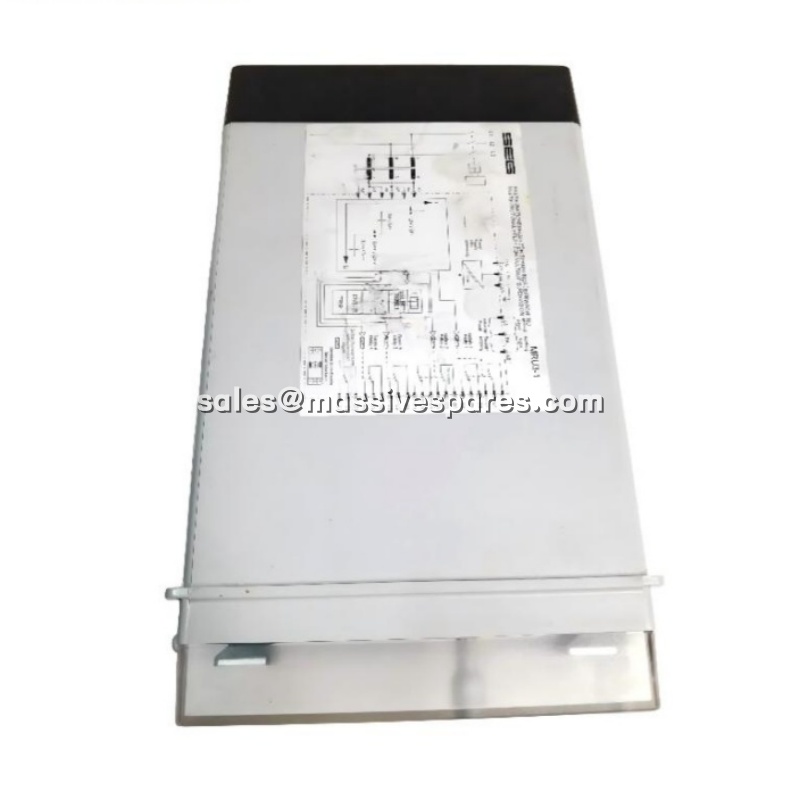

| Product Model | MRU3-11D |
| Manufacturer | Woodward (SEG) |
| Product Category | Three-Phase Voltage Protection Relay |
| Voltage Measuring Range | 0–690 V AC (100/230/400/690V systems) |
| Frequency Range | 40–70 Hz (50/60 Hz adaptive) |
| Auxiliary Supply | 24 VDC or 85–265 V AC/DC |
| Accuracy | ≤ ±1% of rated voltage |
| Protection Functions | ANSI 27/59/47 (Under/Overvoltage, Phase Unbalance) |
| Voltage Setpoints | Undervoltage: 0.7–1.0×Un; Overvoltage: 1.0–1.3×Un |
| Time Delay | 0.1–10s adjustable, independent per stage |
| Relay Output | 1× SPDT, 5A @ 250VAC |
| Analog Output | 4–20 mA voltage transmitter |
| Communication | RS485 Modbus RTU |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 108 × 70 × 115 mm |
| Weight | Approximately 0.4 kg |
| Mounting | DIN rail |
| Certifications | CE, UL, RoHS |
Technical Principles and Innovative Values
Innovation Point 1: Symmetrical Component Analysis for Comprehensive Fault Detection. The MRU3-11D goes beyond simple voltage threshold monitoring by continuously calculating positive (U1), negative (U2), and zero sequence (U0) voltage components. This approach enables detection of asymmetrical faults that pure undervoltage protection would miss, such as single-phase line interruptions where the faulty phase voltage may be partially rebuilt through running motors or transformers . The relay triggers on negative sequence overvoltage when imbalance exceeds configurable thresholds, providing early warning of conditions that degrade motor insulation and transformer windings.
Innovation Point 2: Discrete Fourier Transform Filtering for Harmonic Immunity. The MRU3-11D employs digital filtering based on discrete Fourier analysis to eliminate higher harmonics and DC components from measurement values . This filtering ensures accurate true RMS measurement even in electrical environments with significant harmonic distortion from variable frequency drives, UPS systems, and other nonlinear loads. The sampling rate of 16× nominal frequency (1.25 ms per measurement at 50 Hz) provides high-resolution data for reliable protection decisions .
Innovation Point 3: Dual Parameter Sets for Adaptive Protection. The relay stores two independent parameter sets that can be switched based on operational conditions or external signals. This feature is particularly valuable in generator applications where protection settings may need to differ between grid-connected and islanded operation modes, or in facilities with seasonal load patterns requiring different sensitivity thresholds.
Innovation Point 4: Integrated Fault Recording with Non-Volatile Memory. The MRU3-11D captures fault data including trip values, active parameter set, and time stamps for up to five fault occurrences in non-volatile memory . The recording includes pre-trigger data selectable from 0.05s up to the maximum recording interval, providing context for fault analysis. Fault records can be accessed through the front panel or via RS485 communication, enabling maintenance teams to diagnose recurring issues without external recording equipment.
