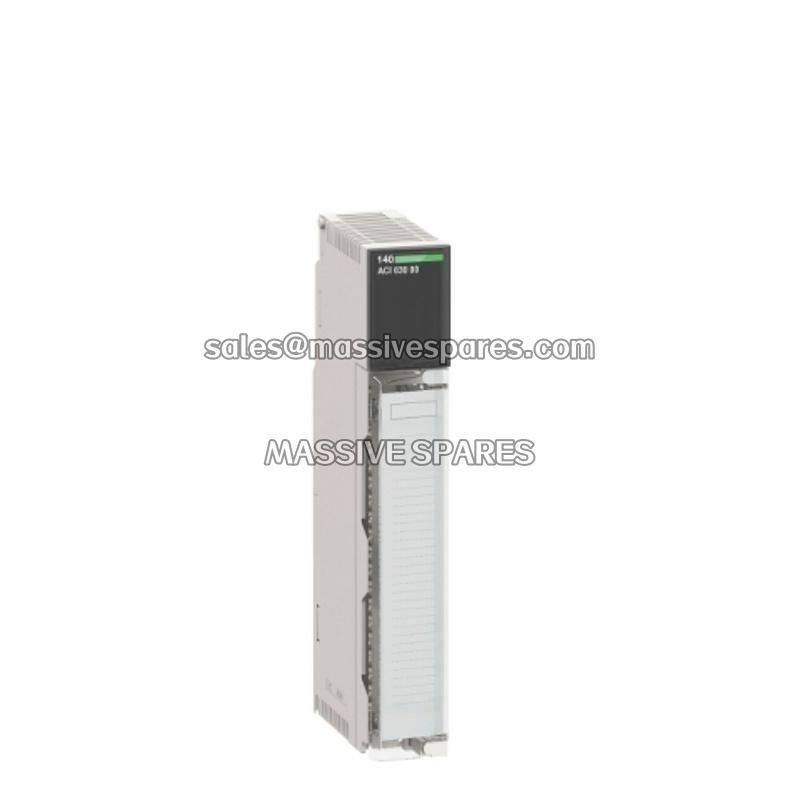

Schneider 140ACI03000 Quantum Analog Input Module | 4-20 mA / 1-5 V, 1000 V Bus Isolation

Application Scenarios

Consider a mid-size wastewater treatment plant running aging Modicon Quantum controllers to orchestrate aeration blowers, dosing skids, and effluent pumping. Dozens of 4-20 mA instruments feed the PLC racks — DO probes, flow meters, chemical-tank level transmitters — and every one of them terminates on an analog input card. When a legacy input module begins to drift, operators see erratic dosing rates, phantom level alarms, and unreliable aeration control long before a hard failure appears. This is exactly the failure domain the 140ACI03000 was engineered to dominate: swapping the suspect card restores clean 12-bit signal acquisition in a slot-swap procedure that takes minutes, because Quantum I/O is designed for in-service replacement and the terminal block stays bolted to the backplane. The pain points it resolves are familiar to every process-control engineer: drifting analog readings that poison control loops, obsolete OEM lead times that stretch outage windows, channel-to-channel crosstalk on multi-channel cards, and the commissioning burden of re-scaling every replacement. Because the 140ACI03000 uses a fixed, industry-standard 1-5 V / 4-20 mA range profile, the replacement card drops into the existing addressing map with no software retuning — the loop is back in control the moment the new module recognizes its slot.

Parameter
