Product Overview

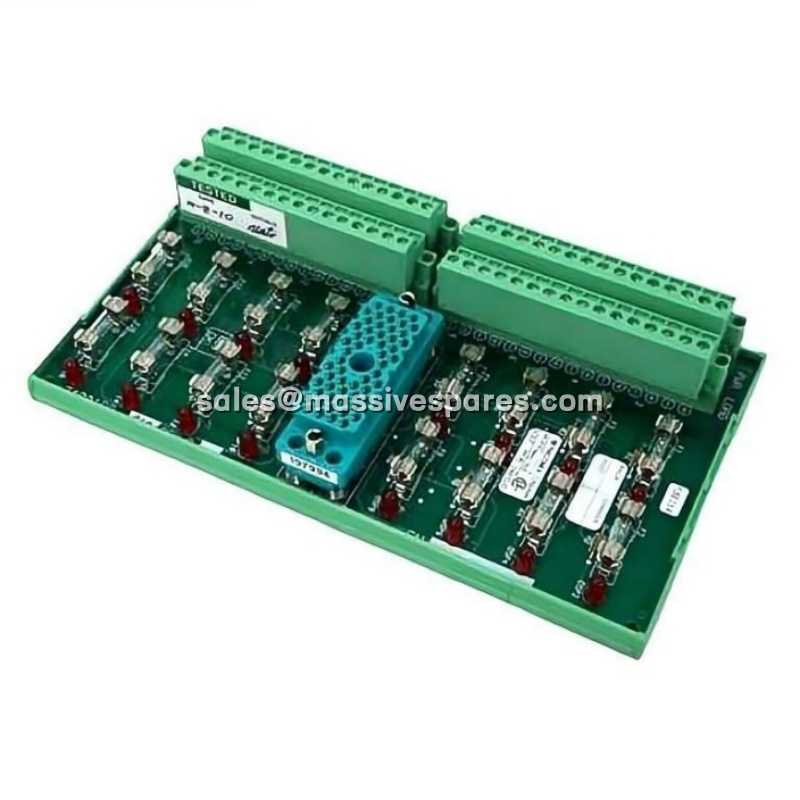

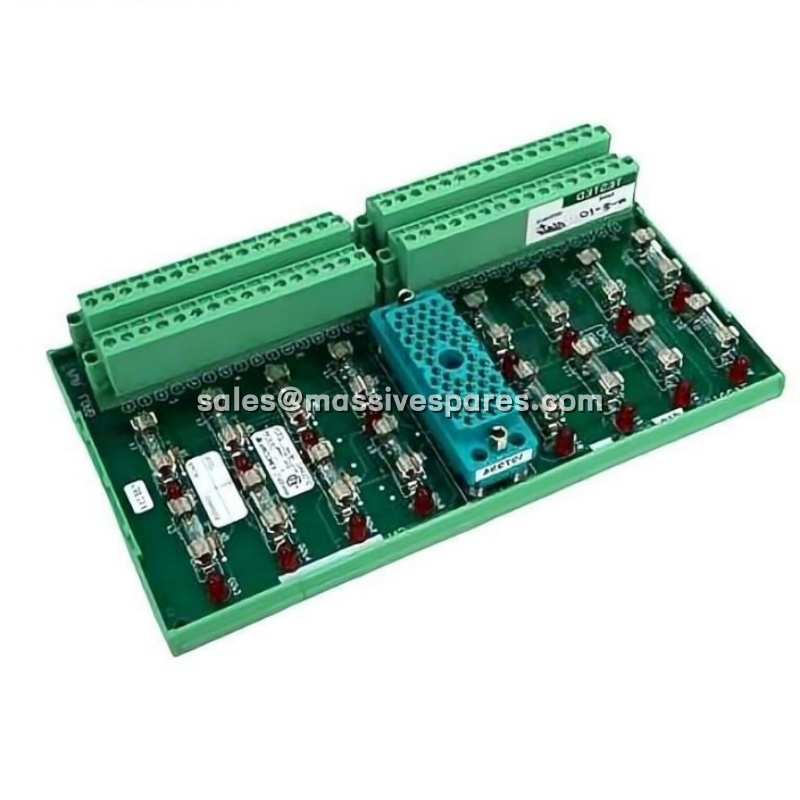

The Woodward 9662-110 7760050029 is an industrial-grade panel field termination board designed to provide a secure and reliable interface between control system I/O and field wiring. As a critical component in Woodward control architectures, the Woodward 9662-110 7760050029 simplifies the connection process by converting controller-side connectors into organized, accessible terminal points for field device wiring. This termination board serves as the physical and electrical bridge that ensures signals are transmitted accurately from sensors, actuators, and other field devices to the control system without degradation or interference.
The Woodward 9662-110 7760050029 is manufactured with industrial-grade PCB materials featuring protective coating, ensuring durability in demanding automation environments. The board supports multiple signal types including analog, digital, and communication lines, making it a versatile solution for diverse control applications. Its passive design philosophy prioritizes reliability by eliminating active electronic components that could introduce failure points, while built-in signal isolation and overvoltage protection safeguard connected equipment from electrical disturbances .
Within Woodward control systems, the Woodward 9662-110 7760050029 plays an essential role in maintaining wiring organization and signal integrity. The board’s panel-mount configuration and compact dimensions of 200 × 160 × 40 mm allow for efficient use of control cabinet space while providing clear access to all termination points. By centralizing field wiring connections on a dedicated termination board, the Woodward 9662-110 7760050029 facilitates easier troubleshooting, reduces maintenance time, and minimizes the risk of wiring errors during installation or service activities.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 9662-110 |
| Order Number | 7760050029 |
| Manufacturer | Woodward (Weidmuller) |
| Product Type | Panel Field Termination Board |
| Power Supply | 24 VDC nominal (via backplane) |
| Connection Method | Field wiring terminals |
| Interface | Connects controllers to I/O signals |
| Supported Signal Types | Analog, digital, and communication lines |
| Protection Features | Signal isolation, overvoltage protection, grounding |
| PCB Material | Industrial-grade with protective coating |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Mounting Type | Panel mount |
| Dimensions (H × W × D) | 200 × 160 × 40 mm |
| Weight | 0.8 kg |
