Product Overview

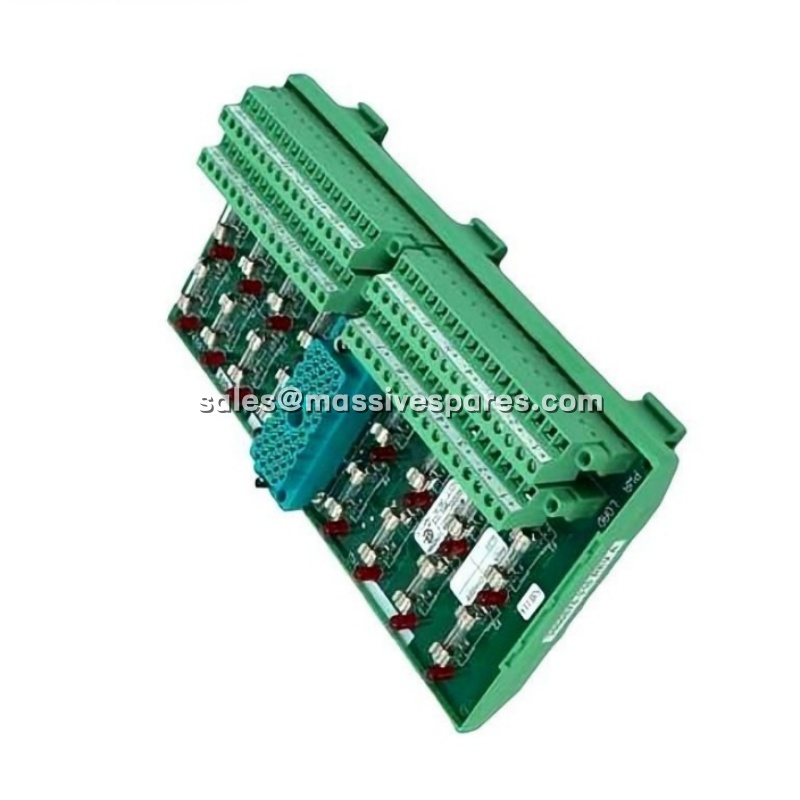

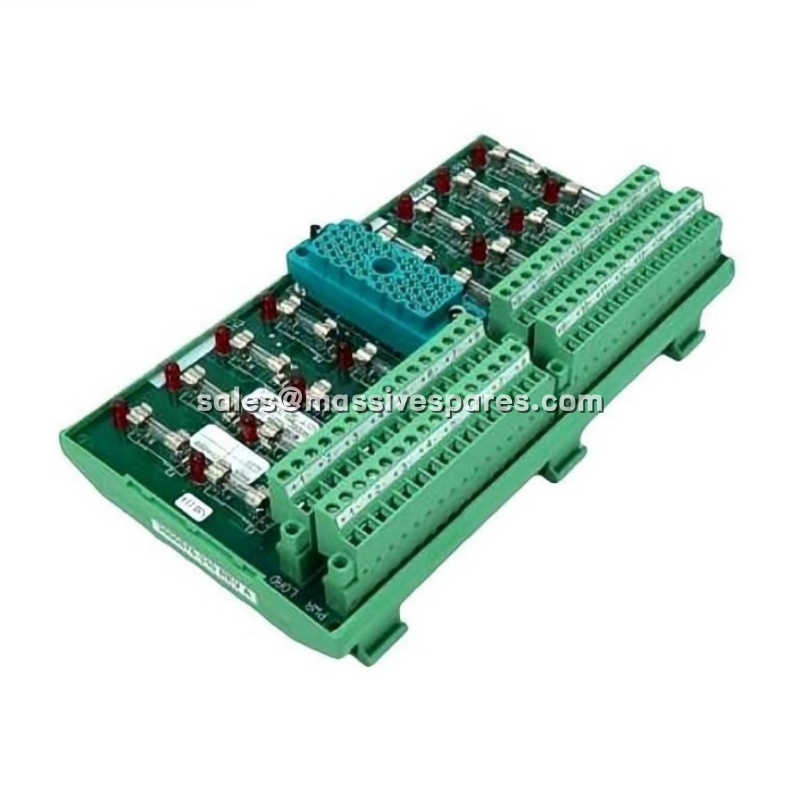

The Woodward 9662-110 7760050029 is an industrial interface terminal board designed to provide a secure and organized connection between control-system modules and field wiring. It serves as a passive termination interface, allowing field conductors to be connected to screw-clamp terminals while maintaining compatibility with the corresponding control-module interface connector. The Woodward 9662-110 7760050029 is commonly applied where reliable signal distribution, convenient wiring access, and long-term serviceability are required.
This board is identified by model 9662-110 and parts reference 7760050029. Market documentation often describes it as a field termination, interface terminal board, or I/O terminal board. Its primary function is not signal processing or control logic, but electrical interconnection. By separating field wiring from the control module connector, the board helps protect sensitive electronic interfaces from repeated handling and simplifies installation, inspection, and repair work.
The Woodward 9662-110 7760050029 is particularly useful in cabinet-based automation systems where multiple analog, discrete, or communication signals must be routed between controllers and field instruments. Its terminal arrangement supports systematic cable management and provides accessible points for measurement and troubleshooting. In many industrial applications, this reduces wiring errors and helps maintenance personnel verify signals without disturbing the permanent control-module connection.
Because public technical documentation for this exact parts combination is limited, configuration-specific details such as terminal assignments, signal types, connector pinout, and compatible control module should be confirmed against the project wiring drawings before installation. When correctly specified, the Woodward 9662-110 7760050029 offers a practical and serviceable interface solution for industrial control cabinets, turbine-control panels, and process-automation systems.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 9662-110 |
| Parts Reference | 7760050029 |
| Manufacturer | Woodward |
| Product Type | Interface Terminal Board / Field Termination Board |
| Board Function | Passive signal and field-wiring interface |
| Connection Type | Screw-clamp terminal blocks |
| Field Signals | Analog, discrete, and communication signals, as configured |
| Control-Side Interface | Compatible module interface connector |
| Mounting Method | Panel or cabinet mounting |
| Material | Industrial-grade printed circuit board |
| Termination Protection | Fused, isolated, or protected versions must be confirmed by drawing |
| Operating Temperature | -20°C to +70°C, subject to configuration |
| Storage Temperature | -40°C to +85°C, subject to configuration |
| Humidity Rating | 5–95% RH, non-condensing |
| Dimensions | 200 × 160 × 40 mm |
| Weight | 0.8 kg |
| Country of Origin | USA |
Main Features and Advantages
The Woodward 9662-110 7760050029 provides a structured and durable interface between field wiring and control-system electronics. Its screw-clamp terminals accommodate individual field conductors while offering a more robust and serviceable alternative to repeatedly connecting and disconnecting wires at a control-module connector. This construction is well suited to industrial cabinets where vibration, temperature changes, and maintenance activity can affect wiring reliability.
A key benefit of the Woodward 9662-110 7760050029 is improved wiring organization. By grouping related field signals on a dedicated board, installers can create a clearer cable layout, simplify conductor identification, and reduce the risk of cross-wiring during commissioning. The accessible terminal arrangement also supports routine inspection and troubleshooting without requiring specialized connectors.
The board’s industrial-grade construction is designed to withstand typical control-cabinet conditions. It supports a practical interface for analog, discrete, and communication circuits when the project wiring and module configuration are compatible with the terminal layout. This flexibility makes the Woodward 9662-110 7760050029 suitable for use in power generation, turbine and compressor control, oil and gas, process automation, and general industrial machinery applications.
