Application Scenarios
A manufacturing plant operating legacy Xycom 9450 industrial computers faced a critical challenge: system recovery media and older PLC configuration software were still distributed on 3.5-inch floppy disks, but the machines had no internal floppy drives. When a hard drive failure occurred on one of the production control terminals, technicians could not load the recovery boot disk. The maintenance team deployed the 9000-EXF external drive module, connecting it via the dedicated Xycom interface. Within minutes, the system booted from the recovery floppy, and the control terminal was restored to full operation. The 9000-EXF provided a practical bridge between modern industrial PCs and the legacy floppy-based software ecosystem that many plants still depend on for critical maintenance procedures.
Parameters
| Main Parameters | Value/Description |
|---|---|

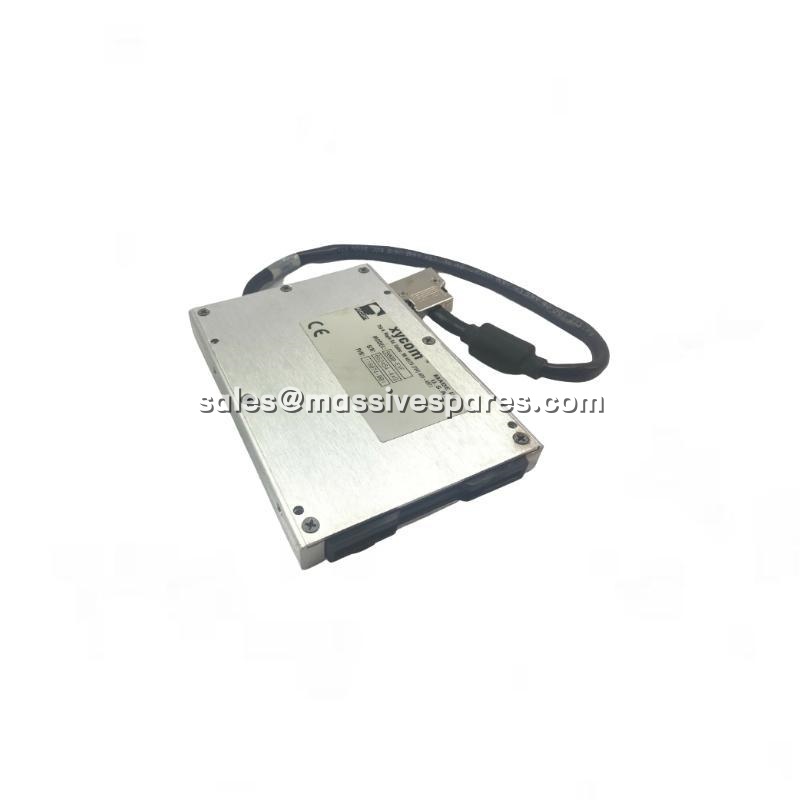

| Product Model | 9000-EXF |
| Manufacturer | Xycom |
| Product Category | External Floppy Disk Drive Module |
| Part Number | 116074-001 |
| Media Type | 3.5-inch floppy disk, 1.44 MB |
| Interface | Parallel port or dedicated Xycom external interface |
| Power Supply | Powered by host system |
| Compatible Systems | Xycom 9450, 9403, 9400, 9410 industrial Mini-PCs |
| Mounting | Four screw holes on rear panel |
| Operating Environment | NEMA 4/4X/12 compliant enclosures |
| Weight | Approximately 0.5 kg |
| Dimensions | 15 cm × 10 cm × 5 cm |
Technical Principles and Innovative Values
Innovation Point 1: Purpose-Built for Legacy Industrial PC Recovery. The 9000-EXF addresses a specific and persistent industrial need: providing floppy disk access to Xycom industrial computers that were manufactured without internal floppy drives. This capability is essential for system booting, loading recovery media, and reinstalling older operating systems such as Windows 95/98 when hard drives fail.
Innovation Point 2: Dedicated Xycom Interface Compatibility. The 9000-EXF connects via a parallel port or dedicated Xycom external interface, ensuring reliable communication with the host industrial PC. This purpose-designed connection avoids the compatibility issues that generic external floppy drives often encounter with industrial hardware.
Innovation Point 3: Industrial-Grade Construction. The module is built to operate in demanding industrial environments, suitable for mounting within NEMA 4/4X/12 compliant enclosures. This rugged design ensures reliable performance in factory floors where dust, vibration, and temperature variations are routine.
Innovation Point 4: Simple Rear-Panel Mounting. The 9000-EXF features four screw holes on its rear panel for direct mounting to the industrial PC chassis or cabinet. This straightforward installation method minimizes setup time and ensures secure attachment in high-vibration environments.
