Description
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 5SHX0660F0002 |
| Alternative Part Number | 3BHE022333R0101 / 3BHB018104R0001 |
| Manufacturer | ABB |
| Product Type | Reverse-Conducting IGCT Module |
| Technology | Integrated Gate-Commutated Thyristor (RC-IGCT) |
| Repetitive Blocking Voltage (VDRM) | 4500 V to 5500 V |
| Continuous Turn-Off Current | 660 A (typical) |
| Peak Turn-Off Current | Up to 5000 A (short duration) |
| On-State Voltage (VTM) | < 1.9 V typical at rated current |
| Switching Frequency | Up to 1 kHz (500 Hz continuous) |
| Gate Control Voltage | 24 V DC (integrated gate unit) |
| Trigger Interface | Fiber-Optic (V-Pin / ST style) |
| Cooling Method | Direct Liquid Cooling (water/glycol) or Forced Air |
| Mounting | Press-Pack, 10-25 kN clamping force |
| Operating Junction Temperature | -40°C to +125°C |
| Package Style | Ceramic Press-Pack (91 mm diameter) |
Main Features and Advantages

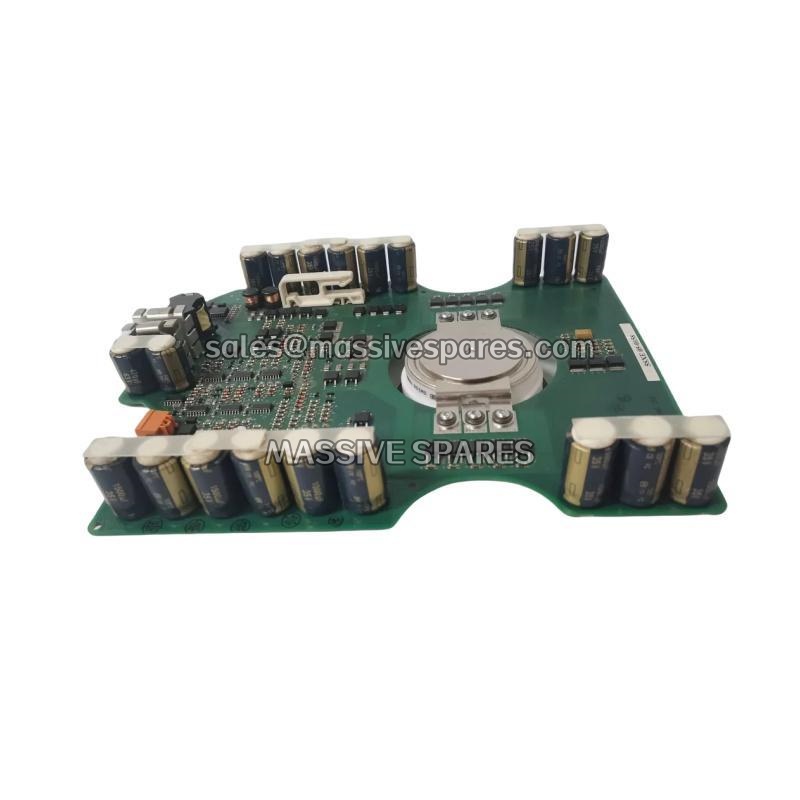

Integrated Gate Unit in Press-Pack Format: The ABB 5SHX0660F0002 physically integrates the gate driver directly atop the semiconductor disc within the same press-pack can, collapsing stray inductance in the gate loop to near-zero. This architecture enables “hard-drive” commutation where the ABB 5SHX0660F0002 turns off in less than one microsecond without the dV/dt stress that would require external snubbers on conventional GTO devices.
Low Conduction Losses with Reverse-Conducting Design: The ABB 5SHX0660F0002 employs a reverse-conducting IGCT wafer that integrates the freewheeling diode function directly into the semiconductor structure. This eliminates the need for separate freewheeling diodes, reducing component count and cabinet footprint while achieving on-state voltages below 1.9 V at rated current. The low conduction losses translate directly to reduced heat dissipation and higher overall converter efficiency.
Snubberless Operation and Simplified System Design: Because the ABB 5SHX0660F0002 performs fast turn-off without excessive dV/dt, inverter designs using this module can eliminate the large snubber circuits and their associated capacitors, resistors, and inductors. This simplification reduces system cost, eliminates snubber-related failure modes, and frees up valuable cabinet space in medium-voltage drive installations.
High di/dt Turn-Off Capability: The ABB 5SHX0660F0002 supports fast commutation in NPC and ANPC converter topologies without auxiliary circuits. The integrated gate unit enables precise control over conduction transitions, preventing timing drift or mismatch faults that could degrade switching sequences in parallel-connected module configurations.
Optical Isolation for EMI Immunity: The ABB 5SHX0660F0002 uses plastic optical fiber for both trigger input and fault status feedback, providing complete galvanic isolation between the gate drive electronics and the main controller. This optical interface ensures reliable operation even in the presence of the severe electromagnetic interference found in high-voltage converter cabinets.
Robust Thermal Management: With double-side cooling capability and a junction temperature range extending from -40°C to +125°C, the ABB 5SHX0660F0002 maintains reliable performance under continuous heavy loading. The hermetically sealed ceramic package withstands humidity, vibration, and industrial contaminants, delivering 20+ years of service life in demanding environments.
