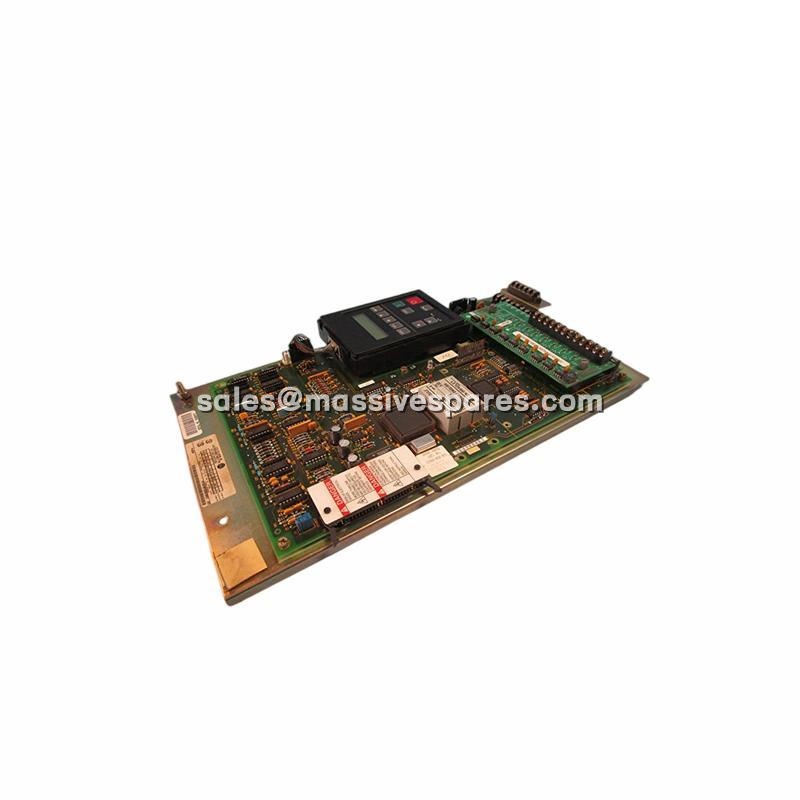

Allen-Bradley 1336S-MCB-SPI Circuit Board for 1336 PLUS Series

Brand Allen-Bradley

Model Allen-Bradley 1336S-MCB-SPI

Product Overview

The Allen-Bradley 1336S-MCB-SPI is a main control circuit board designed specifically for the 1336 PLUS and 1336 PLUS II adjustable frequency AC drive series. As the central processing and signal interface component, the Allen-Bradley 1336S-MCB-SPI governs the drive’s core control logic, managing everything from motor speed regulation to fault diagnostics. This board serves as the primary interface between the drive’s power structure and external control systems, handling analog and digital I/O, communication protocols, and real-time motor control algorithms.

Engineered for compatibility across drive frames B through H, the Allen-Bradley 1336S-MCB-SPI supports an extensive power range from 0.37 kW to 448 kW, accommodating both small-scale and heavy-duty industrial applications. The board operates on a 5 VDC logic power supply while interfacing with AC input voltages of 200 to 600 VAC and DC bus voltages spanning 310 to 775 VDC. This wide compatibility makes the Allen-Bradley 1336S-MCB-SPI a versatile spare part for maintenance and repair operations across diverse drive configurations within the 1336 PLUS family.

As a discontinued product, the Allen-Bradley 1336S-MCB-SPI is now primarily available through surplus and refurbished channels, serving as a critical replacement component for legacy drive systems still in operation. Its robust design and proven reliability continue to make it an essential part for facilities maintaining Allen-Bradley 1336 PLUS drive infrastructure.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	1336S-MCB-SPI
Manufacturer	Allen-Bradley
Product Type	Main Control Circuit Board
Product Line	1336 PLUS / 1336 PLUS II Drives
Alternative Part Numbers	74100-071-51, 1336S-MCB-SP1, 1336S-MCB-SP1A
Voltage Rating (Logic)	5 VDC
Input Voltage Rating (AC)	200 – 600 VAC
Voltage Rating (DC Bus)	310 – 775 VDC
Compatible Drive Frames	B, C, D, E, F, G, H
Power Rating Range	0.37 kW to 448 kW
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Weight	Approximately 0.61 kg

Main Features and Advantages

The Allen-Bradley 1336S-MCB-SPI delivers comprehensive control capabilities that form the operational backbone of 1336 PLUS drive systems. This main control board manages signal processing, analog and digital I/O, and communication functions essential for precise motor control.

Integrated Control Architecture: The Allen-Bradley 1336S-MCB-SPI incorporates built-in analog-to-digital and digital-to-analog converters, enabling accurate signal processing for potentiometer inputs, 0–10 VDC and 4–20 mA analog signals, pulse inputs, and relay outputs. This integrated design eliminates the need for additional signal conditioning modules, simplifying system architecture and reducing potential failure points.

Broad Drive Compatibility: Designed to work seamlessly across frame sizes B through H, the Allen-Bradley 1336S-MCB-SPI provides a single board solution for a wide range of drive power ratings. This compatibility reduces spare parts inventory requirements and ensures consistent control behavior across different drive configurations within the same facility.

Diagnostic and Communication Capabilities: The Allen-Bradley 1336S-MCB-SPI supports diagnostic functions that enable operators to monitor drive status and identify faults quickly. Communication interfaces facilitate integration with Allen-Bradley control systems, allowing the drive to function as a coordinated component within larger automation architectures.

Industrial-Grade Construction: Built with durable PCB materials and designed for reliable operation in industrial environments, the Allen-Bradley 1336S-MCB-SPI withstands the electrical noise, temperature variations, and continuous operation demands typical of manufacturing and process control settings.
