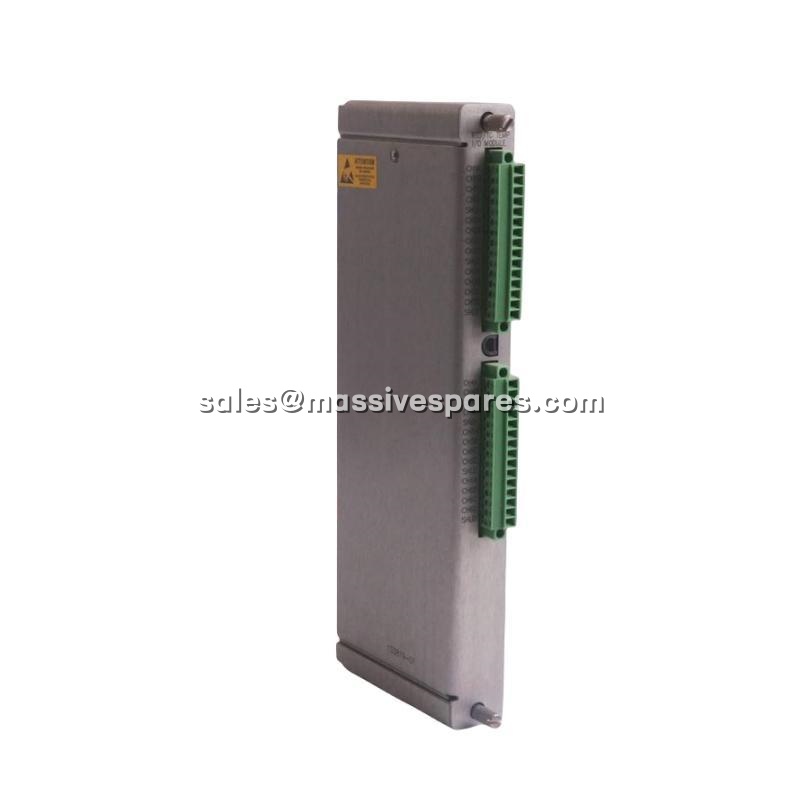

BENTLY NEVADA 3500/45 140072-04 Four-Channel Position Monitor for Turbomachinery Protection

Brand Bently Nevada

Model BENTLY NEVADA 3500/45 140072-04

Product Overview

The BENTLY NEVADA 3500/45 140072-04 is a four-channel Position Monitor Module engineered for the Bently Nevada 3500 Machinery Protection System, a globally recognized platform for continuous condition monitoring and protection of critical rotating equipment. As a core component of the 3500/45 series, the BENTLY NEVADA 3500/45 140072-04 accepts inputs from proximity transducers, Rotary Position Transducers (RPTs), AC/DC LVDTs, and rotary potentiometers, converting these signals into precise machinery displacement measurements, recorder outputs, and protection alarms. Each of the four independent channels can be configured for distinct monitoring functions including axial thrust position, differential expansion, case expansion, valve position, and dual ramp expansion, providing exceptional flexibility for diverse machinery protection applications.

The BENTLY NEVADA 3500/45 140072-04 operates within the 3500 Series rack architecture, where it processes low-level transducer signals through advanced signal conditioning circuitry before comparing measured values against user-programmable Alert and Danger setpoints. When position measurements exceed configured thresholds, the module generates alarm signals that can trigger shutdown sequences or alert operators to developing mechanical issues such as bearing wear, misalignment, or thermal growth anomalies. This early fault detection capability enables maintenance teams to schedule corrective actions during planned outages rather than responding to catastrophic failures.

Designed for demanding industrial environments, the BENTLY NEVADA 3500/45 140072-04 meets API 670 compliance requirements and operates reliably across a temperature range of -30°C to +65°C. The module’s hot-swap capability allows replacement without disrupting ongoing machinery monitoring, while its buffered coaxial outputs provide convenient access to conditioned transducer signals for diagnostic equipment or portable data collectors. Whether deployed in steam turbines, centrifugal compressors, or large pumps, the BENTLY NEVADA 3500/45 140072-04 delivers the measurement accuracy and reliability essential for protecting high-value rotating assets.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	BENTLY NEVADA 3500/45 140072-04
Manufacturer	Bently Nevada (GE/Baker Hughes)
Product Type	Position Monitor Module
Input Channels	4 independent channels
Supported Sensors	Proximity probes, RPTs, AC/DC LVDTs, rotary potentiometers
Input Impedance	10 kΩ (Proximitor/RPT), 1 MΩ (DC LVDT), 137 kΩ (AC LVDT), 200 kΩ (Potentiometer)
Thrust Sensitivity	3.94 or 7.87 mV/μm (100 or 200 mV/mil)
Differential Expansion Sensitivity	0.394 or 0.787 mV/μm (10 or 20 mV/mil)
Measurement Accuracy	±0.33% full-scale typical; ±1% maximum
Recorder Output	+4 to +20 mA proportional to full scale, 0–600 Ω load
Power Consumption	7.7 W typical (without internal barriers); 8.8 W typical (with internal barriers)
Operating Temperature	-30°C to +65°C (-22°F to +150°F)
Dimensions (H × W × D)	241.3 × 24.4 × 241.8 mm (9.50 × 0.96 × 9.52 in)
Weight	0.91 kg (2.0 lbs)
Rack Compatibility	3500 Series, one full-height slot

Main Features and Advantages

Four-Channel Flexible Configuration: The BENTLY NEVADA 3500/45 140072-04 provides four fully independent monitoring channels that can be individually configured for distinct measurement functions. Channels may be paired to support dual-channel monitoring modes such as thrust position with redundant sensors or differential expansion using two probes monitoring opposite directions of rotor movement. This architectural flexibility eliminates the need for multiple dedicated modules in applications requiring mixed position monitoring.

Multi-Sensor Compatibility: Unlike monitors restricted to a single transducer type, the BENTLY NEVADA 3500/45 140072-04 accepts proximity probes, Rotary Position Transducers, AC and DC LVDTs, and rotary potentiometers on the same module. This versatility simplifies spare parts inventory and allows engineers to standardize on a single module type across diverse machinery protection schemes.

Advanced Signal Conditioning and Outputs: The BENTLY NEVADA 3500/45 140072-04 incorporates low-noise analog filtering and amplification circuits that preserve signal integrity for accurate position measurement. Buffered coaxial outputs on each channel provide short-circuit-protected access to conditioned transducer signals, enabling connection of oscilloscopes, data loggers, or portable vibration analyzers without disturbing the protection system. A 4-20 mA recorder output proportional to full-scale position is also provided for integration with plant historians or DCS systems.

Comprehensive Alarm and Protection Capabilities: User-programmable Alert and Danger setpoints allow precise protection thresholds tailored to specific machinery characteristics. The BENTLY NEVADA 3500/45 140072-04 continuously compares measured position values against these setpoints, generating discrete alarm signals when limits are exceeded. Alarm setpoint accuracy is maintained within 0.13% of the configured value, ensuring consistent and reliable protection decisions. Front-panel LEDs indicate channel OK, TX/RX activity, and Bypass status for rapid visual assessment of module operation.
