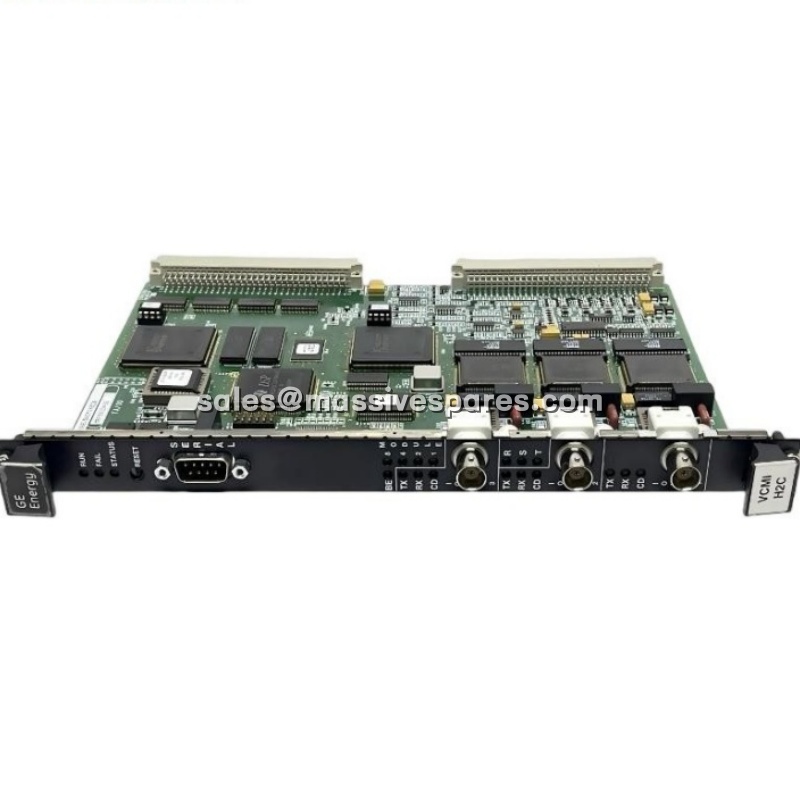

GE IS215VCMIH2CB VME Bus Master Controller Mark VI TMR Communication Board

Description

Application Scenarios

In a combined-cycle power plant, a Frame 7FA gas turbine’s Mark VI control system operates in Triple Modular Redundant (TMR) configuration. Three separate controller racks—designated R, S, and T—each house a IS215VCMIH2CB board. These three VCMI modules exchange turbine state data over the IONet coax network at a rigid 20 ms heartbeat. When one channel produces an anomalous fuel stroke reference reading due to sensor drift, the other two IS215VCMIH2CB boards’ voting logic overrides the faulty channel before it can trigger a false trip. The result: the turbine continues generating power, and the maintenance team receives a diagnostic flag to inspect the suspect sensor during the next planned outage.

In a petrochemical plant’s steam turbine compressor train, a IS215VCMIH2CB serves as the communication bridge between the local VME control rack and a remotely mounted I/O expansion rack 80 meters away. Without this board, the plant would need to route individual signal cables for every sensor and actuator back to the main control room—a costly and noise-prone proposition. Instead, the IS215VCMIH2CB packages I/O data onto a single coax IONet connection, maintaining deterministic 10 Mbps communication with channel-to-channel isolation rated at 1500 V AC .

Parameter
