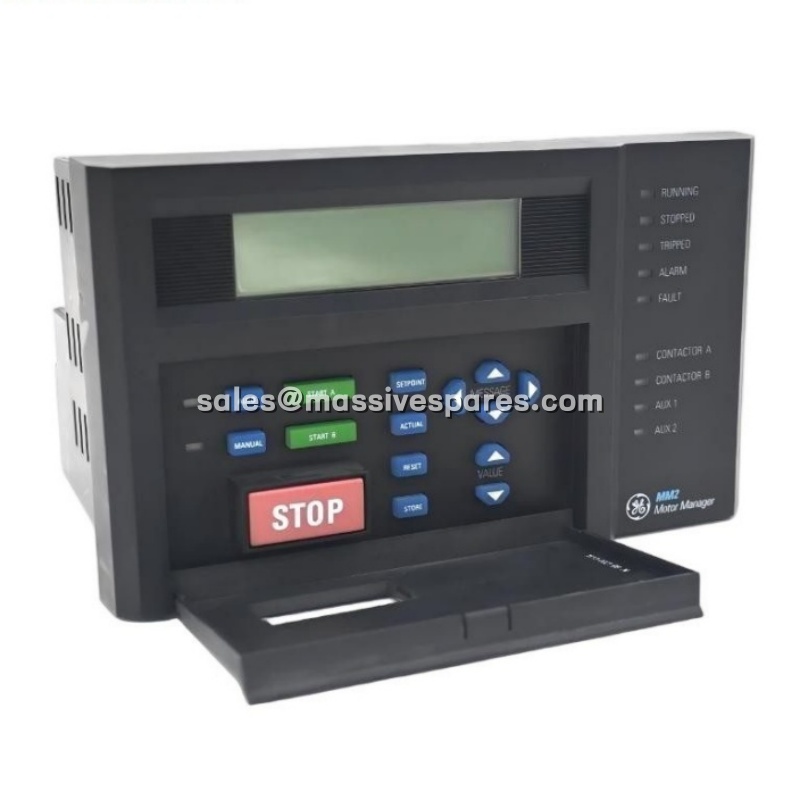

GE MMII-PD-1-2-120 Motor Protection Relay with 4-20mA Analog Input

Brand GE

Model GE MMII-PD-1-2-120

Product Overview

The GE MMII-PD-1-2-120 is a microprocessor-based intelligent motor management relay from the GE Multilin Motor Manager II (MMII) series, engineered to deliver comprehensive protection, real-time monitoring, and control for low-voltage three-phase AC induction motors. As a dedicated motor protection and management device, the GE MMII-PD-1-2-120 consolidates thermal overload protection, phase fault detection, ground fault monitoring, and motor control logic into a single panel-mounted unit. It replaces traditional discrete protection components—thermal overload blocks, phase monitors, and separate control relays—with a solid-state digital solution that provides superior accuracy, diagnostic capability, and communication flexibility.

Within the Motor Manager II platform, the GE MMII-PD-1-2-120 serves as a central intelligence hub for motor control centers (MCCs) and industrial panels. It continuously monitors three-phase current inputs through external current transformers (CTs), calculates thermal capacity used based on actual load and ambient conditions, and executes protection algorithms that prevent motor burnout from overload, phase unbalance, locked rotor, and ground fault conditions. The “120” suffix in the model designation specifies a 120 VAC control power supply, the standard control voltage for North American industrial panels.

Equipped with a front-panel LCD display and keypad, the GE MMII-PD-1-2-120 enables local configuration, real-time parameter viewing, and fault diagnostics without requiring external programming tools. Integrated RS-485 Modbus RTU communication allows the relay to interface seamlessly with PLC, DCS, and SCADA systems for centralized monitoring and remote management. This combination of integrated protection, local usability, and digital connectivity positions the GE MMII-PD-1-2-120 as a practical solution for facilities seeking to

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	GE MMII-PD-1-2-120
Manufacturer	GE (General Electric) / Multilin
Product Type	Intelligent Motor Management Relay
Series	Motor Manager II (MMII)
Control Power Supply	120 VAC, 50/60 Hz
Communication Interface	RS-485, Modbus RTU, 1200–19200 bps
Analog Process Input	4–20 mA
Relay Contact Rating	10 A @ 250 VAC (resistive load)
Protection Functions	I²t Thermal Overload, Phase Unbalance, Phase Loss, Ground Fault, Rotor Stall, Contactor Monitoring
Human Interface	Front LCD Display, Keypad, LED Indicators
Configuration Software	EnerVista MMII
Mounting Method	Panel Mount (7-inch cutout)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5%–95% Non-Condensing
Dimensions (H×W×D)	Approximately 112 mm × 188 mm × 127 mm
Net Weight	Approximately 1.36 kg
Compliance	UL, CSA, CE Industrial Standards

Main Features and Advantages

The GE MMII-PD-1-2-120 delivers a comprehensive protection and management feature set that addresses the operational realities of industrial motor control.

Adaptive Thermal Modeling: The GE MMII-PD-1-2-120 employs a thermal model that continuously calculates motor thermal capacity based on actual current draw and ambient conditions. Unlike bimetal overload relays that operate on a fixed trip curve, this adaptive approach accounts for the motor’s actual operating history, preventing nuisance trips on legitimate overloads while ensuring rapid response to genuine thermal hazards. The relay tracks thermal capacity used and blocks restart until the motor has cooled sufficiently, protecting windings from cumulative heat damage.

Comprehensive Fault Protection: Beyond thermal overload, the GE MMII-PD-1-2-120 monitors for phase unbalance and phase loss—conditions that can rapidly overheat motor windings even when total current remains within nominal limits. Ground fault detection identifies leakage current to the motor frame, providing early warning of insulation degradation. Rotor stall and jam protection detect mechanical binding that drives current to locked-rotor levels, enabling rapid trip action before damage occurs.

Local Interface and Diagnostics: The front-panel LCD display and keypad on the GE MMII-PD-1-2-120 provide immediate access to live metering data including phase currents, thermal capacity percentage, and analog input values. Fault records and event logs capture pre-trip conditions and trip causes, supporting rapid troubleshooting without requiring connection to external software. LED indicators for Run, Stop, Trip, Alarm, Fault, and contactor status provide at-a-glance system health assessment.

Digital Communication: The GE MMII-PD-1-2-120 features standard RS-485 Modbus RTU communication, enabling integration with plant control systems for remote monitoring, configuration, and data collection. This connectivity transforms the relay from a standalone protection device into a node within a larger asset management architecture, supporting predictive maintenance strategies through trend analysis of motor operating parameters.
