Product Overview

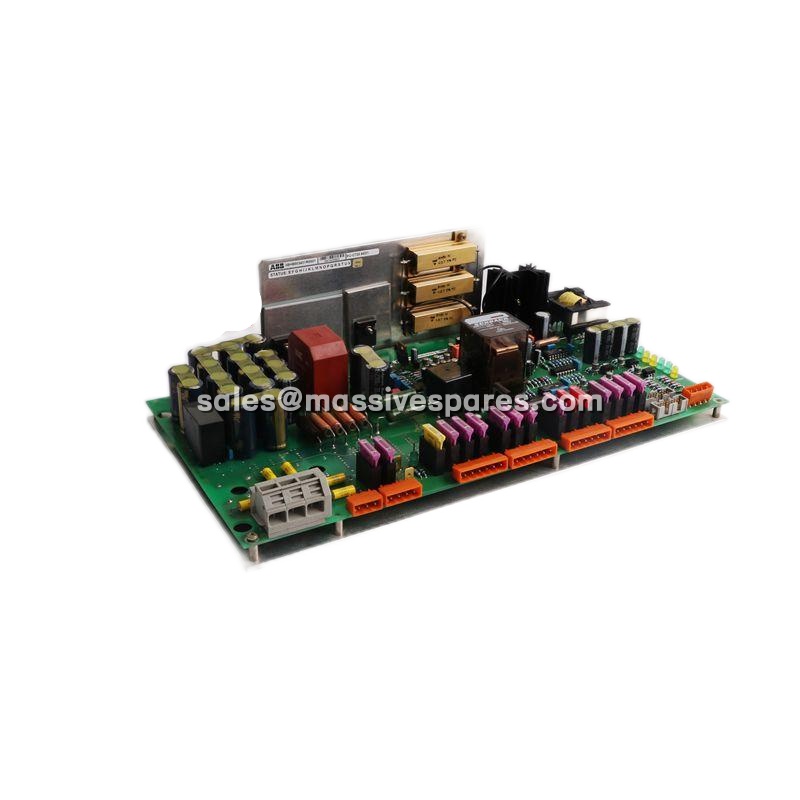

The ABB 6205BZ10100 is an SC D/F-type control submodule and digital I/O interface board from ABB‘s 6205 series, engineered specifically for insertion into the RMIO (Rectifier/Motor/Inverter/Option) rack of ACS600, ACS800, and ACS1000 series AC drive systems . As a dual-role expansion card, the ABB 6205BZ10100 processes discrete binary signals from the field—including start/stop commands, fault resets, and limit-switch feedback—while providing conditioned I/O to the drive’s main control board . The “SC D/F” designation reflects the module’s configurable nature: SC (System Control) for logic processing, D (Digital) for I/O expansion, and F (Fieldbus) for communication protocols such as Profibus-DP or Modbus RTU .
The ABB 6205BZ10100 functions as a critical interface bridge between field instruments and the drive’s control processor, converting physical signals into digital logic with millisecond-level response times . This capability makes it indispensable for integrating variable-speed drives into DCS, PLC, or hard-wired relay-based control schemes where reliable signal acquisition and command execution are non-negotiable . The module communicates natively over the RMIO high-speed backplane, delivering sub-millisecond latency between field contact closures and the drive’s internal function blocks .
The ABB 6205BZ10100K variant represents an enhanced protection version of the same module, featuring conformal coating that provides anti-corrosion and moisture-resistance properties for deployment in harsh industrial environments . Both models share identical electrical performance, ensuring drop-in compatibility for replacement scenarios . Whether deployed in petrochemical plants, water treatment facilities, or pulp and paper mills, the ABB 6205BZ10100 series delivers the reliable I/O integrity that keeps critical drive systems operational.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 6205BZ10100 / 6205BZ10100K |
| Manufacturer | ABB (Sweden/Switzerland) |
| Product Type | SC D/F Control Submodule / Digital I/O Interface Board |
| Compatible Systems | ABB ACS600, ACS800, ACS1000 Drive RMIO Rack |
| Digital Inputs | 6–16 opto-isolated inputs (24 V DC, sink/source configurable) |
| Digital Outputs | 2–4 relay or transistor outputs (2A @ 30V DC / 250V AC typical) |
| Communication Interface | RS-485 / Modbus RTU; optional PROFIBUS-DP |
| Backplane Power | +5V DC / +24V DC via RMIO backplane |
| Isolation | Optical isolation ≥1500V AC test |
| Operating Temperature | -25°C to +60°C (storage: -40°C to +85°C) |
| Dimensions (Ref.) | Approx. 152 × 102 × 25.4 mm |
| Weight | 1.4–1.6 kg |
| Mounting | Plug-in submodule onto RMIO motherboard; screw-retained |
Main Features and Advantages
Tight Coupling with Drive Function Blocks via RMIO Backplane: The ABB 6205BZ10100 is not a generic add-on card—it is an integral part of ABB’s distributed drive-control architecture. Executing I/O scanning and local logic in tight synchronization with the drive microprocessor, the module communicates natively over the RMIO high-speed parallel/serial backplane, delivering sub-millisecond latency between a field contact closure and the drive‘s internal Start/Stop function block . This eliminates the scan-time lag inherent in externally wired PLC-connected I/O, which is especially valuable for safety-related drive interlocks and fast cycle applications such as winder tension control .
Comprehensive I/O Capacity with Per-Channel Diagnostics: The ABB 6205BZ10100 provides 6–16 optically isolated digital inputs and 2–4 relay or transistor outputs, with each I/O channel featuring a dedicated LED status indicator . The drive‘s human-machine interface can report individual channel states and wiring faults, allowing technicians to confirm proper wiring at the panel without a multimeter . Optical isolation between field-side I/O and drive logic (≥1500V AC test) protects the drive from electrical noise and voltage spikes .
Enhanced Protection with K Variant: The ABB 6205BZ10100K features conformal coating that provides anti-corrosion and enhanced moisture-resistance properties, making it suitable for deployment in humid, corrosive, or dusty environments where standard electronic boards might degrade prematurely . This protection extends the module’s operational lifespan in challenging industrial settings including offshore platforms, chemical processing areas, and water treatment facilities.
Hot-Swap Capability and Reduced Wiring Complexity: Swapping the ABB 6205BZ10100 requires no re-termination of field wires—only removal of the submodule—significantly accelerating replacement procedures . In retrofit scenarios, the module reads local pushbutton station dry-contact signals via its optically isolated inputs and drives Run Permissive and Fault Reset relays through its outputs, eliminating external relay coils and reducing panel wiring by up to 30% .
