Product Overview

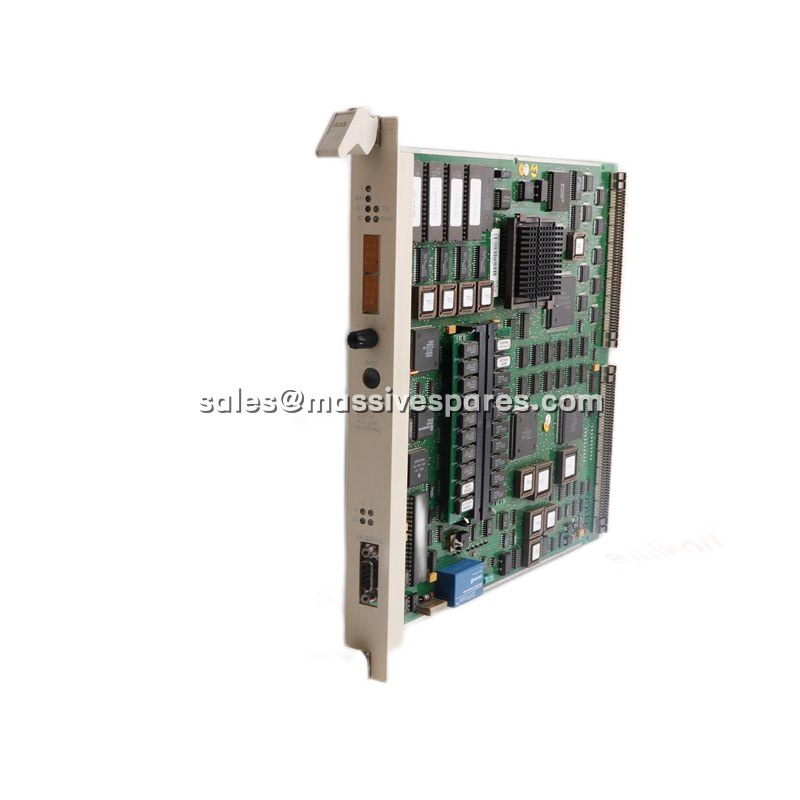

The ABB 6227BZ10200 is a dual-channel field bus communication module engineered for ABB‘s SC Controller (System Controller) platform within large-scale distributed control systems (DCS) such as Symphony Control. As the physical bridge between the controller backplane and external field bus networks, the ABB 6227BZ10200 enables the controller to communicate with remote I/O stations, intelligent field instruments, variable frequency drives, and third-party automation devices over digital bus protocols. This module eliminates the need for extensive point-to-point copper wiring, replacing thousands of individual 4-20mA signal cables with a single digital communication pathway that carries data for hundreds of field devices .
In the SC Controller architecture, the ABB 6227BZ10200 functions as a dedicated communication interface, not as an I/O signal processor. The controller CPU handles all control logic and regulatory functions, while the ABB 6227BZ10200 manages the protocol-level data exchange between the controller backplane and the field bus network. Its two independent channels provide exceptional flexibility in network design: each channel can operate a separate field bus segment, allowing the module to serve two distinct zones of field devices simultaneously, or the dual channels can be configured for redundancy, where one channel takes over automatically if the other fails, ensuring uninterrupted communication for critical process areas .
The ABB 6227BZ10200F represents a reinforced variant of the same module, offering enhanced bus load capacity and improved resistance to high-frequency electromagnetic interference (EMI). The “F” suffix designates a version specifically optimized for installations where nearby high-power equipment—such as large variable frequency drives or switching power supplies—generates significant electrical noise that could otherwise disrupt field bus communication. Both the standard ABB 6227BZ10200 and the enhanced ABB 6227BZ10200F share identical physical slots and pin definitions, making the F version a direct, drop-in upgrade replacement for demanding industrial environments .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 6227BZ10200 / ABB 6227BZ10200F |
| Manufacturer | ABB |
| Product Type | SC Controller Field Bus Module, 2-Channel |
| System Compatibility | ABB SC Controller / Symphony Control DCS Platform |
| Channel Count | 2 independent channels |
| Communication Protocol | Profibus PA (Profibus-DP compatible configurations) |
| Communication Speed | Up to 1 Mbps |
| Power Supply | 24V DC |
| Power Consumption | Less than 1W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | Less than 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA |
| F Version Feature | Enhanced bus load capacity and improved high-frequency EMI resistance |
| Redundancy Support | Yes (module-level or channel-level redundancy configuration) |
Main Features and Advantages
Dual Independent Communication Channels: The ABB 6227BZ10200 provides two completely independent field bus channels within a single module slot. Each channel can operate a separate bus segment, allowing the controller to manage two distinct network zones without additional hardware. This capability is particularly valuable in large process plants where field devices are distributed across multiple process units or buildings. Alternatively, the two channels can be configured for redundant operation, providing automatic failover protection for critical communication pathways where downtime would halt production .
Enhanced EMI Resistance in F Version: The ABB 6227BZ10200F variant is specifically engineered to maintain reliable communication in electrically noisy industrial environments. Its reinforced design offers improved resistance to high-frequency electromagnetic interference, making it suitable for installations near large motor drives, rectifiers, or other high-power switching equipment. In facilities where the standard module might experience intermittent bus errors due to electrical noise, the ABB 6227BZ10200F provides the additional margin needed for stable, error-free data transmission .
Direct Drop-In Upgrade Compatibility: The ABB 6227BZ10200F shares identical physical dimensions, slot requirements, and pin definitions with the standard ABB 6227BZ10200. Existing installations can upgrade to the enhanced F version without any mechanical modification, rewiring, or software reconfiguration beyond verifying the bus address settings. This backward compatibility simplifies maintenance planning and allows plants to standardize on the F variant for improved reliability across all SC Controller installations .
Low Power Consumption and Wide Temperature Range: The ABB 6227BZ10200 operates on 24V DC with power consumption under 1W, minimizing load on cabinet power supplies and heat generation within the control cabinet. Its operating temperature range of -20°C to +60°C accommodates installations in a broad spectrum of industrial environments, from climate-controlled control rooms to partially conditioned electrical rooms. The module‘s low thermal dissipation also contributes to extended service life and reduced cooling requirements .
Comprehensive Diagnostic Visibility: The ABB 6227BZ10200 incorporates front-panel status indicators that provide immediate visual feedback on module health and bus activity. Per-channel LEDs for Bus Active and TX/RX status allow maintenance personnel to verify normal data exchange at a glance. A high-frequency flashing green light indicates healthy communication, while absence of activity or fault indications prompt further investigation. These diagnostics enable rapid troubleshooting without requiring external test equipment or software tools .
