Description

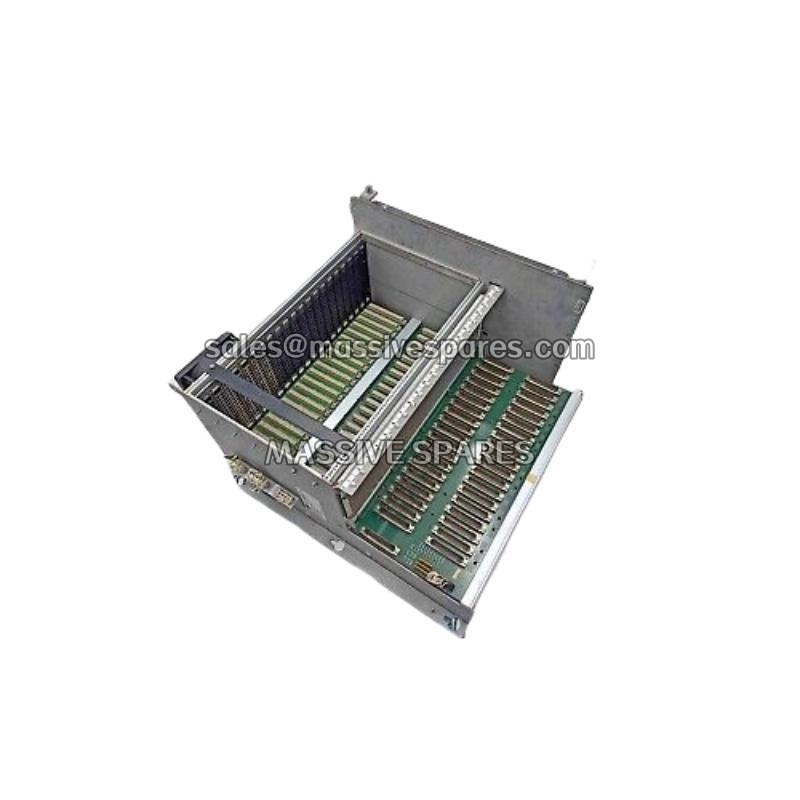

The 259B2460BTG2 is a GE controller rack assembly developed for the Mark VI Speedtronic turbine control platform. Also referenced by the ordering code 512AZSPBPAC-100, it is described as an ICS rack assembly with EMI, VMIC and RES features.
The 259B2460BTG2 provides the mechanical housing, module guides, backplane interconnect and grounding structure required by controller, communication and I/O boards. It does not replace the intelligence of those modules; rather, it preserves the electrical and mechanical environment that allows them to work together reliably.
Application Scenarios
A combined-cycle power plant experienced intermittent alarms in a gas-turbine protection node. The fault did not appear continuously, which made it difficult to identify through software diagnostics alone. Vibration, connector condition, grounding and backplane continuity were investigated before the control logic was changed.
The maintenance team identified a degraded controller rack and replaced it with a verified GE 259B2460BTG2. Existing compatible Mark VI modules were transferred to the replacement chassis, and the control-node wiring was checked systematically. Although a rack replacement does not automatically cure every communication fault, restoring a stable mechanical platform and backplane interface removed one of the most difficult sources of intermittent failure: unreliable contact between the module and the system bus.
For turbine operators, the value of the 259B2460BTG2 is therefore preventive as well as corrective. A protection system must remain dependable during vibration, temperature changes, power transients and routine maintenance. A damaged or corroded rack can turn a normally stable control node into a source of unexplained trips, so keeping an inspected spare available is often more cost-effective than responding to an unplanned outage.
Parameter
| Main Parameters | Value / Description |
|---|---|
| Product Model | 259B2460BTG2 |
| Alternate Reference | 512AZSPBPAC-100 |
| Manufacturer | GE / GE Fanuc |
| Product Category | Controller rack / ICS rack assembly |
| System Platform | GE Mark VI Speedtronic turbine control |
| Bus Architecture | VMEbus |
| Assembly Features | EMI shielding, VMIC structure and RES features |
| Backplane Type | Passive backplane distribution |
| Electrical Input | 24 V DC nominal distribution; total current depends on installed modules |
| Form Factor | 19-inch rack-mount industrial chassis |
| Slot / Module Capacity | Must be confirmed against the fitted backplane board and the original equipment bill of materials |
| Mechanical Interface | Card guides, retention features and VME module connectors |
| Communication Support | Provided by installed controller, I/O and communication modules |
| Cooling Method | Chassis ventilation with module-specific forced-air cooling |
| Mounting Method | Secure mounting in a compatible control cabinet or 19-inch equipment rack |
| Dimensions | Published sources differ; confirm the actual width, depth and height from the unit nameplate and original cabinet drawing before ordering |
| Weight | Approximately 4–5 kg, depending on the fitted backplane and configuration |
| Operating Temperature | Published listings commonly state 0 °C to +60 °C, although some supplier references differ |
| Storage Temperature | Published references vary; confirm the value on the original nameplate and system manual |
| Humidity | 5% to 95% relative humidity, non-condensing, per several product listings |
| Grounding | Chassis grounding points for connection to the approved plant grounding system |
| Certifications | CE is frequently listed by suppliers; UL, CSA, IECEx, ATEX and seismic ratings must be confirmed from the unit label and project documentation |
| Origin | United States |
