Application Scenario
In a small-parts job shop, a FANUC Series 18i-controlled turning center driving its X-axis through a β2/3000 servo motor began reporting intermittent SV (servo amplifier) alarms. The operator first noticed a faint acrid smell from the cabinet, then a hard fault that took the axis — and the whole machine — offline. The machinist had a queue of stainless-steel fittings waiting, and every hour of spindle-down cost real money in missed ship dates.

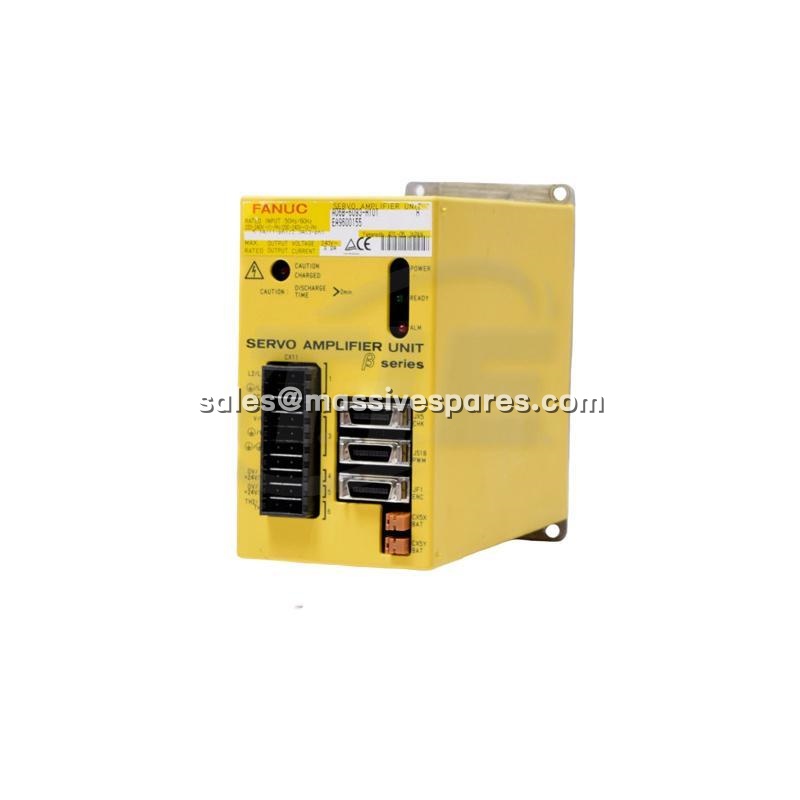

The service engineer traced the fault to the axis drive: a FANUC A06B-6093-H101 (SVU-12) in the classic 60 mm-wide Beta form factor. Because this amplifier is a self-contained unit with its own internal power supply, the swap was remarkably clean — no shared bus regeneration module to reconfigure, no separate power-stage re-cabling. The technician installed a fully tested exchange unit, verified the three-digit LED status display and cleared the alarm, and the turning center was back cutting within a single shift. The shop owner subsequently standardized the A06B-6093-H101 as a critical spare across every Beta-equipped machine. The lesson: in a legacy CNC cell, a single 60 mm amplifier can hold the entire production line hostage — keeping a verified one on the shelf is the cheapest insurance a machine shop can buy.
Parameters
| Main Parameters | Value / Description |
|---|---|
| Product Model | A06B-6093-H101 (also: A06B6093H101, SVU-12, SVU1-12) |
| Manufacturer | FANUC / GE FANUC (Japan / USA) |
| Product Category | AC Servo Amplifier Unit / Single-Axis Servo Drive |
| Series | FANUC β (Beta) Series |
| Model Designation | SVU-12 (also referenced as SVU1-12) |
| Control Axes | Single-axis (1 channel) |
| Rated Output Current | 3.2 A (12 A variant marking per BETA SVU-12 family) |
| Maximum Output Voltage | 240 VAC |
| Input Voltage | 220–240 VAC, 1-phase or 200–240 VAC, 3-phase |
| Input Current | 5.1 A (1-phase) / 3.2 A (3-phase) — note 2.3 A also referenced in some records; verify nameplate |
| Frequency | 50/60 Hz |
| Interface Type | Type B — hard-wired PWM (standard FANUC amplifier interface) |
| Compatible Motors | FANUC β-series servo motors: β1/3000, β2/3000 (b1, b2) |
| Control Modes | Speed control, torque control, position control |
| Internal Power Supply | Built-in — unit is electrically independent, no external power module required |
| Protection Features | Overcurrent, overvoltage, undervoltage, overload, overheat protection |
| Physical Width | 60 mm (Beta series, approx. 6.62 in / 172 mm length) |
| Weight | Approx. 1.08–2.0 kg (2.38 lbs; records vary slightly) |
| Cooling | Forced air (internal fan) + natural convection; air-cooled |
| Mounting | Panel / DIN-rail style; vertical or wall-mounted orientation |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +60 °C |
| Humidity | ≤ 90% RH, non-condensing |
| Compliance | VDE 0160, UL, CSA (Beta series design standard) |
| Status | Discontinued / legacy product; available exchange, refurbished, surplus |
Technical Principles and Innovative Values
- Innovation Point 1 — Built-In Power Supply Makes It a True “Unit.” Unlike modular servo amplifiers that draw regulated DC from a separate, shared power-supply module, the A06B-6093-H101 contains its own internal power supply. This makes the amplifier electrically self-contained and freely placeable anywhere on the machine tool — a decisive advantage for brownfield servicing, axis reconfiguration, and minimizing cabinet re-wiring .
- Innovation Point 2 — Type B Hard-Wired PWM Interface for Deterministic Control. The uses FANUC’s standard Type B PWM interface — a direct, hard-wired command path rather than a serial network. This gives the CNC control immediate, predictable authority over the motor with no protocol latency, which is exactly what precision machining demands during high-speed contouring and tool changes .
- Innovation Point 3 — 60% Smaller Footprint Than Its Predecessor. The Beta series servo amplifier was engineered for a footprint and volume reduced by approximately 60% versus the previous model. At roughly 60 mm wide, the A06B-6093-H101 frees valuable cabinet space and lowers system cost while retaining full single-axis positioning performance .
- Innovation Point 4 — Full Complement of Self-Protection. The amplifier integrates overcurrent, overvoltage, undervoltage, overload, and overheat protection. When a fault condition arises, it reacts immediately — limiting output or reporting an alarm — to protect both the expensive servo motor and the mechanical axis. This is why the three-digit LED display on the front of the drive is the first diagnostic stop when troubleshooting an SV alarm .
- Innovation Point 5 — Multi-Standard Safety Compliance. The Beta amplifier family was designed to conform to European VDE 0160, American UL, and Canadian CSA safety standards. That legacy of certification means the A06B-6093-H101 can remain in service in regulated plants without compromising on electrical safety .
