Application Scenarios
In a municipal wastewater treatment plant, critical process pumps operate continuously to maintain flow through primary clarifiers and aeration basins. A sudden pump motor failure during peak inflow can cause basin overflow within hours, triggering regulatory violations and emergency response costs. Plant engineers often discover motor degradation too late — thermal overload from sustained high ambient temperatures, undetected phase imbalance from upstream voltage sags, or gradual bearing wear that increases running current. The GE MMII-PD-1-2-120 addresses these pain points by continuously modeling motor thermal capacity, tracking current unbalance across all three phases, and logging fault events for trend analysis. When a phase drops out due to a blown upstream fuse, the relay trips within programmed time delays rather than allowing the motor to run single-phased, preventing stator winding burnout that would require weeks of lead time for replacement.
Parameter
| Parameter | Value/Description |
|---|---|

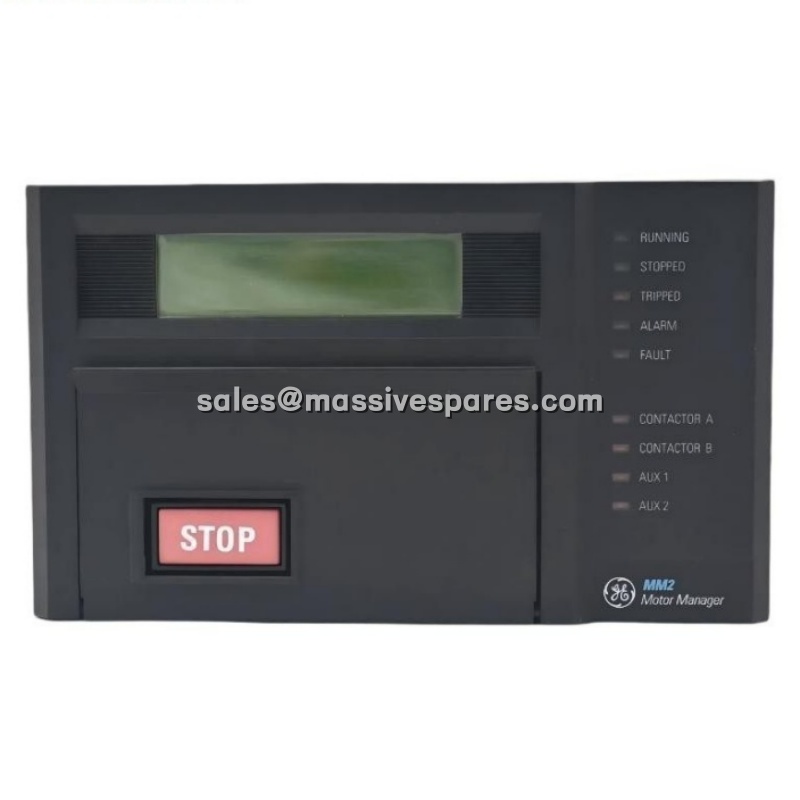

| Product Model | MMII-PD-1-2-120 |
| Manufacturer | GE (General Electric) / Multilin |
| Product Category | Intelligent Motor Management Relay / Motor Protection Relay |
| Control Supply Voltage | 120 VAC, 50/60 Hz — powers relay logic from standard control circuits |
| Communication Interface | RS-485, Modbus RTU, 1200–19200 bps — enables SCADA/DCS integration |
| Analog Process Input | 4–20 mA signal input for auxiliary process variables |
| Relay Contact Rating | 10 A @ 250 VAC (resistive load) |
| Protection Functions | Thermal overload (I²t), phase unbalance, phase loss, ground fault, stall/jam, contactor monitoring |
| Human Interface | Front LCD display, operation keypad, local emergency stop button |
| Mounting Method | Cabinet panel mounting with LCD display |
| Operating Temperature | 0°C to +60°C |
| Dimensions (H×W×D) | 112 mm × 188 mm × 127 mm |
| Weight | 1.36 kg |
