Product Overview

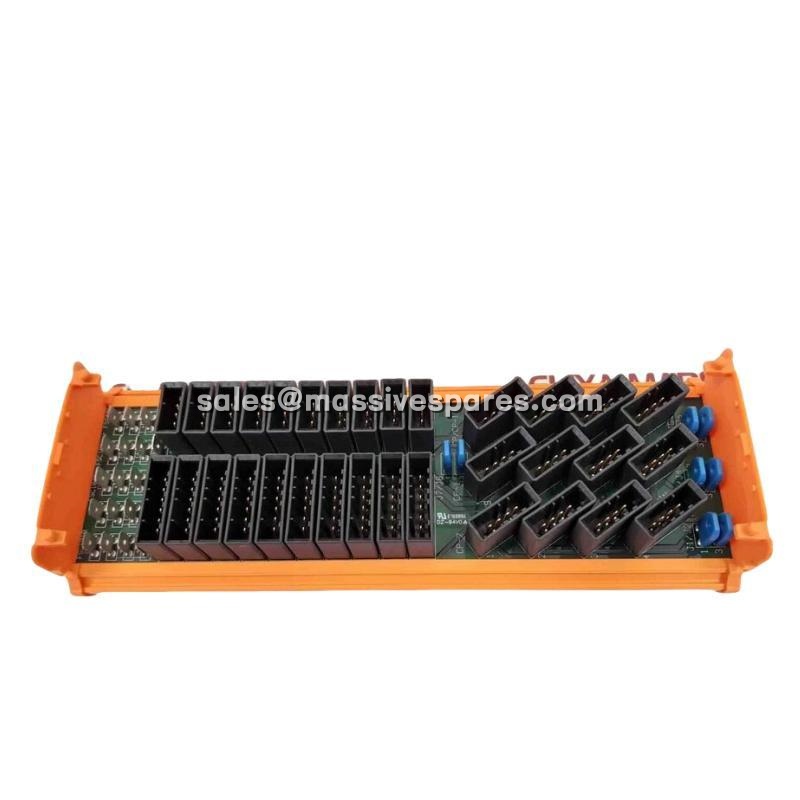

The Honeywell 10313/1/1 is a termination module engineered specifically for Honeywell’s Fail Safe Control (FSC) safety instrumented system platform. As a dedicated 5 Vdc and watchdog distribution module, the Honeywell 10313/1/1 serves as the central power and signal routing hub that connects the FSC central part to distributed I/O backplanes across single or multiple cabinet sections. Unlike general-purpose termination hardware, the Honeywell 10313/1/1 is purpose-built to distribute both the 5 Vdc logic power and the critical watchdog (WD) monitoring signals that ensure safety system integrity in FSC architectures .
The Honeywell 10313/1/1 provides an impressive array of connection facilities, including ten RCN connectors for redundant I/O backplanes (10315/1/1) and ten SCN connectors for non-redundant I/O backplanes (10314/1/1) . This comprehensive connectivity allows the Honeywell 10313/1/1 to support a wide range of FSC system configurations, from simple non-redundant central parts with non-redundant I/O to fully redundant architectures with redundant central parts and mixed redundant/non-redundant I/O distributed across multiple cabinets . The module also features direct connectors for watchdog repeaters and 10005/O/1 modules, as well as OUT/IN connectors for linking additional Honeywell 10313/1/1 modules in separate cabinet sections .
The Honeywell 10313/1/1 represents a critical infrastructure component within the FSC safety ecosystem, ensuring that both power delivery and watchdog monitoring signals reach every I/O rack with the reliability required for safety instrumented functions. Its universal snap-in facility for standard DIN EN rails (TS32/TS35) enables straightforward installation in FSC cabinets, while its robust construction and TÜV certification reflect its role in safety-critical applications .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | Honeywell 10313/1/1 |
| Manufacturer | Honeywell |
| Product Type | 5 Vdc & Watchdog Distribution Module (Termination Module) |
| System Compatibility | Honeywell FSC (Fail Safe Control) Safety Systems |
| Redundant I/O Connectors | 10 × RCN-1 to RCN-10 (for 10315/1/1 backplanes) |
| Non-Redundant I/O Connectors | 10 × SCN-1 to SCN-10 (for 10314/1/1 backplanes) |
| Power Input Fastons | FSC101/FSC102 (non-redundant), FSC101R CP-1/CP-2 (redundant) |
| Watchdog Repeater Connectors | WDR, WDR-1 (X2/X6), WDR-2 (X3/X7) |
| Max Current (Faston Pin) | 4 A |
| Max Current (I/O Connector Pin) | 2 A |
| Dimensions | 240 × 87 × 60 mm (9.45 × 3.43 × 2.36 in) |
| Weight | Approximately 0.15–0.2 kg |
| Mounting | DIN rail (TS32 / TS35 × 7.5), 241 mm rail length |
| Operating Temperature | -25°C to +70°C |
| Certifications | CE and TÜV certified (UL pending) |
