Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

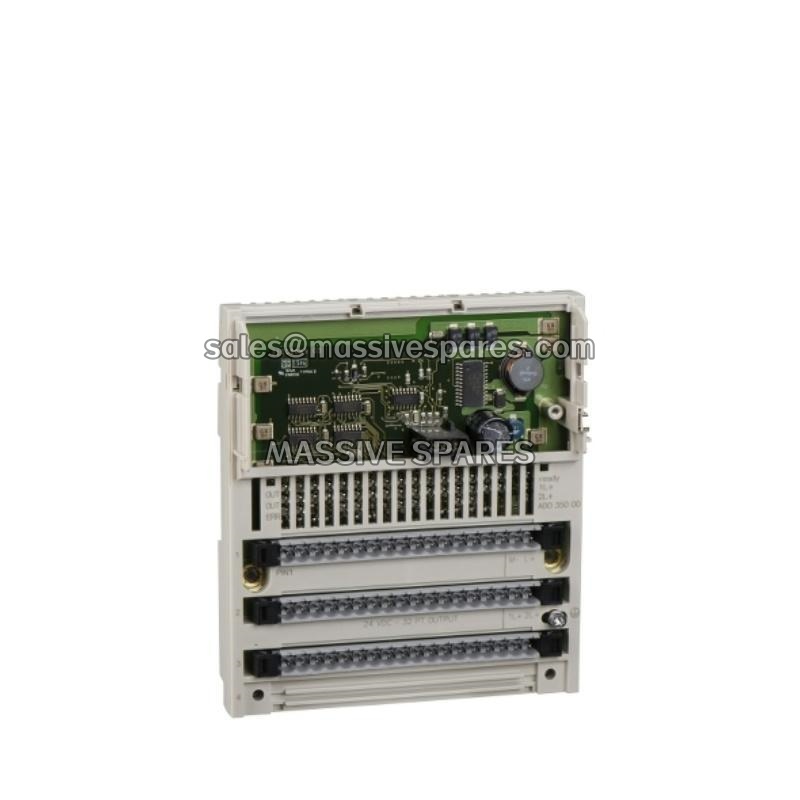

| Product Model | 170ADO35000 |
| Manufacturer | Schneider Electric |
| Product Type | Discrete Output Base DC (Solid State) |
| Platform | Modicon Momentum Automation Platform |
| Output Channels | 32 (2 groups of 16), solid state switch |
| Output Voltage | 24 V DC nominal (rated operational voltage) |
| Load Current | 0.5 A per channel, 8 A per group, 16 A per module |
| Response Time | 0.1 ms (0→1 and 1→0) |
| Leakage Current | < 1 mA at 24 V DC |
| Voltage Drop | < 0.5 V at 0.5 A at state 1 |
| Surge Current | 5 A for 1 ms |
| Protection | Electronic short-circuit and overload protection on outputs |
| Power Dissipation | 6 W typical, 7.5 W maximum |
| Current Consumption | 250 mA at 24 V DC |
| Diagnostics | 32 channel-status LEDs on front panel |
| Protective Treatment | TC (conformal coated) |
| Compliance | CE marked, RoHS / Green Premium |
| Country of Origin | Indonesia |
Main Features and Advantages
High-density solid state switching: With 32 transistor-based outputs packaged in a single standard Momentum I/O base, the Schneider Electric 170ADO35000 maximises cabinet space and reduces total module count in compact installations. Solid state technology eliminates the mechanical wear associated with relay contacts, delivering silent operation, unlimited switching life, and consistent performance in high-cycle applications such as motor starters, valve solenoids, and interlock logic where electromechanical relays would fatigue over time.
Robust electronic protection: Every output on the 170ADO35000 is protected by onboard electronic circuitry that guards against both short-circuit and overload conditions, automatically limiting current without user-replaceable fuses and restoring operation once the fault is cleared. Surge tolerance of 5 A for 1 ms absorbs inductive transients from contactor coils and solenoid loads, while the <1 mA leakage current ensures that downstream loads with low holding currents do not glimmer or falsely actuate when the channel is off.
Fast and deterministic response: Both turn-on and turn-off response times are rated at 0.1 ms, an order of magnitude faster than typical discrete output modules, making the Schneider 170ADO35000 well suited to high-speed sequencing, coordinated machinery control, and time-critical interlock logic where millisecond-level precision directly impacts process quality and throughput.
Instant visual diagnostics: The front panel carries 32 dedicated green channel-status LEDs, giving maintenance personnel immediate point-level feedback during commissioning, changeover, and troubleshooting. Combined with the compact Momentum format, this reduces mean time to repair and allows operators to verify output states at a glance without opening programming software.
Environmentally resilient construction: The 170ADO35000 is finished with TC protective conformal coating, providing resistance to moisture, dust, and corrosive atmospheres commonly encountered in wastewater plants, food and beverage facilities, and coastal or marine installations. CE marking and RoHS / Green Premium compliance support sustainable procurement and simplify deployment in regulated global markets, while the module’s Momentum architecture allows direct pairing with any Momentum communication adapter for flexible network integration.
