Application Scenarios
In a petrochemical refinery, the Emergency Shutdown (ESD) system continuously monitors process conditions—pressure, temperature, flow—and executes protective actions when unsafe conditions arise. This safety loop depends entirely on the Tricon SIS operating without interruption. A power failure in the main chassis would disable the entire safety function, leaving the plant vulnerable to catastrophic process upsets.

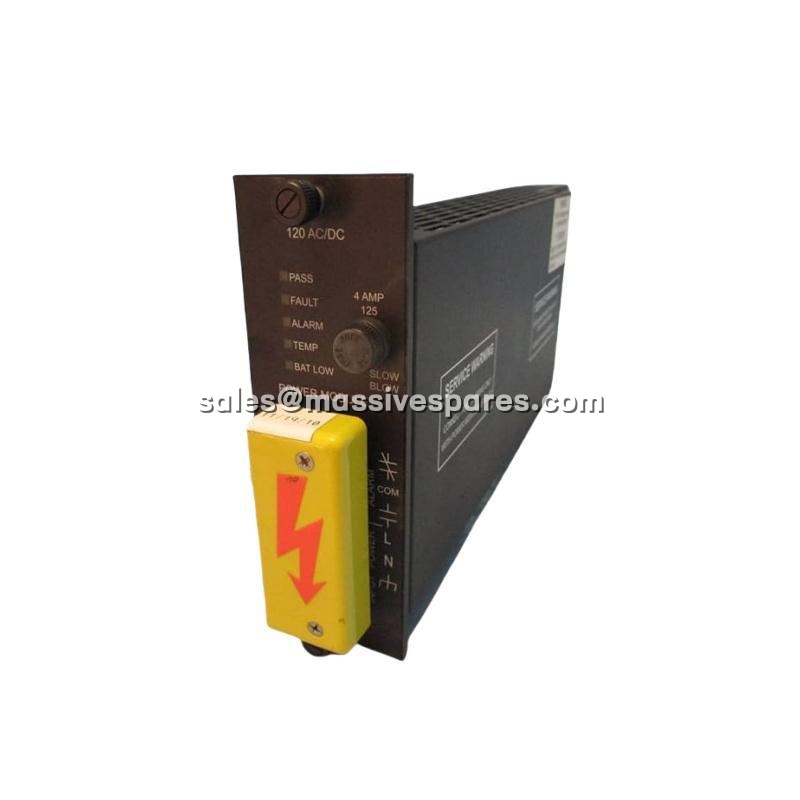

The Triconex 8300A addresses this vulnerability directly. Installed in the dedicated power slots of the Tricon main chassis, the 8300A converts 115VAC/DC input into clean, stable DC power for the TMR processors and I/O modules . When paired with a redundant 8300A module, the system achieves N+1 power redundancy—if one module fails, the remaining unit seamlessly assumes the full load without interrupting safety logic execution . The module’s integrated NO/C/NC alarm relay contacts provide hardwired fault notification to the plant’s DCS or alarm panel, ensuring operators receive immediate notification even if the TriBus communication network is compromised .
In another scenario, a natural gas processing facility uses Triconex 8300A modules to power the main chassis hosting fire and gas (F&G) detection logic. The module’s hot-swap capability allows maintenance technicians to replace a degraded power supply during normal plant operation, eliminating the need for costly shutdowns during planned maintenance .
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 8300A |
| Manufacturer | Triconex (Schneider Electric / Invensys) |
| Product Category | Main Chassis Power Supply Module |
| System Platform | Tricon Safety Instrumented System (SIS) / TMR Controller |
| Input Voltage | 115VAC / 115VDC |
| Output Voltage | Internal Backplane Power (5VDC, 24VDC) |
| Alarm Outputs | NO, C, NC Relay Contacts |
| Redundancy Mode | N+1 / Dual-Redundant, Load Sharing |
| Maintenance Mode | Hot-Swap (Online Replacement) |
| Safety Certification | SIL 3 (IEC 61508 / IEC 61511) |
| Operating Temperature | Industrial Grade |
| Compatible Chassis | Tricon Low-Density Main Chassis |
Technical Principles and Innovative Values
Triple Modular Redundant Power Architecture: The 8300A operates within a TMR power framework where two or more identical modules share the chassis load. Each module is designed to carry the full system load independently, ensuring that a single module failure does not degrade safety system availability .
Hardwired Fault Notification: Unlike software-based diagnostics that rely on network communication, the 8300A’s NO/C/NC alarm relay contacts provide a fail-safe, hardwired method to alert operators of power supply faults. This ensures fault visibility even if the controller’s communication network is unavailable .
Hot-Swap Maintenance Capability: The 8300A supports online replacement without system shutdown. When a non-critical fault occurs or a module reaches end of life, maintenance personnel can safely extract and replace the unit while the redundant module maintains full power to the chassis .
Input Voltage Isolation and Protection: The 8300A incorporates galvanic isolation to decouple input line transients from the system DC distribution bus. Internal monitoring circuitry prevents under-voltage conditions from propagating to the safety processors, allowing redundant units to compensate and maintain the logic solver’s operational state .
