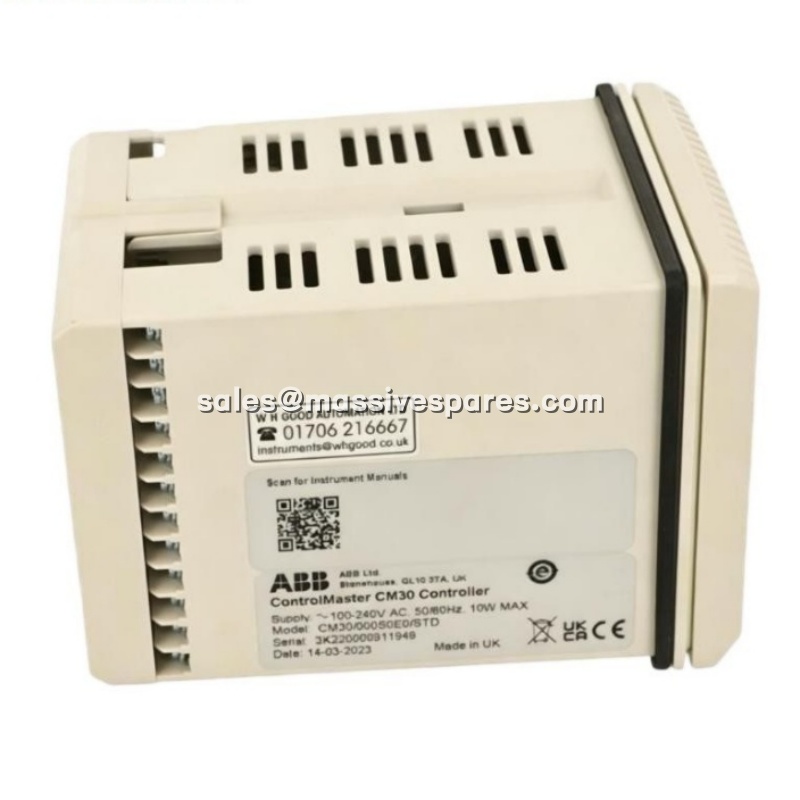

ABB CM30 ControlMaster Universal PID Process Controller – 1/4 DIN with Color TFT Display

Brand ABB

Model ABB CM30

Product Overview

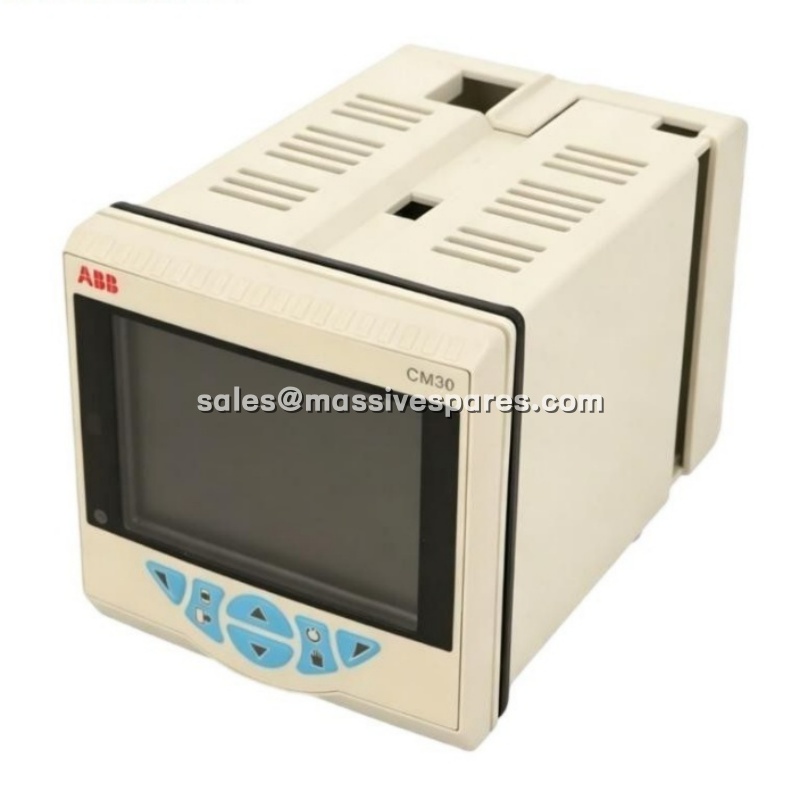

The ABB CM30 is a highly versatile, 1/4 DIN universal PID process controller belonging to the ControlMaster CM30 series, designed for precise regulation of temperature, pressure, flow, level, and other critical process variables across a wide range of industrial applications. The ABB CM30 combines advanced control algorithms with an intuitive operator interface, featuring a full-color 9 cm (3.5 in.) TFT display that presents detailed process information clearly without the need for difficult-to-read scrolling displays. As a scalable solution in both hardware and software functionality, the ABB CM30 can be configured to meet the demands of virtually any process control application, from simple single-loop control to complex advanced control strategies.

The ABB CM30 incorporates powerful control functions including adaptive control, math operations, logic sequencing, and totalization, providing problem-solving flexibility that makes it suitable for demanding process applications. The controller supports auto-tuning capabilities that automatically adjust PID parameters based on system response, optimizing control performance without manual intervention. Standard features include universal process inputs, configurable analog and digital outputs, and relay contacts for alarm and control functions. The ABB CM30 can be fully configured via easy-to-navigate front panel menus or PC configuration software, enabling rapid commissioning and subsequent tuning through advanced autotune functionality.

With MODBUS and Ethernet communication options, the ABB CM30 integrates seamlessly into larger control systems for remote monitoring and data acquisition. The controller features a compact front face measuring 97 mm × 97 mm with a depth of 121 mm behind the panel, constructed from glass-filled polycarbonate with IP66/NEMA 4X front protection. Weighing just 0.5 kg, the ABB CM30 delivers robust performance in a space-efficient package, making it an ideal choice for panel-mounted process control applications where reliability and precision are paramount.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	CM30 (ControlMaster Series)
Manufacturer	ABB
Product Type	Universal PID Process Controller
Form Factor	1/4 DIN, Panel Mounted
Display	Full-Color TFT, 9 cm (3.5 in.)
Dimensions (Front)	97 mm × 97 mm × 121 mm (depth behind panel)
Weight	0.5 kg (1.1 lb)
Construction Material	Glass-Filled Polycarbonate
Power Supply	100–240 V AC ±10%, 50/60 Hz (90–264 V AC); Optional 10–36 V DC
Power Consumption	10 W Maximum
Analog Inputs	2 Universal Process Inputs (1 standard, 1 optional); 2 Non-Universal (1 standard, 1 optional)
Analog Outputs	2 Configurable as Analog or Digital Pulse; 0–20 mA, 750 Ω max load, 0.25% accuracy
Relay Outputs	4 Total (1 standard, 3 optional) for CM30; 5 A, 240 V ratings
Digital I/O	6 Total (2 standard) for CM30
Communication	MODBUS, Ethernet (optional)
Operating Temperature	Suitable for industrial environments
Front Protection	IP66 / NEMA 4X
Rear Protection	IP20
Certifications	CE, UL, cUL compliant; IEC 61010-1 safety standards

Main Features and Advantages

The ABB CM30 delivers a comprehensive suite of control capabilities that distinguish it as a premier choice for universal process control applications.

Advanced Control Algorithms: The ABB CM30 supports a full range of control strategies including standard PID, auto-tuning, feedforward control, cascade control, ratio control, and split-range control. These advanced functions enable the controller to handle complex processes where simple PID regulation is insufficient. For blending applications, the ratio control feature maintains precise proportions between multiple process variables, while cascade control allows hierarchical management of multiple loops where one controller’s output serves as the setpoint for another.

Intuitive Full-Color Display and Operator Interface: The ABB CM30 features a 9 cm full-color TFT display that presents process details, alarm messages, and diagnostic information in clear full text. The front panel includes navigation keys for menu access, setpoint selection, auto/manual mode switching, and programmable soft keys. This intuitive interface simplifies configuration and operation, reducing training requirements and minimizing operator errors.

Flexible Scalability and I/O Configuration: The ABB CM30 is highly scalable in both hardware and software functionality, allowing users to specify the exact configuration needed for their application. The modular design supports easy expansion with additional I/O modules and function keys, each adding templates and functionality while retaining previous capabilities. This scalability ensures the controller can grow with evolving process requirements without requiring complete replacement.

Comprehensive Alarm Management and Data Logging: The ABB CM30 provides detailed alarm management capabilities with configurable thresholds and notifications for various process conditions. Data logging and trending functions allow process data to be recorded over time, facilitating performance analysis and informed decision-making for process optimization. These diagnostic capabilities help identify developing issues before they escalate into production disruptions.
