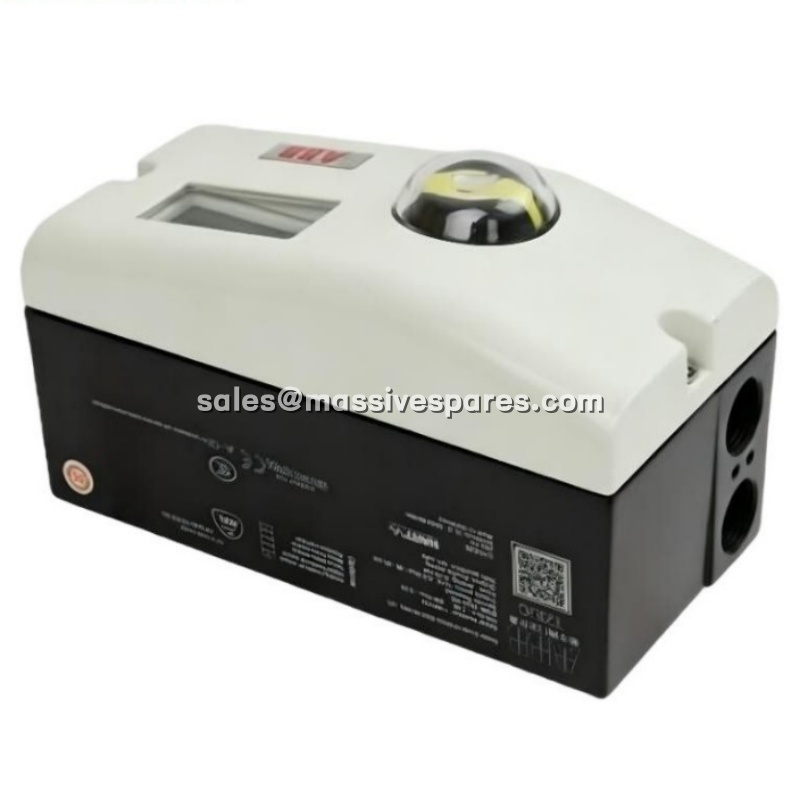

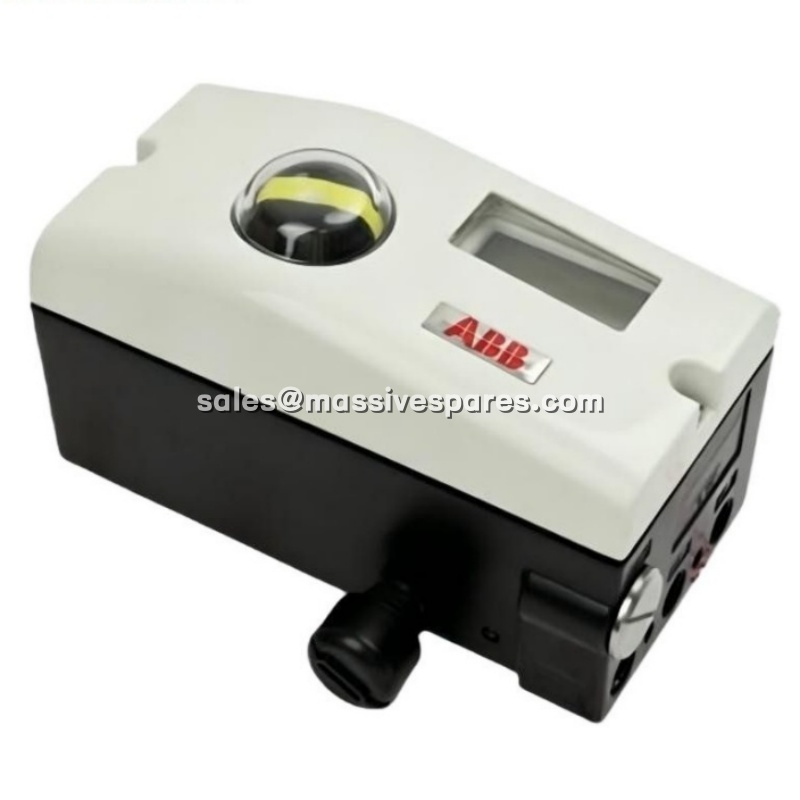

ABB V18345-2010521001 TZIDC Intelligent Valve Positioner

Brand ABB

Model ABB V18345-2010521001 TZIDC

Product Overview

The ABB V18345-2010521001 is an intelligent electro-pneumatic valve positioner belonging to the TZIDC series, a widely recognized platform for precise valve control in industrial process automation. As a core component in the control loop, the ABB V18345-2010521001 receives a 4-20 mA setpoint signal from a DCS or PLC, compares it against the actual valve stem position, and adjusts the pneumatic output to drive the actuator until the valve reaches the commanded opening. This closed-loop positioning ensures accurate flow regulation and repeatable performance across varying process conditions.

The ABB V18345-2010521001 is configured with a specific set of option codes that define its behavior and capabilities. The housing is a varnished aluminum enclosure equipped with a mechanical position indicator, allowing visual confirmation of valve position even when the LCD display is not accessible. The pneumatic output stage is configured for double-acting actuators, and the safety position logic is set to “Fail Freeze”—meaning that upon loss of electrical power or air supply, the valve remains locked in its current position rather than moving to a predefined open or closed state. This configuration is particularly valuable in processes where sudden valve movement during a failure could cause hazardous conditions or product quality issues.

The ABB V18345-2010521001 includes a plug-in analog position feedback module that transmits a 4-20 mA signal proportional to valve position back to the control system, providing real-time confirmation of valve status without additional external hardware. The positioner supports linear stroke ranges from 20 to 150 mm and rotary actuation up to 125 degrees, making it adaptable to a broad range of valve types and sizes.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	V18345-2010521001
Manufacturer	ABB
Product Type	Intelligent Electro-Pneumatic Positioner
Product Series	TZIDC
Input Signal	4-20 mA, two-wire
Communication	LKS adapter connector (HART module not included)
Output Action	Double acting, Fail Freeze
Analog Feedback	4-20 mA, two-wire, plug-in module
Housing Material	Aluminum, varnished
Position Indicator	Mechanical indicator included
Electrical Connection	1/2-14 NPT
Pneumatic Connection	1/4-18 NPT
Air Supply Pressure	1.4 to 6 bar
Stroke Range (Linear)	20 to 150 mm
Stroke Range (Rotary)	Up to 125°
Operating Temperature	-40°C to +85°C
Protection Class	IP65 / NEMA 4X
Explosion Protection	None (Code 0)
Weight	Approximately 1.7 kg

Main Features and Advantages

Fail Freeze Safety Logic: The ABB V18345-2010521001 is configured with the “Fail Freeze” safe position behavior, which locks the pneumatic outputs in their current state upon loss of electrical power or signal. This stands in contrast to conventional fail-safe positioners that drive the valve to a predetermined open or closed position. In processes such as boiler feedwater control or temperature-critical chemical reactions, an uncontrolled full-open or full-closed valve movement during a power failure could cause equipment damage or safety incidents. The ABB V18345-2010521001 prevents this by holding the valve exactly where it was.

Integrated Analog Position Feedback: The ABB V18345-2010521001 comes equipped with a factory-installed plug-in analog feedback module that delivers a 4-20 mA signal representing actual valve position. This allows the control system to monitor valve position in real time without requiring separate position transmitters or additional wiring. The feedback module is a two-wire design, simplifying loop integration.

Comprehensive Diagnostics and Monitoring: The TZIDC operating program within the ABB V18345-2010521001 continuously monitors critical operating parameters including signal range compliance, position deviation, positioning timeout, and controller status. The two-line LCD display provides local indication of valve position in percent, along with diagnostic codes and alarm messages. The positioner records valve movement counts and total travel distance, enabling predictive maintenance planning and early detection of valve wear or sticking.

Single-Button Commissioning: The ABB V18345-2010521001 features an Autoadjust function that can be initiated with a single front panel button. The positioner automatically determines zero position, stroke range, and optimizes control parameters for the connected actuator, significantly reducing commissioning time and eliminating the need for manual calibration procedures. For linear actuators, the zero position is approached in the counter-clockwise direction; for rotary actuators, clockwise.
