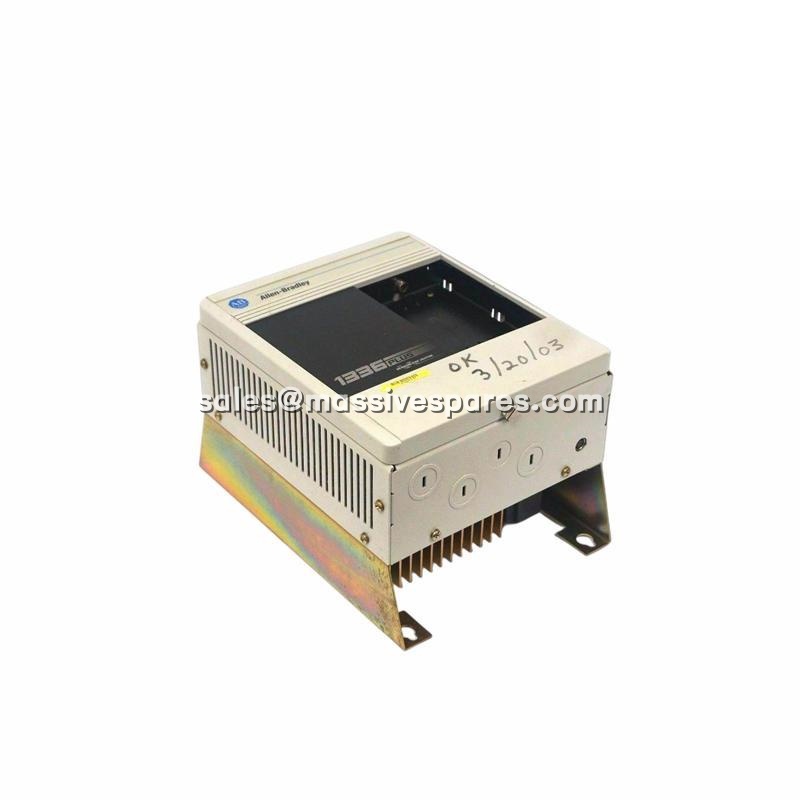

Allen-Bradley 1336S-BRF30-AA-EN 1336 PLUS Adjustable Frequency AC Drive – 3 HP, 380–480 VAC

Brand ABB

Model Allen-Bradley 1336S-BRF30-AA-EN 1336 PLUS

Product Overview

The 1336S-BRF30-AA-EN is a high-performance adjustable frequency AC drive from the Allen-Bradley 1336 PLUS family, designed and manufactured by Rockwell Automation. Engineered to provide precise digital control of three-phase induction motors, the 1336S-BRF30-AA-EN delivers smooth, efficient speed and torque regulation across a wide range of industrial applications. With a compact design and robust feature set, this drive is ideal for operations requiring reliable motor performance and energy efficiency.

As part of the proven 1336 PLUS platform, the 1336S-BRF30-AA-EN combines advanced microprocessor-based control with flexible programming options. It supports sensorless vector and Volts/Hertz control methods, allowing users to tailor performance to specific load requirements. The drive is well suited for both constant and variable torque applications, making it a versatile solution for modern automation systems.

Built for durability and ease of integration, the 1336S-BRF30-AA-EN features an IP20 (NEMA Type 1) enclosure for indoor use, along with built-in diagnostics and protection functions. Its compact frame size and straightforward configuration make it a dependable choice for system builders and maintenance teams alike.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	1336S-BRF30-AA-EN
Manufacturer	Allen-Bradley / Rockwell Automation
Product Type	Adjustable Frequency AC Drive
Series	1336 PLUS
Rated Power	2.2 kW (3 HP)
Input Voltage	380–480 VAC (±10%), 3-Phase
DC Input Voltage	513–620 VDC
Output Current	5.3 A (nominal)
Output Frequency Range	0–400 Hz
Enclosure Rating	IP20 (NEMA Type 1)
Control Methods	Volts/Hertz, Sensorless Vector
Frame Size	A2
Certifications	UL Listed, CSA Certified, CE
Operating Temperature	0 °C to 40 °C
Storage Temperature	-40 °C to 70 °C

Main Features and Advantages

The 1336S-BRF30-AA-EN offers a powerful combination of performance, flexibility, and reliability for industrial motor control. Its microprocessor-based architecture ensures precise, repeatable operation and supports a wide range of tuning parameters for different load profiles.

Precise motor control:

With support for both Volts/Hertz and sensorless vector control, the 1336S-BRF30-AA-EN delivers excellent speed regulation and torque response without the need for an encoder in many applications. This reduces system complexity while maintaining accurate motor performance.

Flexible programming and diagnostics:

The drive can be configured locally via an optional Human Interface Module (HIM) or remotely through compatible communication options. Onboard diagnostics continuously monitor operating conditions and fault states, simplifying troubleshooting and reducing unplanned downtime.

Robust protection and safety:

Built-in protection features help safeguard both the drive and connected equipment. The 1336S-BRF30-AA-EN includes safeguards against overcurrent, overtemperature, and voltage irregularities, contributing to longer service life and improved system reliability.

Compact and installation-friendly:

Housed in a space-saving IP20/NEMA 1 enclosure, the 1336S-BRF30-AA-EN is designed for standard indoor panel mounting. Its compact frame and clearly organized terminal layout make installation and wiring straightforward for automation professionals.
