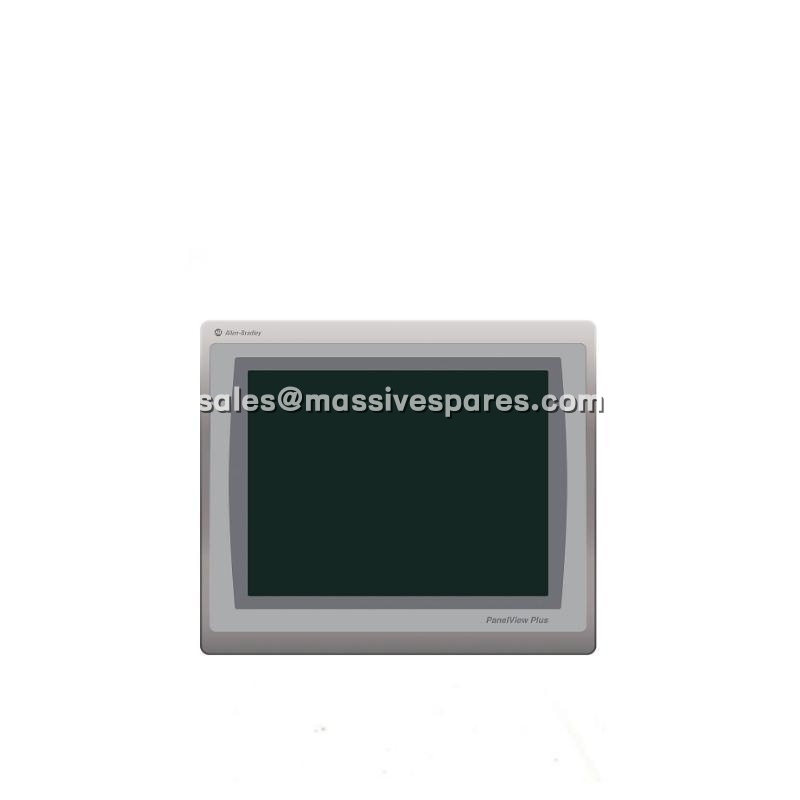

Allen-Bradley 2711P-T10C22A9P PanelView Plus 7 Performance Graphic Terminal

Brand ABB

Model Allen-Bradley 2711P-T10C22A9P

Product Overview

The Allen-Bradley 2711P-T10C22A9P is a PanelView Plus 7 Performance graphic terminal engineered to deliver advanced visualization, control, and monitoring capabilities for industrial automation systems. As a member of the Allen-Bradley PanelView Plus 7 Performance family, the Allen-Bradley 2711P-T10C22A9P combines a 10.4-inch color active-matrix TFT display with an analog resistive touchscreen, providing operators with a responsive and intuitive interface for interacting with connected machinery and processes. This terminal serves as the primary human-machine interface (HMI) within EtherNet/IP networks, communicating seamlessly with ControlLogix and CompactLogix controllers to present real-time process data, alarm summaries, and control faceplates.

The Allen-Bradley 2711P-T10C22A9P distinguishes itself through its Performance-class hardware architecture, which supports significantly larger tag counts and more complex screen designs than Standard PanelView Plus 7 variants. Powered by Windows CE 6.0 and programmed with FactoryTalk View Machine Edition software, this terminal offers a familiar development environment for HMI application creation. The Allen-Bradley 2711P-T10C22A9P features dual Ethernet ports with embedded switch technology, enabling Device Level Ring (DLR), linear, and star network topologies. This network flexibility ensures that communication remains uninterrupted even during physical cable breaks, preventing operator blindness in critical processes. With 512 MB of RAM and 512 MB of non-volatile storage, the Allen-Bradley 2711P-T10C22A9P handles data-intensive automation environments with ease, rendering complex graphics and high-volume tag data without latency.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	Allen-Bradley 2711P-T10C22A9P
Manufacturer	Allen-Bradley (Rockwell Automation)
Product Type	PanelView Plus 7 Performance Graphic Terminal
Display Size	10.4 inches
Display Type	Color Active-Matrix TFT LCD
Resolution	800 x 600 SVGA, 18-bit Color
Operator Input	Analog Resistive Touchscreen
Touchscreen Actuations	1 Million Presses
System Memory	512 MB RAM, 512 MB Non-volatile Storage
Input Voltage	100-240 VAC, 50/60 Hz
Power Consumption	105 VA
Communication Ports	Two (2) Ethernet, Three (3) USB Host
Network Topologies	DLR, Linear, Star
Operating System	Windows CE 6.0
Programming Software	FactoryTalk View Machine Edition
Backlight Life	50,000 Hours Minimum
Operating Temperature	0°C to +55°C
Mounting	Panel Mount

Main Features and Advantages

The Allen-Bradley 2711P-T10C22A9P integrates high-performance processing, advanced network resilience, and robust operator input capabilities into a compact panel-mount package suitable for demanding industrial environments.

Performance-Class Processing Power: The Allen-Bradley 2711P-T10C22A9P is equipped with 512 MB of RAM and 512 MB of non-volatile storage, providing ample capacity for complex HMI applications with large tag databases and intricate screen architectures. This Performance-class hardware configuration enables the terminal to render high-resolution 18-bit color graphics and handle data-intensive applications without the latency that can plague lesser HMI platforms.

Network Resilience with Embedded Switch: The dual Ethernet ports on the Allen-Bradley 2711P-T10C22A9P incorporate embedded switch technology that supports Device Level Ring (DLR) topologies. In a DLR configuration, the terminal maintains communication with the controller even if a cable break occurs, ensuring continuous operator visibility into critical processes. This network resilience is particularly valuable in applications where loss of HMI communication could lead to production downtime or safety risks.

Responsive Touch Interface: The Allen-Bradley 2711P-T10C22A9P features an analog resistive touchscreen rated for up to 1 million actuations with an operating force of just 100 grams. This sensitivity allows operators to interact accurately with the display even while wearing thick industrial gloves, addressing a common challenge in manufacturing and processing environments.

Versatile Communication and Expansion: Beyond its dual Ethernet ports, the Allen-Bradley 2711P-T10C22A9P provides three USB host ports for connecting peripherals such as keyboards, mice, printers, and USB flash drives. The terminal also supports VNC connectivity, enabling remote monitoring and interaction from tablets or smartphones over a secure network connection.
