Description
Technical Specifications

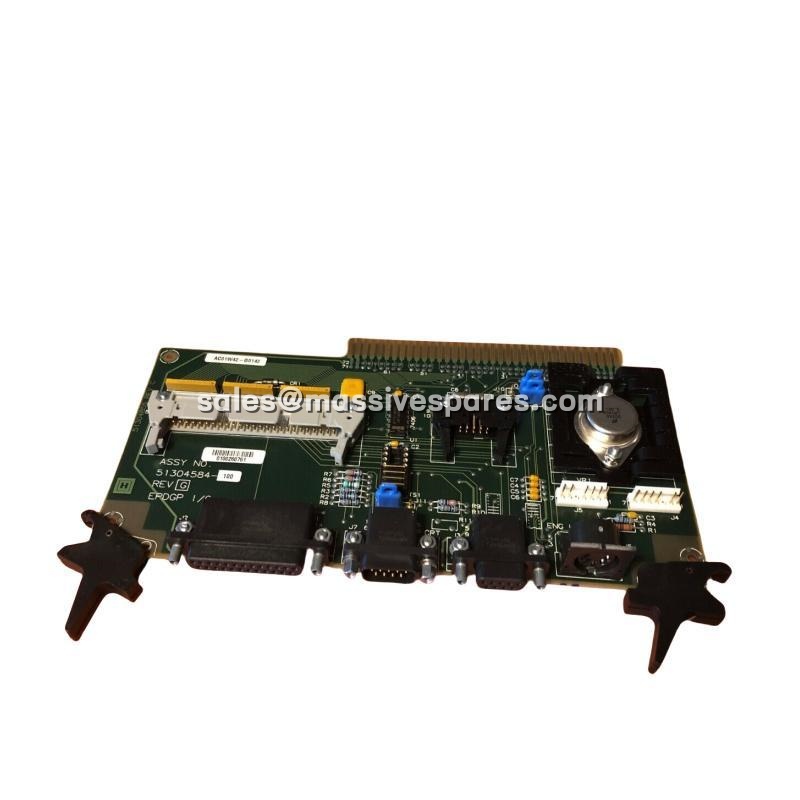

| Parameter Name | Parameter Value |
|---|---|
| Product Model | 51304584-100 |
| Manufacturer | Honeywell |
| Product Type | EPDGP I/O Board (Peripheral Interface) |
| Compatible System | TDC 2000 / TDC 3000, Universal Station |
| Supported Devices | Video, Keyboard, Cursor Control, Zip/Bernoulli Drive, Printer |
| Keyboard Compatibility | Engineer’s Keyboard or Supervisor’s Keyboard |
| Revision Requirement | Rev G or above for Bernoulli/Zip drive support |
| Incompatible Interfaces | 51401952-100 / 51401952-200 keyboard interfaces |
| Alternative Models for Incompatible Interfaces | 51304584-200 / 51304584-300 |
| Dimensions | Approximately 22.3 cm × 14 cm × 2.5 cm |
| Weight | Approximately 0.18 kg |
| Category | Micro TDC Stations, Universal Stations (Classic), Universal Workstations |
Main Features and Advantages
Multi-Peripheral Interface Capability: The 51304584-100 consolidates connections for multiple operator station peripherals onto a single board. Video output, keyboard input, cursor control signals, external storage drives, and printer interfaces are all routed through this board, reducing cable complexity and connection points within the Universal Station chassis. This integrated approach simplifies troubleshooting and replacement procedures, as a single board swap restores functionality across multiple peripheral subsystems.
Keyboard Configuration Flexibility: The 51304584-100 includes a hardware configuration option that accommodates either the Engineer’s Keyboard or the Supervisor’s Keyboard. When both keyboards are installed in the same station, the board is configured for the Supervisor’s Keyboard, with the Engineer’s Keyboard daisy-chained through the Supervisor’s Keyboard connection. This design eliminates the need for separate interface boards when stations serve dual operational roles, providing cost savings and inventory simplification for facilities with mixed keyboard configurations.
CRT Background Default Options: The 51304584-100 features pinning options that establish the default background shade for the CRT when no palette has been set in a schematic. This capability, particularly relevant in Release 320 and later TDC 3000 environments, ensures consistent display appearance during startup or after configuration resets, reducing operator confusion and maintaining visual standardization across multiple stations.
Compatibility and Revision Management: The 51304584-100 is explicitly designed for use with EPDG and EPDG2 peripheral interfaces, serving as the newer card version for these applications. Understanding revision requirements is essential: Rev G or above must be used on stations equipped with Bernoulli or Zip drives, while earlier revisions may be suitable for stations without these storage devices. This revision-dependency underscores the importance of verifying board revision against station configuration before procurement or replacement.
Application Field
The 51304584-100 is deployed exclusively within Honeywell TDC 2000 and TDC 3000 Distributed Control System environments, specifically in Universal Station and Universal Workstation configurations. These stations represent the primary operator interface points in legacy DCS installations, where the 51304584-100 enables the visual and interactive functions that operators rely upon for monitoring and controlling continuous processes. Power generation facilities, petrochemical complexes, and large-scale manufacturing operations that have maintained their Honeywell DCS infrastructure depend on this board to keep operator consoles functional.
In process industries where TDC 3000 systems remain in service, the 51304584-100 supports critical human-machine interface functions. The board’s video and keyboard interfaces allow operators to navigate process schematics, acknowledge alarms, adjust setpoints, and execute control actions. When the 51304584-100 fails, operators lose access to the visualization and input capabilities of the Universal Station, potentially forcing a fallback to secondary control methods or emergency procedures. This direct impact on operational capability makes the 51304584-100 a high-priority spare for facilities running Honeywell legacy DCS platforms.
Beyond primary process control applications, the 51304584-100 supports engineering and maintenance workstations within the same DCS ecosystem. Engineering personnel use Universal Stations equipped with this board to modify control logic, update process graphics, and perform system configuration tasks. The board’s printer interface enables hardcopy documentation of process data, alarm logs, and configuration records—functions that remain relevant for regulatory compliance and incident investigation in industries such as pharmaceuticals and specialty chemicals. As TDC 3000 systems continue operating well beyond their original design lifecycles, the 51304584-100 remains an essential component for sustaining these platforms.
