Description
Application Scenarios
In an offshore oil and gas platform, the Emergency Shutdown (ESD) system must maintain continuous operation even when individual power supply units degrade or fail. The HONEYWELL 10302/2/1 functions as the watchdog supervision node within the FSC rack, continuously monitoring the 5 Vdc and 24 Vdc rails that power critical output modules controlling shutdown valves. When a secondary power supply began drifting toward overvoltage during a grid instability event, the 10302/2/1 detected the anomaly and withheld the watchdog output, triggering a controlled fail-safe state rather than allowing potentially damaged I/O modules to operate outside specification. This intervention prevented a valve actuation failure that could have compromised platform safety.
Parameter
| Parameter | Value/Description |
|---|---|

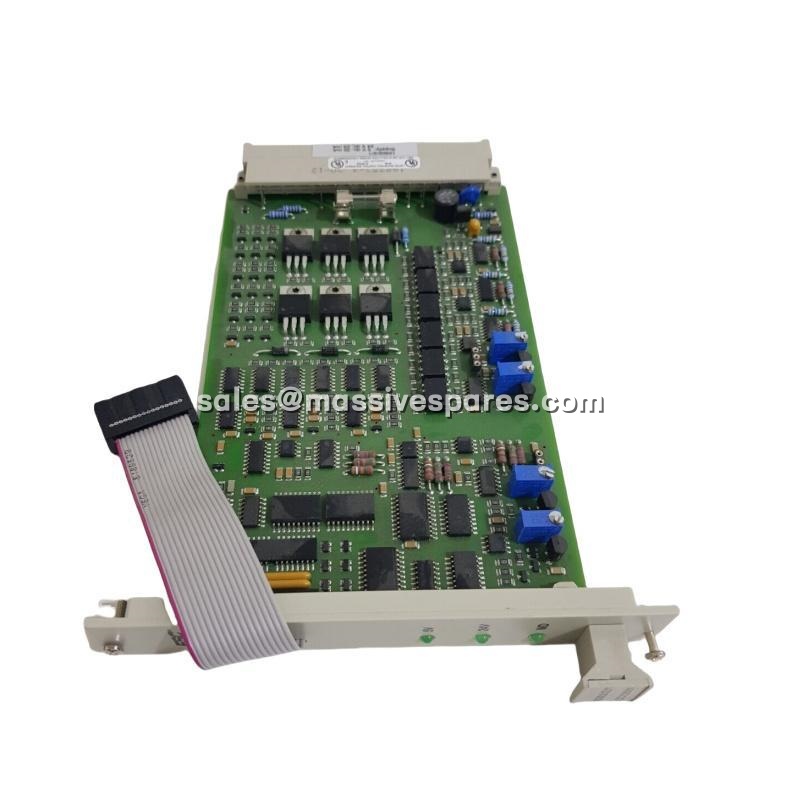

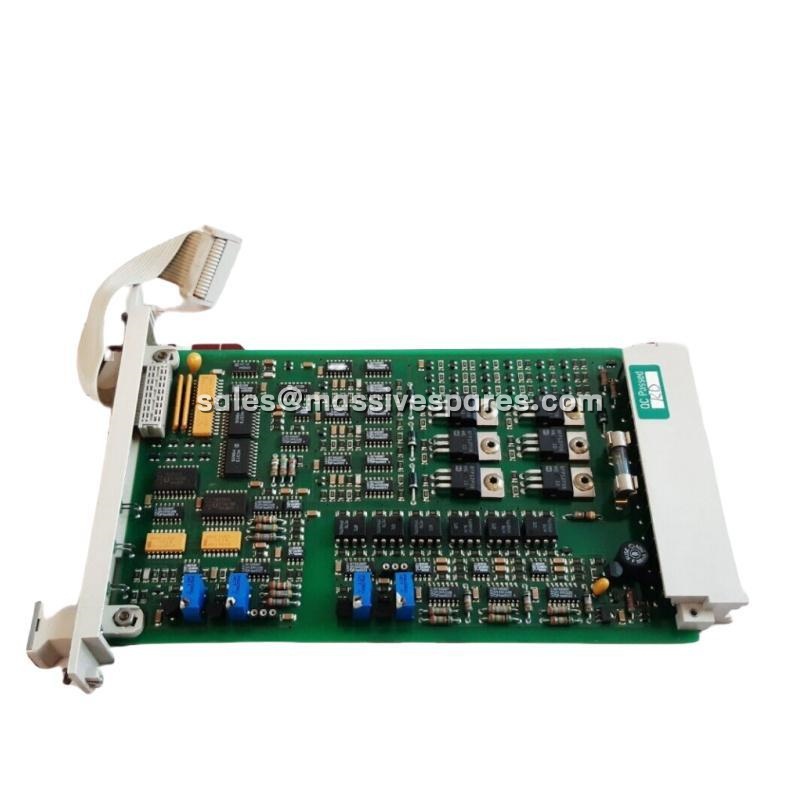

| Product Model | HONEYWELL 10302/2/1 (3400126) |
| Manufacturer | Honeywell |
| Product Category | Watchdog Repeater Module (FSC Series) |
| Type Number | 12600 |
| Monitored Voltages | 5 Vdc and 24 Vdc |
| Power Requirements | 5 Vdc @ 35 mA; 24 Vdc @ 25 mA |
| Watchdog Current Support | Exceeds 900 mA |
| WDG Input Current | 0.1 mA (WDG1 + WDG2) |
| Overvoltage Threshold | 24 Vdc supply must remain below 37 Vdc under double fault |
| Space Requirements | 4 TE, 3 HE (Standard 3U Eurocard) |
| Connector Type | DIN 41612, Type F (rows b, d, z) |
| Module Coding | Holes at A5, A9 |
| Certifications | CE, TÜV, UL |
| Software Compatibility | Version 3.00 and higher |
| Weight | 0.12 kg |
