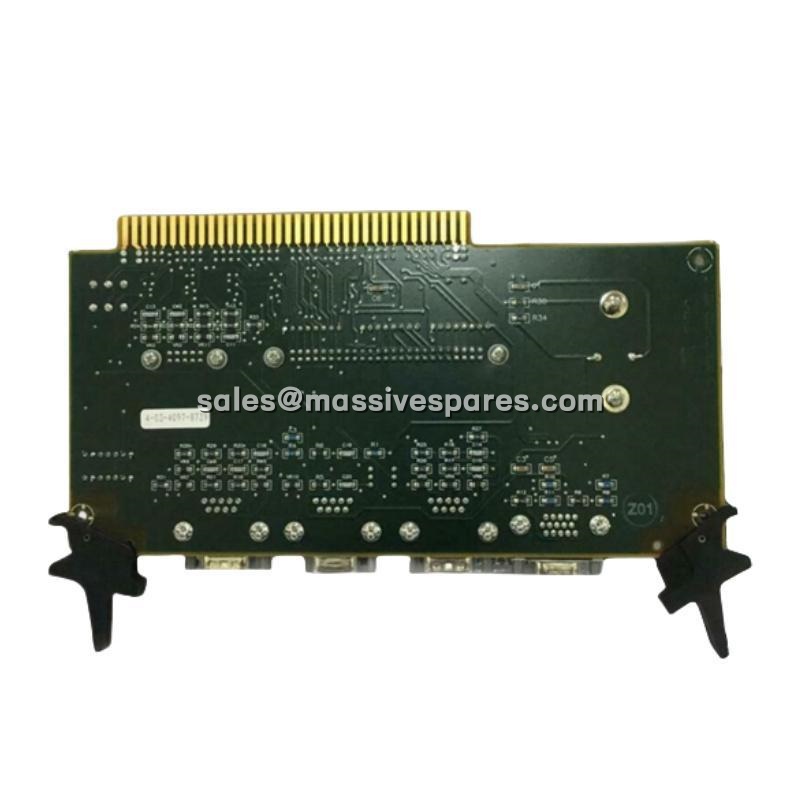

Honeywell 51304831-100 TDC 3000 I/O Board – Reliable Signal Routing for HMI Systems

Brand Honeywell

Model Honeywell 51304831-100

Product Overview

The Honeywell 51304831-100 is a specialized TPDG Input Output Board engineered for the Honeywell TDC 3000 and TDC 3000X Distributed Control Systems. Within the Universal Station architecture, the Honeywell 51304831-100 serves as the critical interface board responsible for routing signals between the operator display subsystem and a comprehensive array of peripheral devices, including ASPI printers, CRT monitors, touchscreen interfaces, operator keyboards, mice or trackballs, and SCSI-based cartridge drives. This board occupies a unique position in the TDC 3000 ecosystem, functioning not as a general-purpose process I/O module but as a dedicated peripheral interface card that ensures seamless operator interaction with the control system.

The Honeywell 51304831-100 is designed for installation in the rear I/O section of Five- and Ten-Slot Module assemblies, where it operates alongside the TPDG card to manage display and peripheral communication. The board’s architecture supports configurable CRT background color pinning, a legacy feature essential for maintaining display consistency across TDC 3000X Universal Stations in continuous process environments. As a non-CE certified variant, the Honeywell 51304831-100 was manufactured for specific regional markets and remains actively deployed in existing installations, particularly in power generation, chemical processing, and oil and gas facilities that continue to rely on the TDC 3000 platform for mission-critical control.

The Honeywell 51304831-100 represents a mature, field-proven component within Honeywell’s legacy DCS portfolio. While newer systems have superseded the TDC 3000 in greenfield projects, the Honeywell 51304831-100 remains essential for maintaining operational continuity in the substantial installed base of TDC 3000X systems worldwide, where operator stations require reliable peripheral interface capabilities to sustain human-machine interaction and process visualization.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	51304831-100
Manufacturer	Honeywell
Product Type	TPDG Input Output Board (Peripheral Interface)
System Platform	Honeywell TDC 3000 / TDC 3000X
Functional Role	Universal Station display and peripheral interface
Compatible Module Slots	Five-Slot and Ten-Slot Module assemblies
Peripheral Connections	ASPI printer, CRT monitor, touchscreen signal/power, keyboard, mouse/trackball, SCSI cartridge drive
Communication Routing	LCN / Peripheral signal routing
Power Source	System backplane powered
Mounting Location	Rear I/O chassis
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity Tolerance	5% to 95% non-condensing
Dimensions (Approx.)	22.3 cm × 14 cm × 1.5 cm
Weight (Approx.)	0.18 kg
Country of Origin	USA
Certification Status	Non-CE

Main Features and Advantages

Dedicated Peripheral Interface Architecture: The Honeywell 51304831-100 functions as the central routing point for all operator station peripherals within TDC 3000X Universal Stations. Rather than relying on general-purpose I/O, this board provides dedicated signal paths for the ASPI printer, monitor, touchscreen, keyboard, mouse/trackball, and SCSI storage interfaces, ensuring that each peripheral receives the specific signal conditioning and timing required for reliable operation.

Comprehensive Multi-Peripheral Support: A single Honeywell 51304831-100 board manages connectivity for the full suite of operator interface devices used in TDC 3000X installations. The inclusion of SCSI interface support enables connection to cartridge drive storage systems, facilitating data logging and system backup functions that are essential for long-term process documentation and regulatory compliance in industries such as power generation and chemical manufacturing.

Configurable Display Integration: The Honeywell 51304831-100 supports configurable CRT background color pinning, allowing operators and maintenance personnel to maintain consistent display presentation across multiple Universal Stations. This capability is particularly valuable in control rooms where multiple operator consoles must present uniform visual environments to reduce operator error and streamline situational awareness during normal and emergency operations.

Robust Industrial Construction: Engineered for continuous operation in demanding process control environments, the Honeywell 51304831-100 maintains signal integrity in the presence of electrical noise, mechanical vibration, and temperature fluctuations commonly encountered in industrial control rooms and equipment cabinets. Its compact form factor and backplane-powered design simplify installation and reduce cabling complexity within the TDC 3000X chassis.
