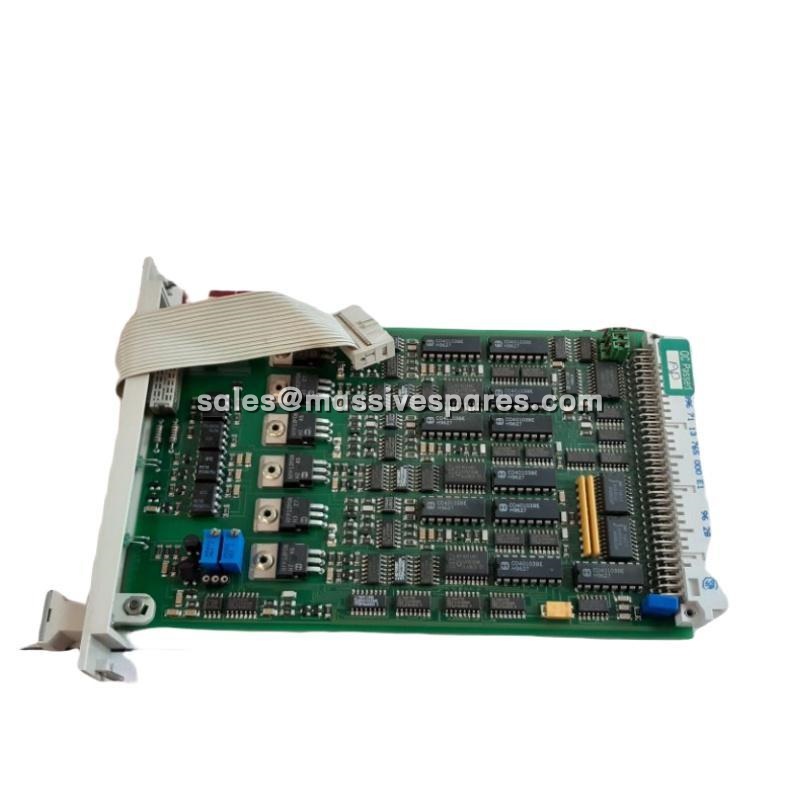

Description
Application Scenarios

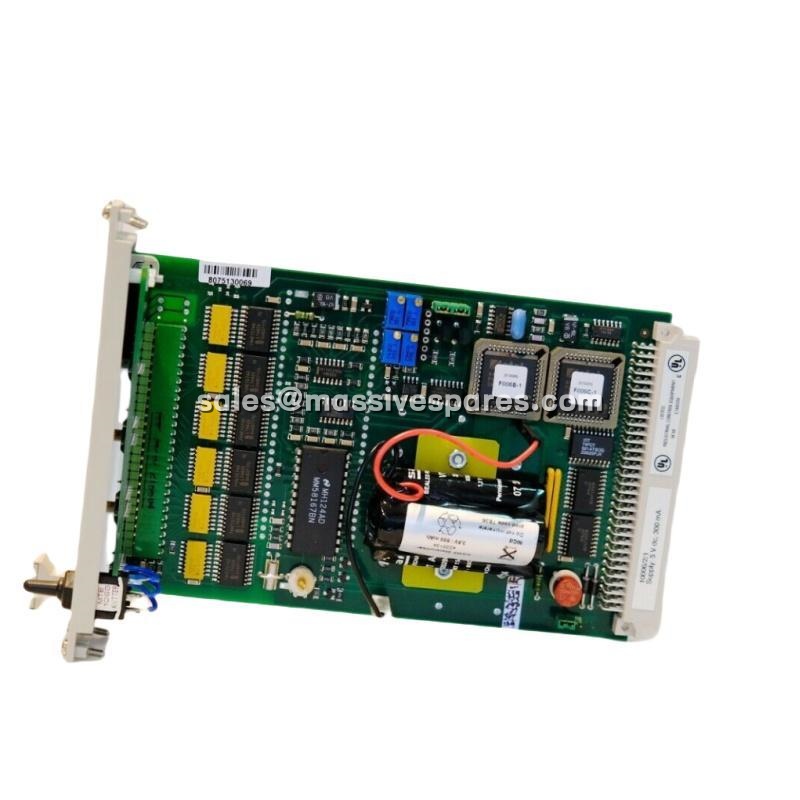

In a safety-critical emergency shutdown (ESD) system protecting a large petrochemical complex, the FSC controller manages hundreds of safety instrumented functions across multiple process units. Should a plant-wide power disturbance occur, the controller’s configuration and diagnostic history must survive the outage without loss. The HONEYWELL 10006/2/1 addresses this exact vulnerability: mounted directly in the FSC central rack, its rechargeable batteries supply backup power to the RAM memory of the CPU, COM, and MEM modules when main power fails. Beyond backup, the 10006/2/1 continuously monitors system diagnostics, providing operators with fault visibility through front-panel indicators and integrated real-time clock functions. For facilities where unplanned downtime carries six-figure hourly costs, this module transforms from a passive battery holder into an active guardian of system integrity.
Parameter
| Parameter | Value/Description |
|---|---|
| Product Model | 10006/2/1 (08801*) |
| Manufacturer | Honeywell |
| Product Category | Diagnostic and Battery Module (DBM) for FSC System |
| Approvals | CE, TÜV, UL |
| Software Version | ≥ 2.90 |
| Space Requirements | 8 TE, 3 HE (8 HP, 3U) |
| Time Drift | < 1 sec/day |
| Power Requirements | 5 Vdc, 300 mA |
| Ripple Content | < 50 mV p-p |
| Back-up Capacity | 0.5 Ah |
| Battery Lifecycle | Recommended replacement every 4 years |
| Jumper J1 Function | Batteries in stock (OFF) or in circuit (ON) |
| Shipping Weight | 1.5 Kg |
*Note: Modules with suffix code 08801 offer improved noise immunity.
Technical Principles and Innovative Values
- Innovation Point 1 – Dual-Purpose Architecture: The 10006/2/1 consolidates two critical functions—system diagnostics and RAM backup power—into a single 3U rack-mounted module. This integration reduces slot count in the FSC central rack, simplifies wiring, and eliminates the failure points that separate diagnostic and battery modules would introduce. For system integrators, fewer components mean less configuration complexity and fewer spare part numbers to manage.
- Innovation Point 2 – Centralized Memory Protection: The module holds rechargeable batteries that supply backup power not only to its own circuits but to the RAM memory of the CPU (10002/1/1 or 10002/1/2), COM modules (10004/./.), and MEM modules (10003/1/1). This centralized approach ensures that all volatile memory across the controller rack survives power loss, preserving configuration data, runtime counters, and diagnostic logs without requiring individual battery backup on each card.
- Innovation Point 3 – Field-Configurable Battery Circuit: Jumper J1 allows technicians to switch the batteries between “stock” (OFF) and “in circuit” (ON) states. This design permits battery preservation during storage or shipment without removing the module, and enables rapid field activation during commissioning. J2 and J3 are factory-set for application-specific configurations, ensuring consistent behavior across installations.
- Innovation Point 4 – Real-Time Clock and System Monitoring: Beyond battery management, the 10006/2/1 maintains a real-time clock with drift of less than 1 second per day, enabling accurate timestamping of diagnostic events and sequence-of-events recording. Combined with fault display and system monitoring functions, the module provides operators with precise temporal context when troubleshooting cascading safety events.
