Description
Application Scenarios
In a refinery emergency shutdown (ESD) system, the ability to safely and reliably de-energize final control elements during a process upset is not merely a convenience—it is a fundamental safety requirement. When a high-pressure separator experiences abnormal conditions, the safety controller must rapidly de-energize the solenoid valves that isolate feed flows, preventing escalation to a catastrophic event. The HONEYWELL 10201/2/1 FC-SDO-0824 serves as the critical output interface in this chain, converting the safety controller’s logic decisions into physical actions at the field device level. Its fail-safe architecture ensures that even under power failure or internal fault conditions, outputs are de-energized, driving the process to its safe state. This is the essential value that the HONEYWELL 10201/2/1 FC-SDO-0824 delivers to Safety Manager 4000, 5000, and 6000 system deployments across oil and gas, chemical, and power generation facilities.
Parameter
| Parameter | Value/Description |
|---|---|

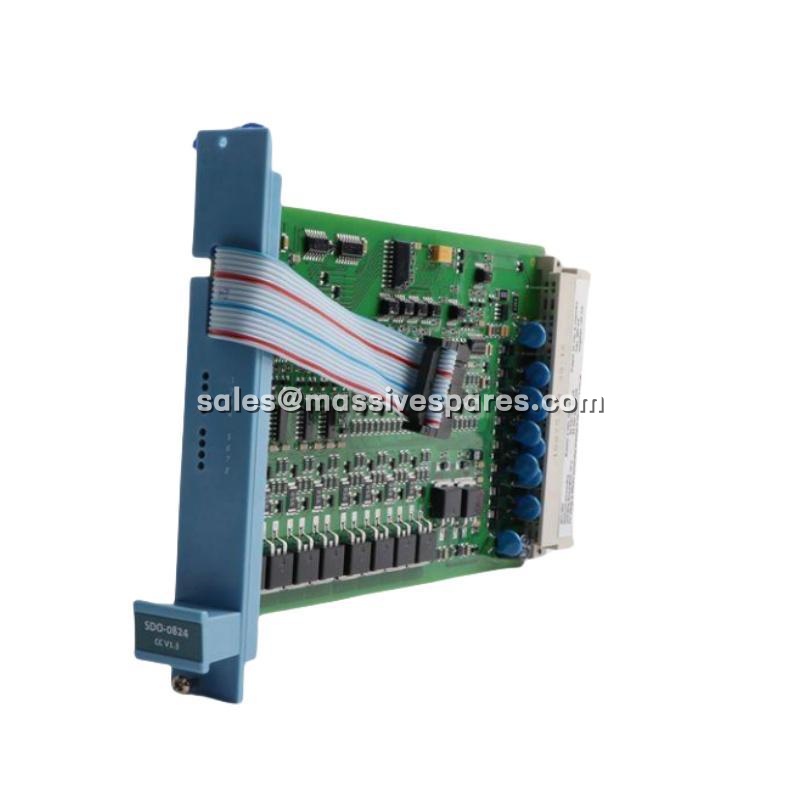

| Product Model | HONEYWELL 10201/2/1 FC-SDO-0824 |
| Manufacturer | Honeywell |
| Product Category | Safety Digital Output Module (Safe DO) |
| Output Channels | 8 |
| Output Type | 24 Vdc solid-state source, short-circuit proof |
| Output Load Capacity | Up to 550 mA per channel; drives loads up to 13 W (resistive or inductive) |
| Power Requirements | 5 Vdc @ 25 mA; 24 Vdc internal @ 25 mA; 24 Vdc external @ 70 mA (without output load) |
| Communication Protocol | Fail-safe digital output with watchdog timer |
| Protection Rating | NEMA 4X and IP66 (robust metal housing) |
| Mounting Method | DIN rail |
| Operating Temperature | −25°C to +70°C (extended range available) |
| Safety Certification | Compatible with EN 61508 SIL2/SIL3 systems |
| Weight | Approximately 0.15 kg |
Technical Principles and Innovative Values
Innovation Point 1: Fail-Safe Output Architecture with Built-In Watchdog. The HONEYWELL 10201/2/1 FC-SDO-0824 incorporates a hardware watchdog timer that continuously monitors for valid control signals from the safety controller. If a valid signal is not received within a predetermined interval, the watchdog circuit automatically resets the output to its de-energized state. This design ensures that communication failures or controller faults result in a safe condition rather than hazardous output states, providing a critical layer of protection independent of software-based safety logic.
Innovation Point 2: Robust 24 Vdc Solid-State Source Outputs. Each of the 8 output channels delivers 24 Vdc through solid-state source circuitry, rated for loads up to 13 W and capable of driving both resistive loads such as indicator lamps and inductive loads such as solenoids. The solid-state design eliminates mechanical relay contacts, removing the wear and contact degradation issues that limit relay-based output modules. Short-circuit protection is integrated on every channel, preventing field wiring faults from damaging the module or propagating to adjacent channels.
Innovation Point 3: Environmental Hardening for Demanding Installations. The HONEYWELL 10201/2/1 FC-SDO-0824 features a robust metal housing with NEMA 4X and IP66 protection ratings, making it suitable for installation in environments where moisture, dust, and corrosive atmospheres are present. The DIN rail mounting system facilitates rapid installation and replacement within standard industrial control cabinets. This combination of environmental protection and mounting flexibility reduces the need for secondary enclosures and simplifies field wiring.
Innovation Point 4: Direct Compatibility with Honeywell Safety Manager Platforms. The HONEYWELL 10201/2/1 FC-SDO-0824 is engineered specifically for integration with Honeywell Safety Manager systems, including the Safety Manager 4000, 5000, and 6000 platforms. It also supports interoperability with third-party safety controllers compliant with EN 61508 SIL2 or SIL3 requirements, providing flexibility in system architecture and enabling phased safety system upgrades without wholesale replacement of existing infrastructure.
