Honeywell 51304903-200 WDI Winchester Drive Interface Board for TDC 3000 Supervisory Hardware

Brand Honeywell

Model Honeywell 51304903-200

Product Overview

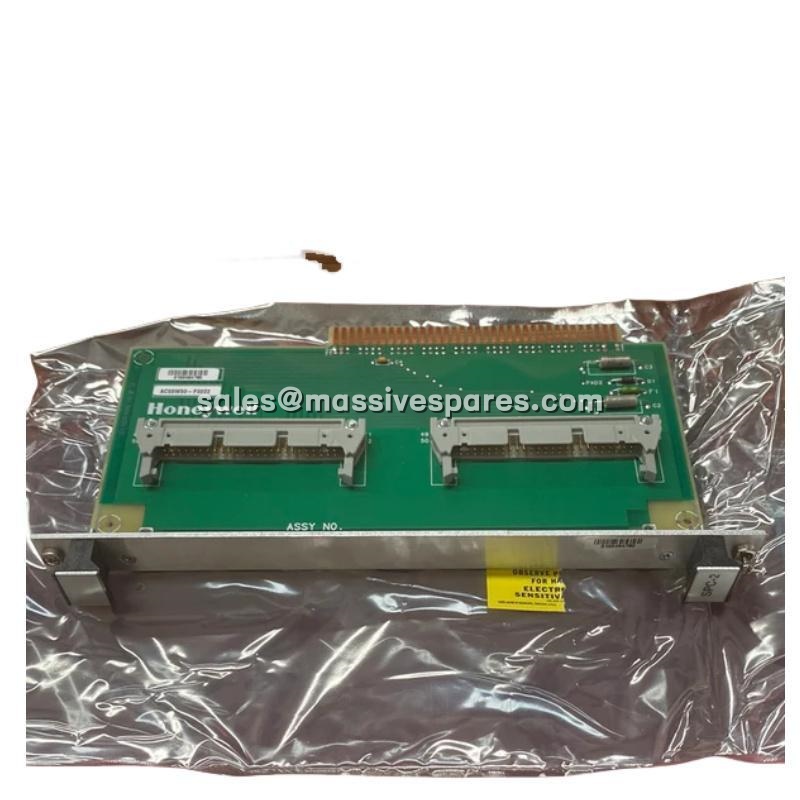

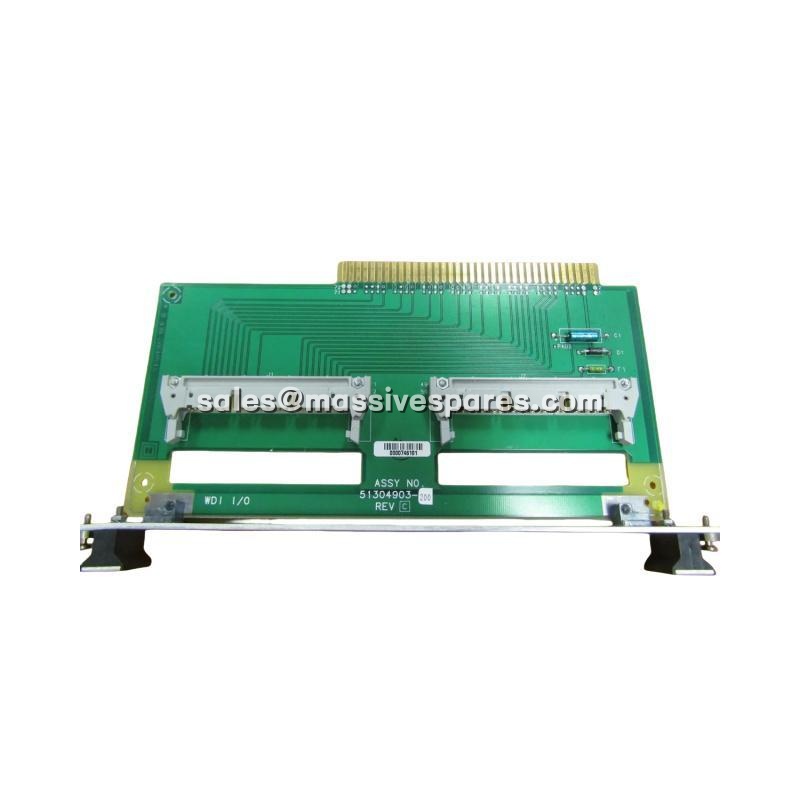

The Honeywell 51304903-200 is a highly specialized interface board officially identified in Honeywell hardware service documentation as the WDI — Winchester Drive Interface EC board. It belongs to the supervisory hardware family of the renowned Honeywell TDC 3000 distributed control system and serves as the dedicated hardware bridge between the host supervisory electronics and the legacy WREN / Winchester disk subsystem. Unlike general-purpose process I/O modules, the Honeywell 51304903-200 does not directly acquire field sensor signals or drive final control elements; instead, it occupies the storage channel of the supervisory layer, enabling reliable data exchange between critical mass-storage devices such as History Modules (HM) and Universal Stations (US) and the rest of the TDC 3000 architecture.

Engineered as a five-slot / ten-slot module maintenance board, the Honeywell 51304903-200 is purpose-built for the demanding environment of continuous-process control rooms where system continuity is non-negotiable. Its role is foundational: when the interface between supervisory hardware and the disk assembly fails, the entire node’s access to historical data, configuration, and operational context is compromised. By providing a verified, tested hardware pathway, this module safeguards the integrity of the control system’s long-term data and operational recovery capability.

With its compact footprint of approximately 2.5 × 12.7 × 20.3 cm and a weight of roughly 0.33 lb (150 g), the board is designed for precise slot placement within the TDC 3000 chassis. Originating from Honeywell’s U.S. manufacturing line, the Honeywell 51304903-200 remains a vital sourced spare for plant operators managing mature, mission-critical installations that continue to deliver reliable service decades after initial deployment.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	51304903-200
Manufacturer	Honeywell
Board Identification	WDI — Winchester Drive Interface EC
Product Type	Storage / Disk Interface Board (EC Card)
System Family	Honeywell TDC 3000 Supervisory Hardware
Primary Function	Interface between host supervisory hardware and WREN / Winchester disk subsystem
Board Format	Five-slot / Ten-slot module maintenance board family
Approx. Dimensions	2.5 × 12.7 × 20.3 cm (≈ 203 × 127 × 25 mm)
Approx. Weight	0.33 lb (≈ 150 g)
Compatible Storage	Legacy Winchester / WREN disk assembly
Supported Nodes	History Module (HM), Universal Station (US)
Power Source	Backplane-regulated DC supply
Mounting	Rack / chassis slot, five or ten-slot maintenance assembly
Operating Environment	Industrial control room, 0 °C to +60 °C
Country of Origin	USA

Main Features and Advantages

Purpose-built for the TDC 3000 supervisory layer

The defining strength of the Honeywell 51304903-200 is its uncompromising specialization. As a genuine Winchester Drive Interface EC board, it is engineered exclusively for the TDC 3000 storage architecture, which means every signal line, timing characteristic, and protocol handshake is validated against the original Honeywell design. This eliminates the uncertainty and compatibility risk associated with generic or improvised interface solutions.

Restores the critical storage pathway

When a supervisory node loses communication with its disk subsystem, the consequences extend far beyond a simple hardware fault — configuration data, process history, and system recovery images all become inaccessible. The Honeywell 51304903-200 restores this vital link, allowing maintenance teams to bring affected nodes back online quickly and completely. Its role in system recovery makes it one of the most strategically important spares in any TDC 3000 inventory.

Validated as a complete hardware set

Honeywell service practice treats the storage subsystem — interface board, controller, cable harness, and disk medium — as one verified legacy assembly. The Honeywell 51304903-200 is supplied and supported with this philosophy in mind. Matching the board’s revision, slot location, companion controller, and cable configuration ensures a predictable, repeatable restoration without introducing subtle timing or signal-integrity issues.

Compact, serviceable, and field-proven

At just 0.33 lb and a low-profile board geometry, the Honeywell 51304903-200 slides precisely into the designated maintenance slot. Its industrial-grade printed circuit board, reinforced connectors, and robust component selection reflect decades of field operation in oil & gas, chemical, and power-generation control rooms. For maintenance, repair, and operations (MRO) teams, the availability of tested replacement units translates directly into reduced mean time to repair (MTTR) and improved asset availability.

Legacy-asset protection

Perhaps the greatest advantage of the Honeywell 51304903-200 is the protection it offers to the substantial capital investment represented by an installed TDC 3000 base. Rather than undertaking a costly, disruptive full-system migration, plant owners can preserve proven control logic and operational familiarity through like-for-like board replacement, extending the productive life of the entire automation installation.
