Description
Application Scenario
In an offshore oil and gas platform utilities module, the on-board Honeywell TDC 3000 Process Manager periodically raised “Low Battery Voltage” and intermittent “Charge Failure” alarms during diesel-generator transfer tests. The fault surfaced at the worst possible moment—exactly when backup power was most needed. Diagnostics traced the symptom to a drifted charger assembly inside the power housing: the battery was no longer held at a stable float potential, and the controller could not reliably report charge health.
After replacing the unit with a verified Honeywell 51309206-125 (PWA PM Universal Charger-CRP), technicians confirmed proper charge output at the battery terminals and restored clean charger-state reporting to the operator station. The platform eliminated alarm storms during power transitions and retained control-program and time-of-day integrity through every subsequent transfer. The lesson was clear: in a legacy DCS, the charger board is not an accessory—it is the guardian of the system’s last line of power defense. Keeping a tested 51309206-125 on the critical-spares shelf turns a power-event emergency into a calm, planned swap.
Parameters
| Main Parameters | Value / Description |
|---|---|

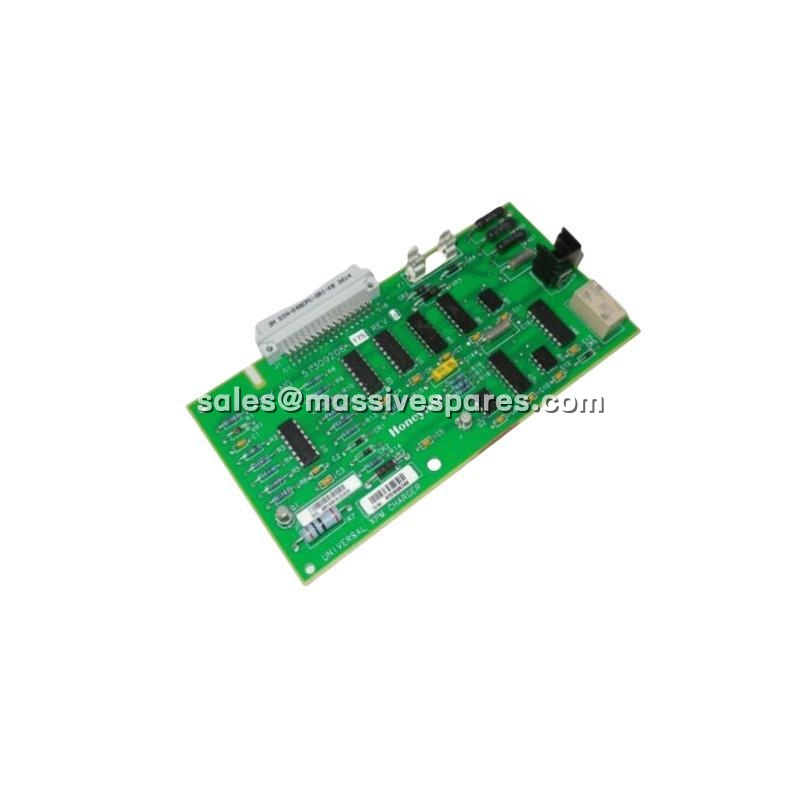

| Product Model | 51309206-125 (PWA PM Universal Charger-CRP) |
| Manufacturer | Honeywell (USA) |
| Product Category | Printed Circuit Board / Power Charging & Regulation Assembly |
| Alternate Description | Universal XPM Charger; PWA PM Universal Charger |
| System Platform | TDC 3000 Process Manager / Extended Process Manager (XPM) |
| Host Assembly | Process Manager power housing (e.g., MU-PSRX04 family; verify per installed assembly) |
| Primary Function | Battery charging, DC voltage regulation, current limiting, status & alarm signaling |
| Backplane Connector | J1 – 48-pin DIN 41612 male connector (power in / charge out / status signaling) |
| Hardware Protection | Onboard fuse holder F1, overcurrent / overvoltage / short-circuit protection |
| Thermal Management | Integrated heatsink for regulation-stage dissipation |
| Output Filtering | Multi-stage RC filtering network for stable DC conditioning |
| Revision | Rev B (Assembly No. 51309206-125; match revision on installed label) |
| Physical Size (approx.) | 165 mm × 90 mm × 25 mm; weight approx. 80 g |
| Status Indication | LED / relay-based battery and charge-status signaling (panel-dependent) |
| Compliance | CE / UL / RoHS per OEM build revision (confirm on label) |
Note: Input/output voltage, charge current, and efficiency vary by the host power-system configuration and are not consistently documented in public Honeywell records for the -125 assembly. Always confirm the complete label, revision, jumper/connector layout, and host housing part number against your installed unit before energizing.
Technical Principles and Innovative Values
- Innovation Point 1 — Integrated Charge, Regulation, and Protection on One Board. The 51309206-125 consolidates charging, DC regulation, current limiting, and filtering into a single PWA. Instead of discrete chargers and separate protection modules scattered through the rack, the design delivers one serviceable assembly that conditions backup power and reports its health through the system.
- Innovation Point 2 — Stable Backup Power Through Power Transitions. By maintaining batteries or energy-storage devices at the correct float/charge profile, the PWA PM Universal Charger-CRP ensures the Process Manager retains program memory, time-of-day, and orderly shutdown capability during mains loss or generator transfer. This directly protects against configuration loss and post-outage restart delays.
- Innovation Point 3 — Hardware-Level Safety. The onboard fuse holder (F1) provides hard-wired overcurrent protection, while the regulation stage adds overvoltage and short-circuit safeguards. Combined with a thermal dissipation path, the board fails safely rather than allowing a fault to propagate to the backplane or batteries.
- Innovation Point 4 — Clean DC Conditioning for Sensitive Logic. A multi-stage resistor-capacitor filtering network smooths charger output and suppresses ripple and transient noise before it reaches the backplane. In electrically noisy process environments, this improves the reliability of processor and I/O cards sharing the same power subsystem.
- Innovation Point 5 — “Universal” XPM Architecture. As a Universal XPM Charger, the 51309206-125 is designed to support a range of PWA / PM battery configurations within the Process Manager family. This flexibility simplifies spare-parts logistics and reduces the risk of ordering the wrong board for a mixed-asset plant.
Application Cases and Industry Value
Case 1 — Refinery Distributed Control System Power Upgrade, North America. A plant operating a Honeywell TDC 3000 / Process Manager cell experienced repeated battery-related alarms after a scheduled substation maintenance shutdown. Investigation showed the original charger assembly was no longer maintaining proper float voltage. The maintenance team installed a tested Honeywell 51309206-125 PWA PM Universal Charger-CRP, reconnected the battery leads under controlled conditions, and verified charge output at the terminals. Post-replacement monitoring showed stable charge behavior and no recurrence of battery alarms through several subsequent utility outages. The refinery reported lower unplanned maintenance labor and greater confidence in its control-system continuity plan.
Case 2 — Combined-Cycle Power Plant, Asia. In a turbine auxiliary control room, the operations team standardized critical-spares holdings across multiple XPM power housings and qualified the 51309206-125 as the preferred charger-board replacement. During a planned outage, technicians practiced a powered isolation and board-swap procedure, confirming status LED behavior and charge voltage before returning the system to service. Plant engineers credited the standardized spare strategy with reducing mean time to repair (MTTR) and avoiding an emergency procurement at premium pricing.
Across both cases, the 51309206-125 delivered the same three forms of value: preserved automation availability, reduced maintenance exposure, and protection of control-system memory and safety during power events—without forcing a costly full DCS replacement.
Related Product Combination Solutions
| Model | Role & Synergy with 51309206-125 |
|---|---|
| MU-PSRX04 | Process Manager power system housing family in which the 51309206-125 charger board is commonly installed—match exact host assembly before ordering. |
| 51309206-100 / 51309206-200 | Alternate/earlier assemblies in the 51309206 charger family; used for cross-reference and legacy system compatibility checks. |
| 51305072-300 (CLCN-B) | LCN Cable-B communication paddle board for TDC 3000 / Experion PKS node communication—often supported by the same PM/XPM power subsystem. |
| 51305072-200 (CLCN-A) | Cable-A counterpart to the CLCN-B; paired with the -300 to form redundant LCN A/B communication. |
| MU-PAOX03 | 16-channel 4–20 mA analog output module; representative PM I/O card drawing conditioned power from the 51309206-125-managed power housing. |
| TC-IAH161 / TC-IXL061 | Experion / PM-series analog input modules that benefit from stable, filtered backup power and clean system power. |
| PM I/O Chassis / Backplane | The card cage and backplane into which the 51309206-125 seats via its J1 DIN 41612 connector to distribute power and status signals. |
| Process Manager Battery / Supercapacitor Module | The energy-storage device charged and monitored by the PWA PM Universal Charger- |
