Description
Application Scenarios
In a recent upgrade at a regional power plant in Southeast Asia, engineers faced challenges with voltage instability during peak load conditions. The existing analog AVR struggled to maintain consistent voltage levels, leading to frequent fluctuations and potential equipment damage. By installing the WOODWARD DECS-100-B15, the plant achieved precise voltage control, significantly improving power quality and reducing the risk of voltage-related disruptions.
Another compelling use case involves a remote telecommunications facility in Northern Canada, where reliable backup power is critical. The site relies on a diesel generator equipped with the WOODWARD DECS-100-B15 to provide stable voltage during grid outages. The AVR’s ability to quickly respond to load changes ensures that sensitive communication equipment remains operational, even during sudden power demands or fluctuations.
Parameter
| Main Parameters | Value/Description |
|---|---|

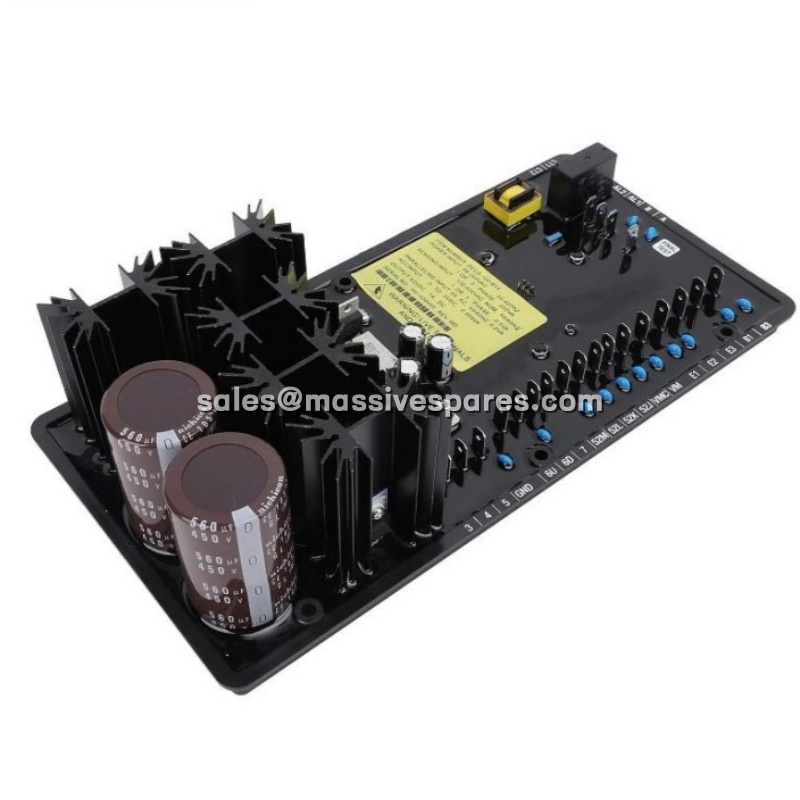

| Product Model | DECS-100-B15 |
| Manufacturer | WOODWARD |
| Product Category | Automatic Voltage Regulator (AVR) |
| Control Type | Digital excitation control |
| Voltage Regulation Accuracy | ±0.5% of setpoint |
| Input Voltage | 24 V DC or 90-264 V AC |
| Output Current | Up to 10 A continuous |
| Frequency Range | 10-70 Hz |
| Communication Interface | RS-232/RS-485, Modbus compatible |
| Operating Temperature | -40°C to +70°C (industrial grade) |
| Storage Temperature | -55°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (WxHxD) | 200 mm x 150 mm x 75 mm (approx.) |
| Mounting | Panel mount |
| Certifications | CE, UL, IEC 60034-16 compliant |
Technical Principles and Innovative Values
- Innovation Point 1: Advanced Digital Signal Processing
The WOODWARD DECS-100-B15 employs state-of-the-art digital signal processing (DSP) technology to achieve precise voltage regulation. Unlike analog AVRs, it offers faster response times and greater accuracy, ensuring stable generator output under varying load conditions. - Innovation Point 2: Adaptive Control Algorithms
The regulator features adaptive control algorithms that automatically adjust to changing generator and load conditions. This ensures optimal performance across a wide range of operating scenarios, from no-load to full-load conditions. - Innovation Point 3: Comprehensive Protection Features
Built-in protection functions include over-excitation limiting, under-excitation limiting, loss-of-potential detection, and field-overcurrent protection. These features safeguard the generator and excitation system from potential damage, enhancing overall system reliability. - Innovation Point 4: User-Friendly Configuration and Monitoring
The WOODWARD DECS-100-B15 offers intuitive configuration through its front-panel interface or PC-based software. Real-time monitoring of key parameters allows operators to quickly assess system performance and make necessary adjustments. - Innovation Point 5: Robust Design for Extreme Environments
Engineered to withstand harsh industrial conditions, the AVR features a rugged enclosure and conformal-coated PCB. This ensures reliable operation in extreme temperatures, high humidity, and corrosive atmospheres, making it suitable for the most demanding applications.
