Description
Application Scenarios
In a shipboard power management system where three diesel generators operate in parallel, uneven load distribution frequently caused one generator to carry excessive load while others ran at inefficient low loads. This imbalance accelerated mechanical wear on the overloaded unit and increased fuel consumption across the fleet. The 8408-005 solved this by continuously monitoring each generator‘s output through 3-phase CT inputs and adjusting speed control signals to maintain equal load sharing within ±1% accuracy.
Operators reported that the onboard LCD interface enabled immediate visibility into load percentages without external monitoring tools, allowing rapid adjustments during maneuvering or heavy load steps. In another case, a utility plant with two parallel generators experiencing frequency oscillation during load transitions deployed the 8408-005 to provide isochronous load sharing, effectively stabilizing frequency during sudden load changes.
Parameters
| Main Parameters | Value/Description |
|---|---|

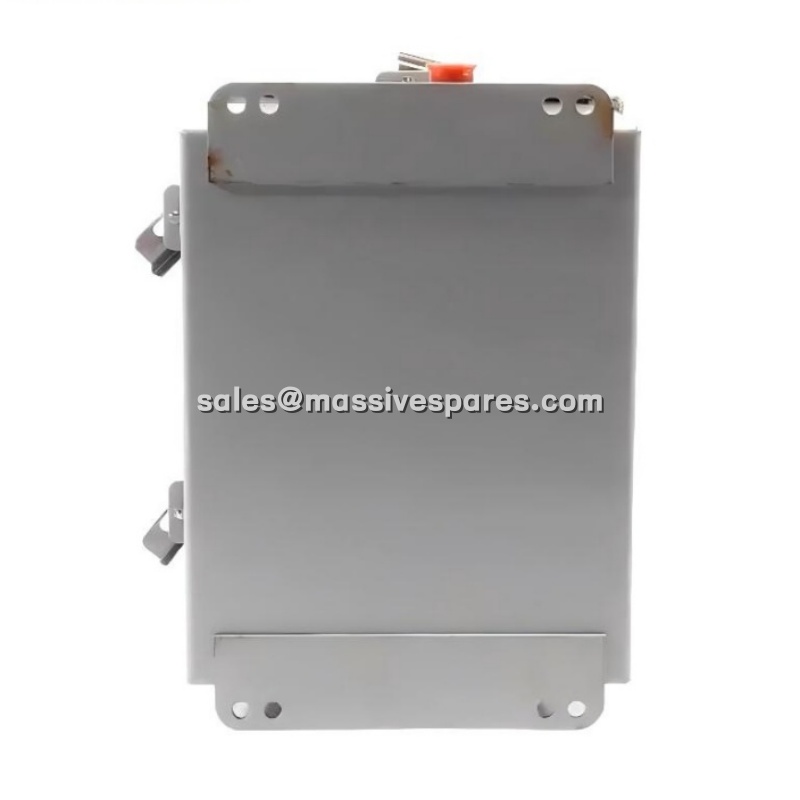

| Product Model | 8408-005 |
| Manufacturer | Woodward |
| Product Category | Generator Loading Control Module |
| Supply Voltage | 18–32 VDC nominal (control circuit), approximately 5W |
| Frequency Compatibility | 50 Hz / 60 Hz (also supports 50–400 Hz range) |
| Load Sharing Accuracy | Within ±1% |
| Control Modes | Isochronous load sharing, Droop control |
| Display | LCD interface for monitoring and configuration |
| Operating Temperature | -20°C to +70°C (storage to +85°C) |
| Dimensions | 273.6 × 214.1 × 59.2 mm |
| Weight | Approximately 1.5 kg (1397 g) |
| Installation | Panel or rack mount in generator control cabinets |
Technical Principles and Innovative Values
Innovation Point 1 – Precision Load Distribution Algorithms. The 8408-005 employs electronic load-sharing algorithms that maintain balanced kilowatt distribution across networked generators. This ±1% accuracy prevents any engine from carrying disproportionate load, significantly reducing mechanical wear and extending the lifespan of the entire generator fleet.
Innovation Point 2 – Versatile Control Logic Architecture. The module supports both isochronous load sharing for isolated grids and droop control for parallel operation with utility sources. This flexibility allows engineers to stabilize frequency even during sudden, massive load steps in industrial plants or shipboard power systems.
Innovation Point 3 – Integrated LCD Diagnostics. The onboard LCD screen provides real-time visibility into load percentages and system status. This interface eliminates the need for external monitoring tools during routine configuration, enabling rapid onsite adjustments and troubleshooting.
Innovation Point 4 – Comprehensive Protective Safeguards. Built-in frequency detection and overload protection circuits continuously monitor generator health. The 8408-005 initiates automatic load adjustments or protective trips upon detecting voltage instability, safeguarding sensitive downstream electrical equipment.
Innovation Point 5 – Adaptive Frequency Handling. The internal circuitry automatically identifies and regulates both 50 Hz and 60 Hz systems, making the 8408-005 a universal choice for global marine vessels and international industrial utilities without requiring hardware modifications.
