Application Scenarios
A refinery ESD cabinet houses a Tricon II safety system monitoring emergency shutdown valves across a hydrocracking unit. The field wiring from 16 limit switches and solenoid valves arrives at the marshalling panel, but terminating these directly onto the I/O module pins invites wiring errors, loose strands, and inadequate isolation—any of which could compromise the SIL3 certification of the safety loop. The Triconex 2658 solves this by providing a factory-built termination interface: field cables land on the 2658’s screw terminals, and the module’s edge connector mates with the Tricon II backplane, routing each signal 1:1 to the associated I/O module. When a technician needs to verify a suspect shutdown valve circuit during a turnaround, the per-channel LED indicators on the 2658 show open or short conditions at a glance, eliminating the need to probe live terminals inside the safety cabinet .

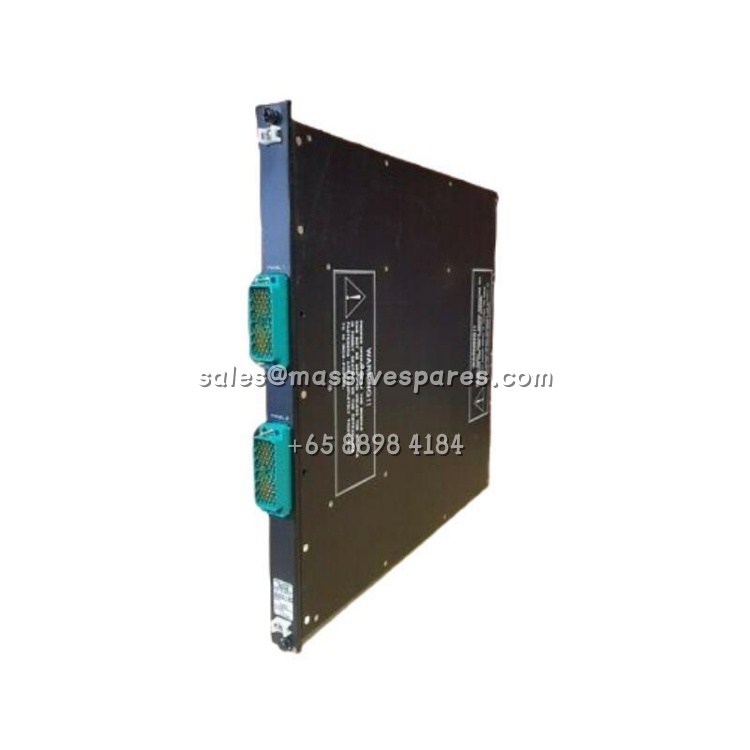

Parameter
| Main Parameters | Value / Description |
|---|---|
| Product Model | 2658 (7400096-200) |
| Manufacturer | Triconex / Invensys |
| Product Category | Terminator Interface Module (I/O Connection Module) |
| Channel Count | 16 digital I/O points (field side) |
| Isolation Rating | 1500 VAC (field-to-backplane, per channel) |
| Backplane Interface | Tricon II dedicated I/O bus |
| Power Input | 24 VDC ±10% (from chassis backplane) |
| Power Draw | 6 W maximum |
| Operating Temperature | -40°C to +70°C |
| Shock Rating | 30 G operating, 50 G non-operating |
| Vibration Rating | 5 G operating, 10 G non-operating |
| Dimensions | 8.5″ H × 4.5″ W × 9.5″ D |
| Weight | 3.5 lbs (1.59 kg) |
| Certifications | IEC 61508 SIL3, TÜV, CE, UL |
Technical Principles and Innovative Values
Innovation Point 1: Passive isolation without onboard intelligence. The 2658 contains no microcontroller or firmware. Its sole function is to route signals through a reinforced dielectric barrier while maintaining channel-to-channel mapping to the I/O module. This passivity is deliberate: in a SIL3 safety loop, fewer active components mean fewer failure modes. A firmware crash or watchdog fault cannot occur in a device that has no processor. The isolation barrier withstands 1500 VAC, preventing field-side transients from propagating into the Tricon backplane and compromising the triple modular redundant processors .
Innovation Point 2: Per-channel LED diagnostics at the termination point. Most termination panels are dumb pass-through devices. The 2658 integrates status LEDs for each of its 16 channels, indicating open or short circuit conditions on the field wiring. In a safety system where a spurious trip costs tens of thousands of dollars per hour, the ability to distinguish a field wiring fault from an I/O module fault without opening the cabinet or using a multimeter accelerates troubleshooting significantly. Maintenance technicians can scan the LED array during routine rounds and log degrading channels before they cause a trip .
Innovation Point 3: Elimination of hand-wired marshalling errors. Traditional SIS installations relied on custom marshalling panels where technicians crimped and terminated each field wire individually. Loose strands, incorrect terminal assignments, and inadequate torque were common causes of intermittent signals and failed proof tests. The 2658 moves this wiring to a factory-built, tested interface where each terminal maps 1:1 to a known I/O module pin. Field service notes indicate this approach cuts wiring time by approximately 60% and eliminates the ground-loop issues that plagued hand-wired panels .
