Product Overview

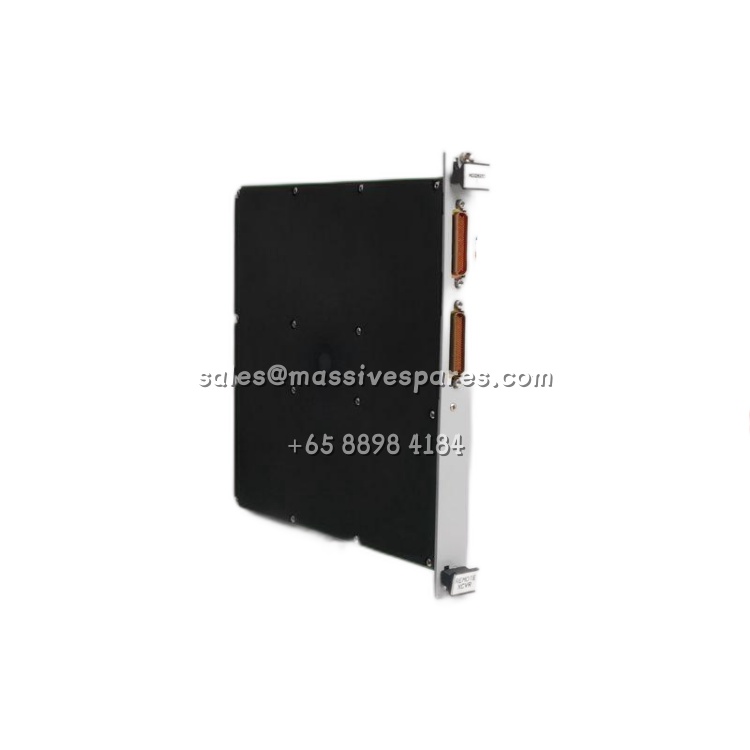

The CTI 2500-RIO-A is an RS485 Remote Base Controller (RBC) manufactured by Control Technology Inc. as part of the 2500 Series® Classic I/O platform, designed to allow a remotely located CTI 2500 Series® or Siemens SIMATIC® 505 I/O base to operate as a slave node on a twisted-pair RS485 Remote I/O channel. Installed in the rear slot of the remote I/O base, the 2500-RIO-A bridges the local backplane to a differential RS485 network that reaches up to 1000 metres from the host CPU, giving system designers the freedom to distribute discrete, analog, and specialty I/O across widely separated process areas without running long parallel cable runs back to the central controller.
Functionally, the CTI 2500-RIO-A serves as the direct, pin-compatible successor to the legacy Siemens 505-6851-A and 505-6851-B RBC modules, dropping into existing bases with no rewiring required. It operates in all currently available CTI and Siemens 4-, 8-, 11-, and 16-slot I/O bases, supports every CTI and Siemens discrete, analog, and special-function module in those bases, and — when installed in a 2500-R11-A or 505-6511 redundant base — enables full dual-media and hardware RBC redundancy for high-availability installations.
Each RS485 Remote I/O channel driven by a CTI 2500 Series or Simatic 505 CPU can carry up to 15 remote bases, so a single processor can coordinate a large distributed I/O footprint through cascaded 2500-RIO-A modules. The module incorporates an LED status display for error codes and station address, a built-in RS232C serial port for remote PLC programming, and switch-selectable station address and baud rate settings. Although the CTI 2500-RIO-A has now been formally designated a mature product — replaced by the pin-compatible 2500-RIO-B — it remains a critical spares item for the very substantial installed base of 2500 Series and Simatic 505 systems operating in process industries worldwide.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 2500-RIO-A |
| Manufacturer | Control Technology Inc. (CTI) |
| Product Type | RS485 Remote Base Controller (RBC) |
| Compatible CPUs | CTI 2500 Series® and Siemens SIMATIC® 505 (545/555/575 family) |
| Replaces | Siemens 505-6851-A and 505-6851-B (no rewiring) |
| Communication Interface | RS485 differential twisted pair (9-pin D-sub female) |
| Communication Rate | 1 Mbit/s on Remote I/O channel |
| Maximum Cable Distance | 1000 m (3,280 ft) between CPU and remote base |
| Remote Bases per CPU | Up to 15 (per RS485 Remote I/O channel) |
| Secondary Port | RS232C, 9-pin D-sub male (remote PLC programming) |
| Port Isolation | 1500 VDC (communication port isolation) |
| Status Display | LED display for error codes and station address |
| Output State on Comms Loss | Switch-selectable: Off (all outputs off) or Freeze (outputs hold last value) |
| Switch Options | RBC station address; serial port baud rate |
| Backplane Power | 2 W maximum |
| Module Size | Double-wide slot |
| Shipping Weight | 1.5 lb (0.68 kg) |
| Compatible Bases | All CTI and Siemens 4-, 8-, 11-, and 16-slot bases; 2500-R11-A and 505-6511 redundant bases |
| Firmware Revisions | Up to V7.04 |
Main Features and Advantages
Drop-In Siemens Legacy Replacement: The defining strength of the 2500-RIO-A is its pin-compatible fit with the Siemens 505-6851-A and 505-6851-B RBC modules. Plants that built distributed I/O around TI/Simatic 505 processors decades ago can replace a failed RBC with a CTI 2500-RIO-A without touching field wiring, without changing base hardware, and without rewriting application logic — dramatically reducing mean time to repair in facilities where original Siemens spares are long obsolete.
Extended Distributed I/O Reach: Operating over standard twisted-pair RS485 at 1 Mbit/s, the 2500-RIO-A carries I/O data up to 1000 metres from the host CPU. A single Remote I/O channel accommodates up to 15 remote bases, so one CTI 2500 Series or Simatic 505 processor can coordinate a large distributed I/O footprint spread across multiple process areas, buildings, or outdoor installations. Communication ports are isolated to 1500 VDC, protecting the CPU backplane from ground potential differences that commonly exist between separated buildings.
Built-In Redundancy Support: When installed in a 2500-R11-A or 505-6511 redundant base, the CTI 2500-RIO-A enables full dual-media and hardware RBC redundancy. Two modules can operate in the same base so that loss of one controller, one cable, or one media path does not interrupt I/O scanning — a critical capability for continuous-process plants where an unscheduled I/O outage would trip production.
Diagnostics and Local Commissioning: An integrated LED status display reports error codes and the configured station address at a glance, so technicians can verify health and troubleshoot network problems without connecting a laptop. Switch-selectable RBC station address and serial-port baud rate allow rapid address assignment across multiple bases during installation, and a switch-selectable fail-safe mode determines whether remote outputs go to Off or hold their last state (Freeze) when the Remote I/O channel is lost — letting engineers match failure behaviour to process safety requirements.
Remote Programming Convenience: The 2500-RIO-A carries an RS232C programming port, allowing a programming terminal or laptop connected at the remote base to reach the PLC across the RS485 Remote I/O channel — a practical feature for commissioning and maintenance at remote substations or tank farms where running a separate programming cable back to the CPU would be impractical.
Mature, Proven Firmware: Multiple firmware revisions, culminating in V7.04, have addressed legacy interaction issues with specific 505-series I/O modules (high-speed counters, analog output cards, and 16-point analog inputs), so a current-revision CTI 2500-RIO-A provides stable, well-characterized behaviour across the full range of supported CTI and Siemens I/O.
