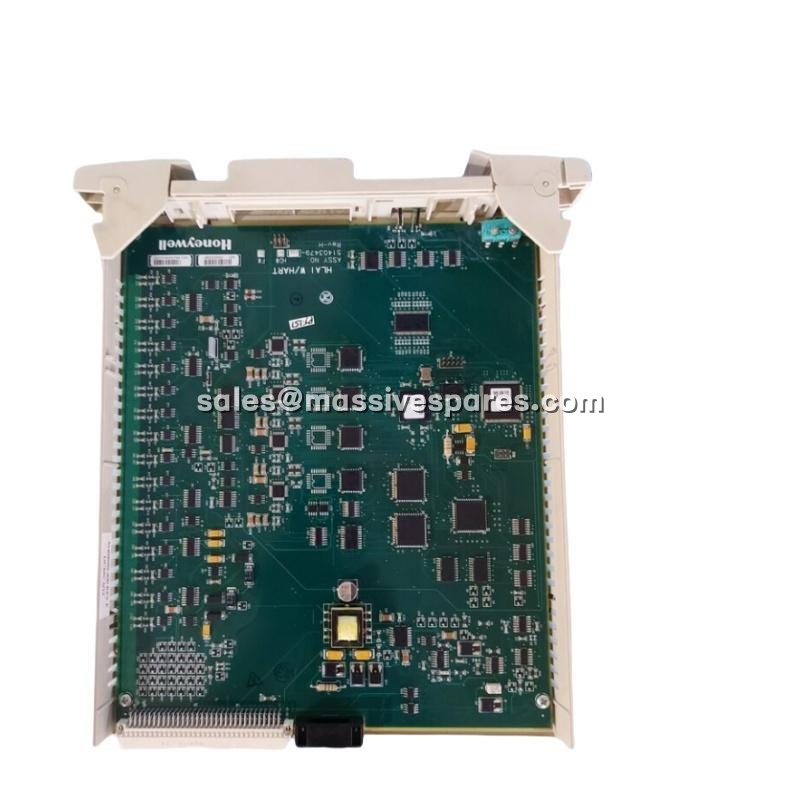

51403479-150 Honeywell MC-PHAI01 High-Level Analog Input Module with HART

Description

Application Scenarios

In a refinery’s atmospheric distillation unit, temperature, pressure, and flow transmitters are distributed across the process area, often in classified or harsh environments. A single analog input module must reliably digitize these 4–20 mA signals while simultaneously extracting secondary variables and diagnostic data from HART-enabled instruments. When a transmitter’s measurement drifts or its impulse line partially plugs, the HART layer on the 51403479-150 can surface this degradation before it affects the primary process variable, allowing maintenance to act during planned windows rather than during an unplanned upset. For operators in continuous-process industries, this early visibility into field instrument health—delivered without additional wiring or multiplexers—directly reduces the risk of undetected measurement faults propagating into control decisions.

Parameter

Innovation Point 1: HART Digital Overlay on Analog Loops. The 51403479-150 embeds a HART modem that superimposes digital frequency-shift keying signals onto the standard 4–20 mA analog carrier. This allows simultaneous transmission of the primary process variable and secondary digital data—device status, calibration range, diagnostic codes—over existing two-wire instrument cabling. The module’s internal filters separate the analog baseline from the high-frequency HART telemetry without compromising analog update rates, enabling remote instrument management directly through the DCS.

Innovation Point 2: High-Density 16-Channel Architecture. With 16 input channels in a single module, the 51403479-150 reduces cabinet footprint and wiring complexity compared to lower-density analog input cards. Each channel maintains independent isolation and signal conditioning, so a fault on one loop—such as a shorted transmitter or ground loop—does not degrade adjacent channels. This density-to-reliability balance is particularly valuable in brownfield retrofits where rack space is constrained but channel count remains high.

Innovation Point 3: Conformal Coating for Environmental Resilience. The “MC” prefix in MC-PHAI01 denotes conformal coating applied to the PCB assembly. This protective layer guards against moisture, sulfur compounds, conductive dust, and airborne contaminants prevalent in refinery, chemical, and power generation control rooms. In installations where atmospheric corrosion would otherwise shorten card life, the coated 51403479-150 maintains signal integrity over extended service intervals.

Application Cases and Industry Value

Case 1: Refinery Instrument Health Monitoring via HART. A Gulf Coast refinery operating a TDC 3000 system with HART-capable transmitters deployed 51403479-150 modules to replace legacy analog input cards lacking digital communication capability. After commissioning, instrument technicians discovered that several flow transmitters were reporting “device variable alert” status via HART while their 4–20 mA signals remained within normal ranges—indicating early signs of sensor drift. By addressing these transmitters proactively, the refinery avoided three potential measurement-related process upsets over a six-month period. The HART data, accessible through the DCS operator station without field visits, reduced routine instrument inspection rounds by approximately 30%.

Case 2: Power Plant Balance-of-Plant Signal Acquisition. A combined-cycle power plant required accurate monitoring of cooling water conductivity, condensate flow, and auxiliary steam parameters from HART-enabled transmitters. The 51403479-150 was selected for its combined analog precision and HART diagnostic access. During a scheduled outage, maintenance personnel used the module’s HART pass-through capability to recalibrate twelve transmitters remotely, completing the task in a single shift instead of the two days previously required for field-by-field calibration.
