Description
Application Scenarios
In a typical automotive parts manufacturing facility, multiple Allen-Bradley 1336 series drives power conveyor systems and robotic welding stations across the production floor. When voltage sags or transients from the main supply began causing intermittent drive faults and unplanned downtime, maintenance engineers identified the control transformer as the weak link in aging drive panels. By retrofitting with the AB 1336-T-SP5A transformer, the facility restored stable control voltage to the drive logic boards and gate driver circuits. The transformer’s isolation characteristics effectively decoupled the sensitive control electronics from line noise generated by adjacent welding equipment, eliminating nuisance faults and extending the operational lifespan of the drives. This solution addressed a critical pain point: maintaining legacy drive systems without costly full-panel replacements, while ensuring production continuity in a high-demand manufacturing environment.
Parameter
| Parameter | Value/Description |
|---|---|

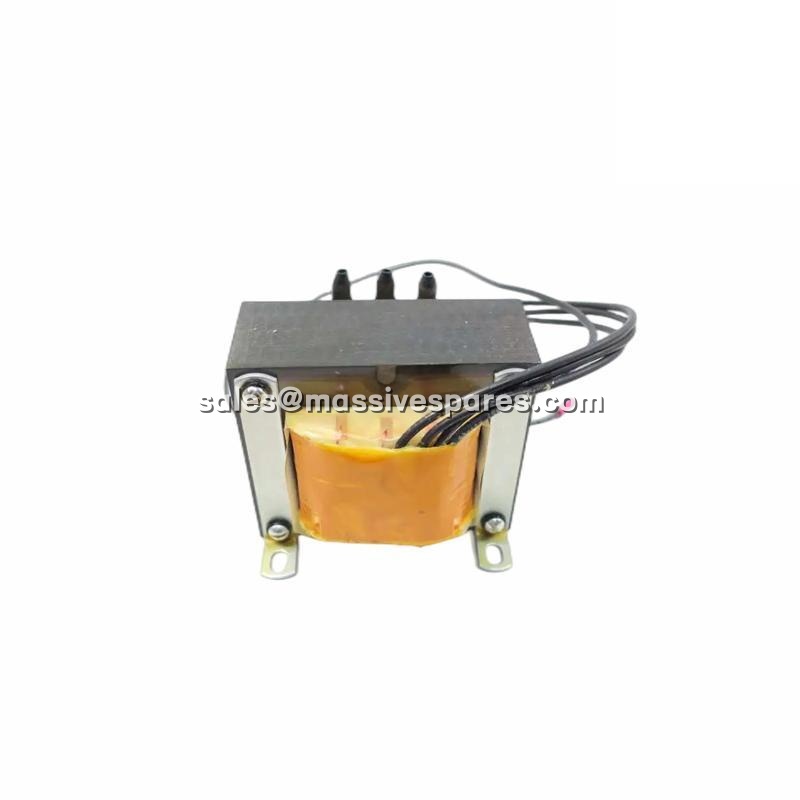

| Product Model | AB 1336-T-SP5A |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Category | Control Transformer / Power Conversion Module |
| Input Voltage | 380 VAC / 415 VAC / 460 VAC (selectable primary) |
| Power Rating | 500 VA (typical for drive control circuits) |
| Frequency Range | 50/60 Hz |
| Efficiency | 98% (typical) |
| Insulation Class | Class H (suitable for high-temperature environments) |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP20 (basic dust protection for panel mounting) |
| Isolation Ratio | 1:1 (signal integrity preservation) |
| Dimensions | Compact form factor optimized for drive panel integration |
Technical Principles and Innovative Values
Innovation Point 1: Purpose-Built for 1336 Drive Platforms. Unlike generic industrial transformers, the AB 1336-T-SP5A is engineered specifically to match the electrical and mechanical requirements of Allen-Bradley 1336 series drives. Its selectable primary voltage taps (380V/415V/460V) accommodate diverse plant power configurations without external adapters, simplifying retrofit and replacement procedures.
Innovation Point 2: Advanced Magnetic Shielding for Noise Immunity. The transformer incorporates magnetic shielding technology that minimizes electromagnetic interference, reducing noise levels to below 20 dB in typical operating conditions. This ensures that sensitive drive control signals remain clean and stable, preventing spurious faults in high-EMI environments such as welding shops or motor test bays.
Innovation Point 3: Class H Insulation for Thermal Resilience. With Class H insulation rating, the AB 1336-T-SP5A withstands hotspot temperatures up to 180°C, providing substantial thermal headroom in poorly ventilated drive enclosures or high-ambient-temperature applications. This design choice directly translates to extended service life and reduced failure rates compared to standard insulation class transformers.
Innovation Point 4: High-Efficiency Power Conversion. Achieving 98% efficiency, the transformer minimizes energy losses and heat generation within the drive panel, contributing to lower cabinet temperatures and reduced cooling requirements. For facilities operating dozens of drives continuously, this efficiency gain accumulates into measurable energy savings over the equipment lifecycle.
