Description
Application Scenarios
A manufacturing facility running a high-speed packaging line encountered intermittent signal dropouts on its conveyor synchronization system. The existing I/O modules struggled to maintain consistent data throughput when vibration levels increased during peak production hours. After integrating the 15-131623-00 module into the control cabinet, the system achieved more stable signal processing and communication reliability. The maintenance team reported a notable reduction in unplanned line stoppages, directly improving overall equipment effectiveness.
Parameters
| Parameter | Value/Description |
|---|---|

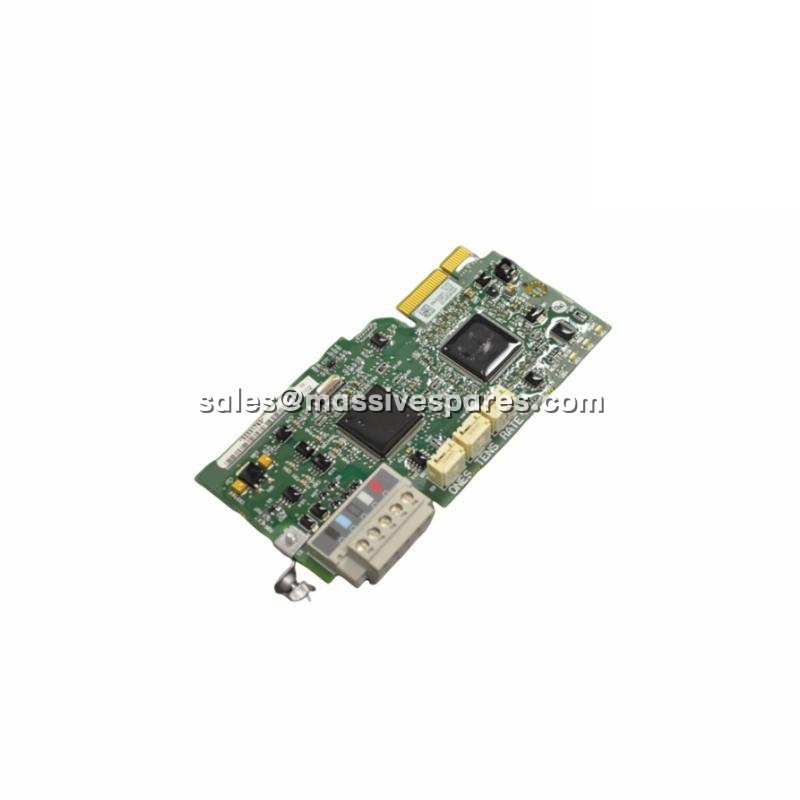

| Product Model | 15-131623-00 |
| Manufacturer | AB Electronics |
| Product Category | Control System Module |
| Operating Voltage | 24V DC |
| Communication Interface | RS-485, Modbus TCP/IP |
| Input/Output Channels | 16 channels (configuration varies by application) |
| Operating Temperature | -20°C to +60°C |
| Environmental Rating | IP20 to IP67 (depending on configuration) |
| Dimensions | Approx. 100–125 mm × 60–105 mm × 35–60 mm |
| Weight | 0.25–0.5 kg |
| Mounting | Rack or panel mount |
Technical Principles and Innovative Values
- Innovation Point 1: Flexible Communication Architecture. The 15-131623-00 supports multiple communication protocols including RS-485 and Modbus TCP/IP, enabling seamless integration with both legacy and modern control systems. This dual-protocol capability reduces the need for external gateways, simplifying network topology.
- Innovation Point 2: Compact Ruggedized Design. With dimensions optimized for tight cabinet spaces and an environmental rating suitable for challenging conditions, the 15-131623-00 maintains reliable operation in environments subject to dust, moisture, and temperature variation. Its lightweight construction facilitates straightforward installation and replacement.
- Innovation Point 3: Real-Time Response Performance. Engineered for fast data processing, the module supports response times suitable for real-time monitoring and control applications, making it appropriate for synchronization tasks and process loops requiring timely signal handling.
