Description
Application Scenarios
A 600 MW coal-fired unit schedules a 72-hour outage. The induced-draft fan is driven by an ABB ACS6000 medium-voltage drive, and during the pre-start check the DCS shows a stale “drive ready” bit while the local HMI displays a controller-fault code. The electrical team spends four hours chasing the fiber link, the gate units, and the encoder before finding the culprit: the UDC920 BE01 in the control rack, whose BGA solder joints have fatigued after years of daily thermal cycling. Fan speed is correct, torque control is correct—the signal simply never leaves the rack.
Replacement with a verified ABB 3BHE034863R0001 restores the link in under twenty minutes. Cooling-fan run status, bearing-temperature switches, vibration trips, breaker-closed feedback, and the 4–20 mA speed and current values all flow again to the DCS, and the high-voltage breaker closing sequence completes without a retry. More importantly, the plant avoids a post-outage start delay that, at full load, costs far more than the board itself. This is the quiet value of 3BHE034863R0001: it is the component that turns a drive from an isolated cabinet into a visible, trustworthy node on the control network—and eliminates the “data island” that turns a process upset into a scramble.
Parameter
| Main Parameters | Value/Description |
|---|---|

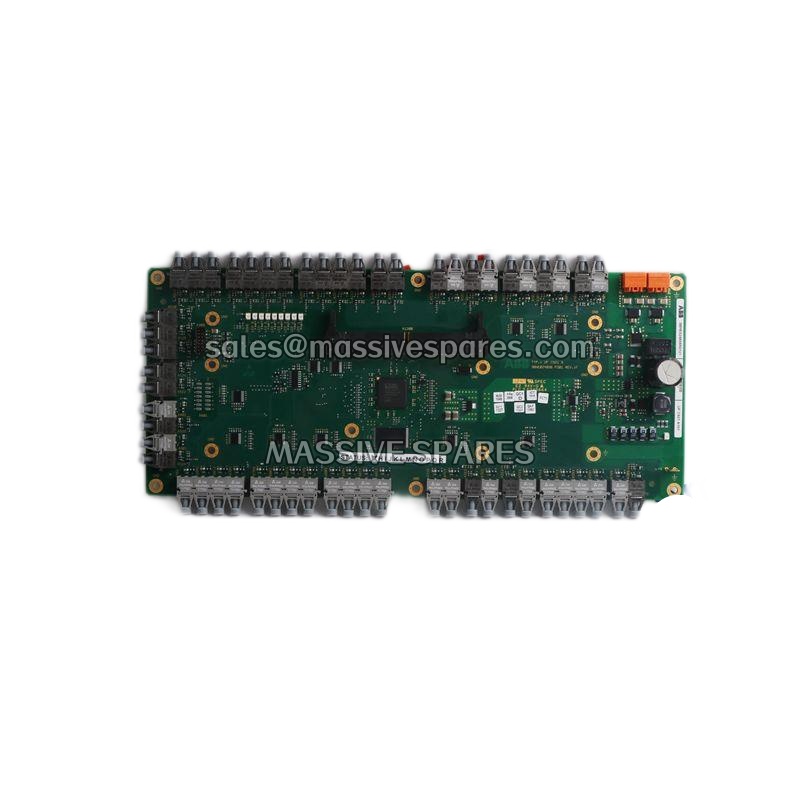

| Product Model | 3BHE034863R0001 (UDC920 BE01; type designation UD C920 BE101) |
| Manufacturer | ABB (Switzerland / Sweden production lines) |
| Product Category | Control and communication PCB module, ASE2B class, supplied with shielded housing |
| Primary Function | Motor-control algorithm execution, signal conditioning, I/O management, fieldbus gateway, fault logging |
| Compatible Platforms | ACS2000 (315 kW–1.2 MW, 2.3–4.16 kV), ACS6000 (315 kW–27 MW, 2.3–11 kV), UNITROL 5000/6000, AC 800PEC |
| Processor / OS | 32-bit embedded RISC processor running VxWorks real-time operating system |
| Memory | 16 MB SDRAM + 8 MB Flash (typical for the ASE2B implementation) |
| Communication | Dual 100 Mb/s Ethernet (redundant), PROFIBUS DP, Modbus TCP/RTU, RS-232/RS-485; slots for FIOR-series adapters (PROFINET, EtherNet/IP) |
| I/O Capability | Configurable DI/DO (24 V DC, sinking/sourcing), relay outputs, AI/AO supporting 4–20 mA and 0–10 V |
| Signal Performance | High-resolution ADC with channel-to-channel galvanic isolation; on-board per-channel diagnostics |
| Supply Voltage | 24 V DC, redundant 18–32 V DC input with on-board regulation |
| Power Dissipation | Low single-digit watts at the module level (system-dependent) |
| Status Indication | Front-panel LEDs for run, fault, communication, and I/O channel state |
| Operating Temperature | -25 °C to +70 °C (industrial grade; conformal-coated PCB) |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5 % to 95 % RH, non-condensing |
| Protection Rating | IP20, cabinet-internal installation |
| Mounting Method | 6U Eurocard / 19-inch control-rack plug-in card; hot-swap capable where firmware and backplane support it |
| Physical Dimensions | Approx. 299 mm × 126 mm × 44 mm (with housing) |
| Weight | Approx. 1.0 kg (with housing) |
| MTBF | > 100,000 hours (per ABB platform reliability data) |
| Compliance | CE, UL, RoHS; designed to IEC 61800-3 and IEC 61000-6-2/4 EMC levels |
| Lifecycle Status | Original production discontinued (obsolete); new-old-stock and tested-pulled units in circulation |
