Description
Technical Specifications

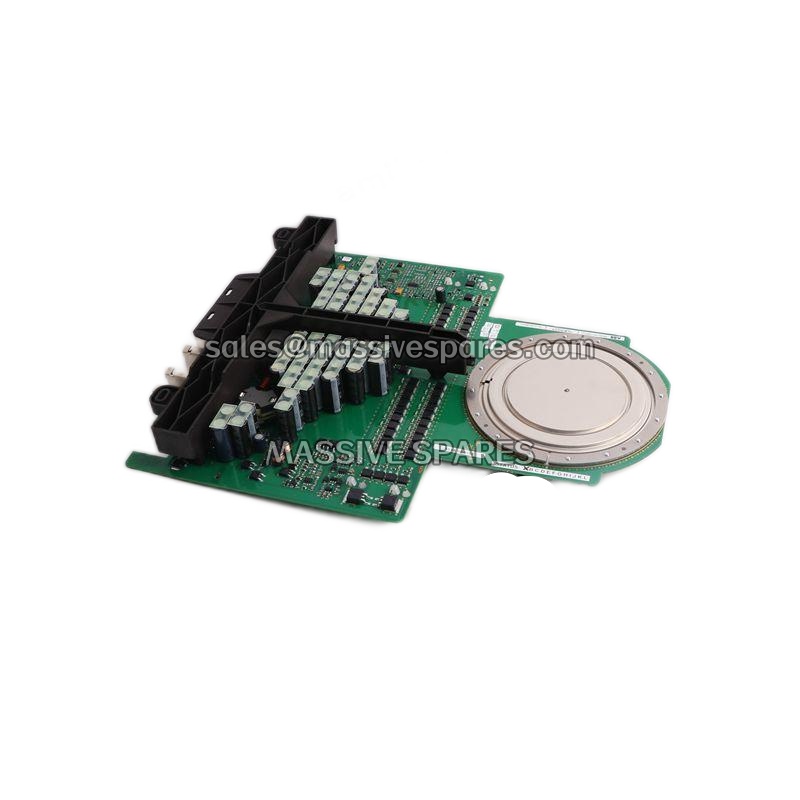

| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 5SHY 3545L0014 |
| Manufacturer | ABB |
| Product Type | IGCT (Integrated Gate-Commutated Thyristor) Module |
| Repetitive Peak Off-State Voltage (VDRM) | 4500 V |
| Average On-State Current (ITAV) | 3500 A |
| Maximum Surge Current (ITSM) | 75,000 A (non-repetitive) |
| On-State Voltage Drop | ≤ 1.62 V (typical) |
| Gate Unit Supply Voltage | 24 V DC nominal (isolated) |
| Control Interface | Fiber-optic Rx/Tx links |
| Cooling Method | Clamped to external heat sinks; air or liquid-cooled |
| Operating Junction Temperature | -40°C to +125°C |
| Physical Weight | Approximately 2.0–2.5 kg |
Main Features and Advantages
Press-Pack Construction for Enhanced Reliability: The ABB 5SHY 3545L0014 employs a press-pack mechanical design that replaces fragile wire bonds with metal-to-metal clamped contacts. This architecture provides uniform current distribution across the semiconductor wafer, low thermal resistance for efficient heat dissipation, and inherent short-circuit ruggedness. The wire-bond-free construction eliminates bond-wire fatigue—a common failure mode in high-cycle applications—making the ABB 5SHY 3545L0014 exceptionally reliable in applications with repeated thermal cycling such as traction, marine propulsion, and wind energy conversion.
Snubberless Turn-Off and Simplified System Design: By integrating an optimized gate drive path directly into the device structure, the ABB 5SHY 3545L0014 achieves fast turn-off times and lower switching losses compared to traditional GTO thyristors. This snubberless operation eliminates the need for complex external snubber circuits, simplifying overall power stack layout, reducing component count, and improving system reliability. The ABB 5SHY 3545L0014 delivers efficient power conversion without the additional losses associated with snubber networks.
Integrated Protection and Fiber-Optic Control: The ABB 5SHY 3545L0014 features an integrated gate driver unit that provides precise gate triggering, real-time diagnostics, and comprehensive protection against overcurrent, overtemperature, and short-circuit conditions. Bidirectional fiber-optic communication ensures complete galvanic isolation between low-voltage control signals and the high-voltage power stack, eliminating common-mode noise interference and enabling reliable operation in electrically hostile industrial environments.
