Description
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

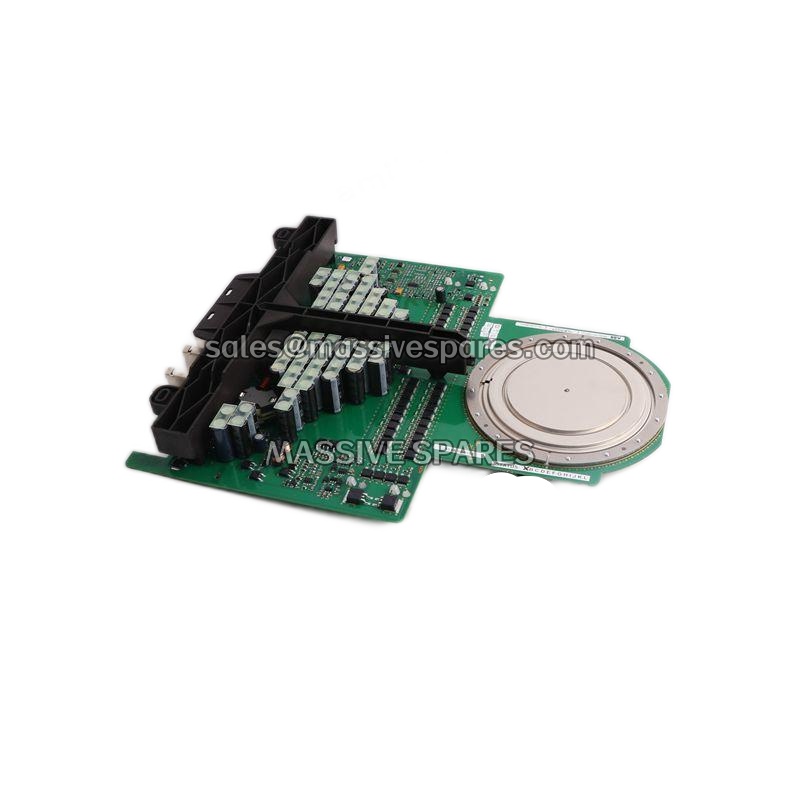

| Product Model | 5SHY6545L0001 / AC10272001R0101 / 5SXE10-0181 |
| Manufacturer | ABB |
| Product Type | High-Power IGCT/IGBT Power Module Assembly |
| Rated Blocking Voltage (Vces) | 4500 V – 6500 V DC (class dependent) |
| Rated Collector Current (Ic) | 450 A – 4500 A (configuration dependent) |
| Turn-Off Response Time | < 1 – 5 µs (IGCT mode) |
| Switching Frequency | Up to ~2 kHz (IGCT) / higher in IGBT mode |
| Gate Drive Interface | Fiber-optic, galvanically isolated (via 5SXE10-0181) |
| Control/Logic Supply | 24 V DC |
| Operating Junction Temperature | -40 °C to +125 °C |
| Storage Temperature | -40 °C to +85 °C |
| Overload Capacity | 150 % rated current for 60 s (with derating) |
| Baseplate / Substrate Material | AlSiC baseplate with AlN ceramic insulating substrate |
| Cooling Method | Forced air or water-cooled heatsink, thermal interface pad |
| Weight | Approx. 2.5 kg – 15 kg (cooling configuration dependent) |
Main Features and Advantages
High-Power Density and Ultra-Low Losses:
The ABB 5SHY6545L0001 employs state-of-the-art trench-gate field-stop IGBT chip technology alongside ABB’s transparent-anode IGCT design, delivering a remarkably low on-state voltage drop and minimized switching losses. This directly raises overall converter efficiency—typically at or above 97%—and reduces the thermal stress imposed on the module during continuous heavy-duty operation. The optimized internal geometry ensures balanced current sharing across paralleled chips and uniform heat flux over the substrate, which extends the service life of the ABB 5SHY6545L0001 in applications that run at full load for thousands of hours per year.
Precision Gate Driving with Layered Protection:
The 5SXE10-0181 driver board is electrically matched to the switching characteristics of the ABB 5SHY6545L0001, shaping gate charge and discharge profiles for fast, clean transitions with minimal overshoot. Its protection suite includes microsecond-class short-circuit response, overvoltage clamping, undervoltage lockout, and overtemperature supervision. Because the control path is coupled through fiber-optic links, full galvanic isolation separates low-voltage logic from the kilovolt power stage, protecting operators and upstream control hardware alike during grid transients, capacitor-charge events, or fault clearing.
Intelligent Supervision and Predictive Maintenance:
The AC10272001R0101 control board continuously samples key operating parameters of the ABB 5SHY6545L0001 and streams diagnostic data to the host PLC or DCS over standard industrial interfaces. This enables condition-based maintenance rather than fixed-interval overhauls, letting maintenance teams replace a degrading module during planned downtime instead of reacting to a failure. The board’s standardized connectors and modular architecture also shorten commissioning time and simplify future retrofits.
Superior Thermal and Mechanical Robustness:
ABB builds the module on an aluminum-silicon-carbide (AlSiC) baseplate paired with an aluminum-nitride (AlN) ceramic substrate. AlSiC’s coefficient of thermal expansion closely matches the silicon die, while AlN combines high thermal conductivity with excellent electrical isolation. The result is a structure that tolerates severe thermal cycling without delamination—verified through both active power-cycling and passive temperature-cycling test regimes—so the ABB 5SHY6545L0001 remains dependable in traction, mining, and offshore environments where temperature swings are extreme.
