Description
Application Scenarios
In a mid-sized wastewater treatment plant upgrade project, engineers faced a familiar dilemma: the existing relay-based control system could not meet growing remote monitoring requirements, yet a full DCS solution was prohibitively expensive. The plant ultimately selected the ABB BCU06-ETH C3 as its control core. The module uploads liquid level, pH, and flow data to the SCADA system via its 1×10/100M Ethernet port using Modbus TCP protocol, while its two RS232/RS485 serial ports connect to variable frequency drives for aeration fan speed regulation and a field HMI for status display. Operators can read tank levels and alarm information directly from the ABB BCU06-ETH C3‘s LCD screen without opening a laptop. This system has operated continuously for over four years without major faults, validating the module’s practical value in small-to-medium process control applications.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | ABB BCU06-ETH C3 (1SAP140100R1170) |
| Manufacturer | ABB |
| Product Category | PLC CPU Module (with LCD display and keypad) |
| Series | AC500 Programmable Controller Family |
| Processor | 32-bit high-performance processor |
| User Program Memory | 256 KB |
| Data Storage | SD card expansion / program backup supported |
| Ethernet Interface | 1×10/100 Mbps, Modbus TCP supported |
| Serial Interfaces | 2×RS232/RS485 (switchable), Modbus RTU supported |
| Local HMI | LCD display + operational keypad |
| Programming Standard | IEC 61131-3 (LD, FBD, ST, IL, SFC, CFC) |
| Power Supply | 24 V DC (±10%) |
| Operating Temperature | +5°C to +55°C |
| Protection Rating | IP20 |
| Mounting Method | DIN rail mounting |
| Expansion Capability | Supports full AC500 I/O module range |
Technical Principles and Innovative Values

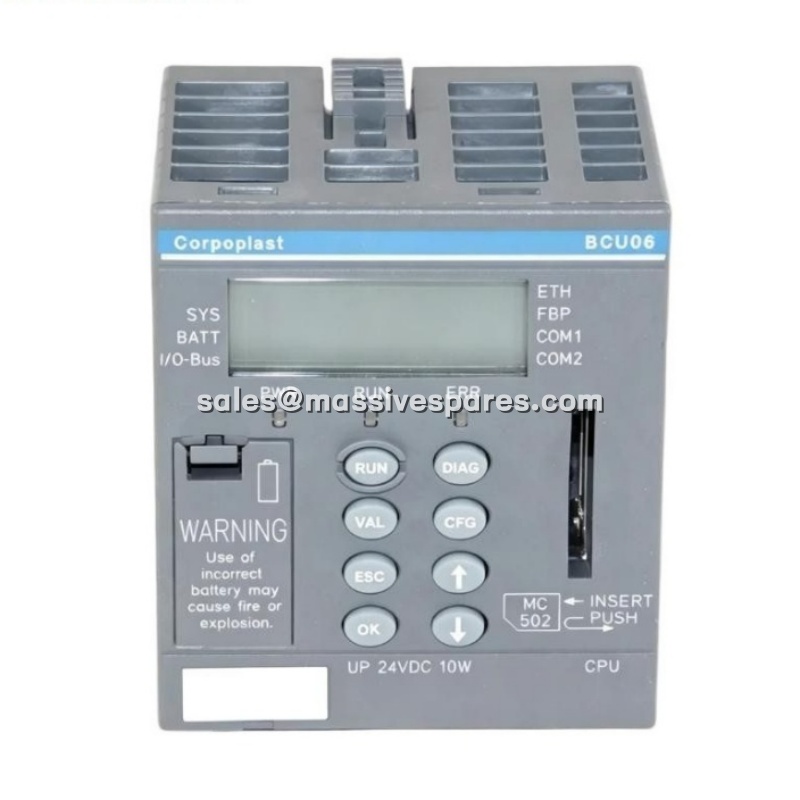

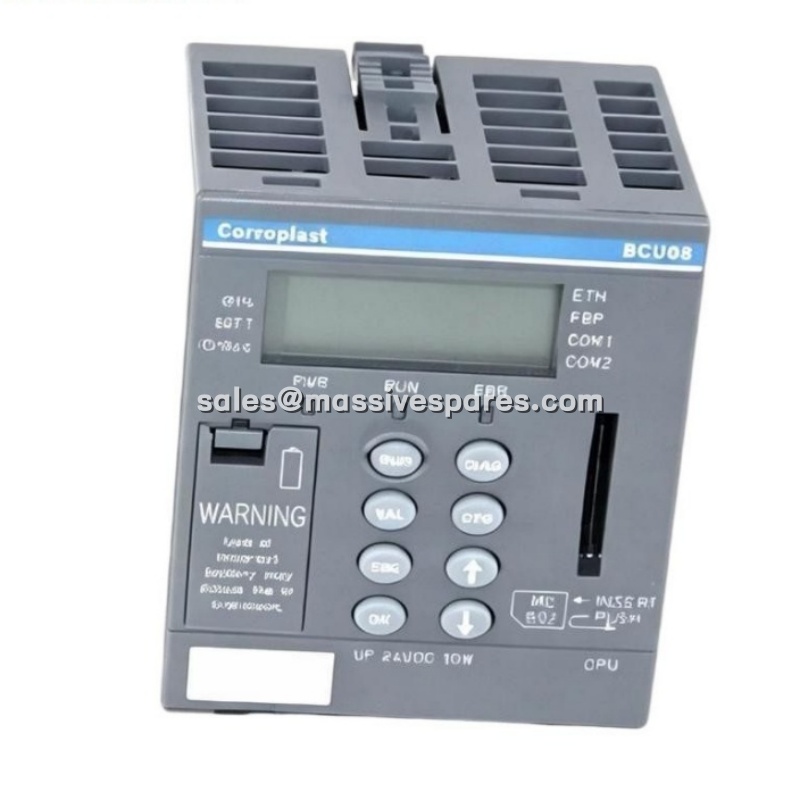

Innovation Point 1: Integrated Local Human-Machine Interface. Unlike conventional PLC CPUs that provide only LED status indicators, the ABB BCU06-ETH C3 integrates an LCD display and operational keypad directly on the front panel. This design enables field maintenance personnel to view program execution status, modify parameters, and read fault codes without carrying a programming laptop or connecting to an HMI. During commissioning, engineers can complete basic configuration directly at the cabinet door; during operation, operators can quickly confirm system health.
Innovation Point 2: SD Card Program Backup and Rapid Recovery. The ABB BCU06-ETH C3 features an SD card slot that supports backing up complete user programs to removable storage. When a module experiences hardware failure and requires replacement, maintenance personnel simply insert the SD card into the new module and power it up; the program restores automatically without requiring a computer for re-download. This capability reduces mean-time-to-recovery from the tens of minutes typical of conventional PLCs to just a few minutes.
Innovation Point 3: Multi-Protocol Communication Architecture with Flexible Expansion. The module provides simultaneous Ethernet and dual serial communication interfaces. The Ethernet port supports Modbus TCP for connecting to SCADA or upper-level management systems, while the two serial ports support Modbus RTU or free protocols for connecting VFDs, smart instruments, barcode readers, and other field devices. Combined with the extensive AC500 I/O expansion module range, the ABB BCU06-ETH C3 can be flexibly configured with digital, analog, and special function modules according to project requirements.
