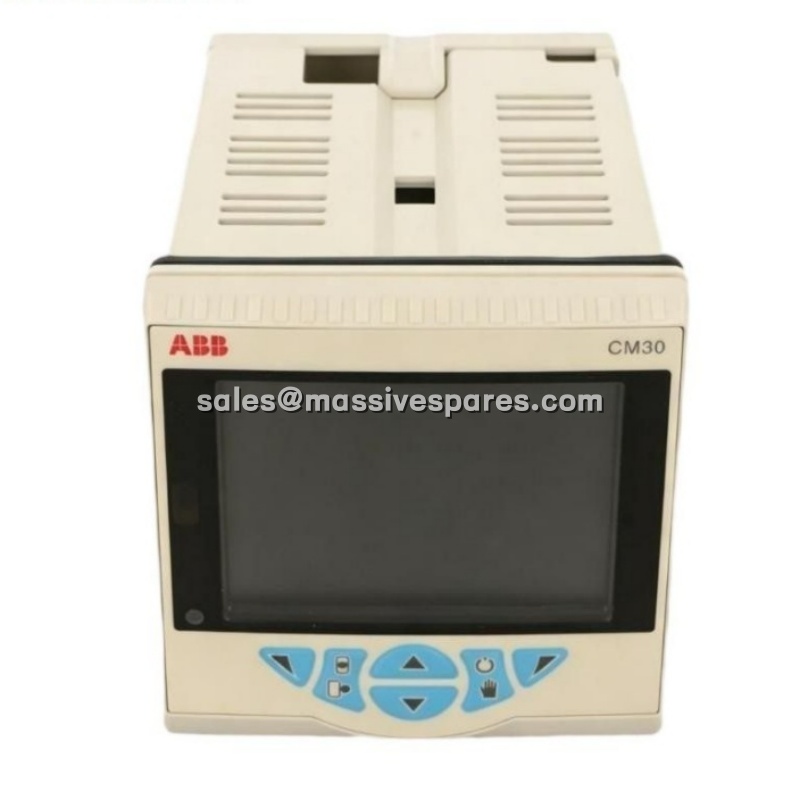

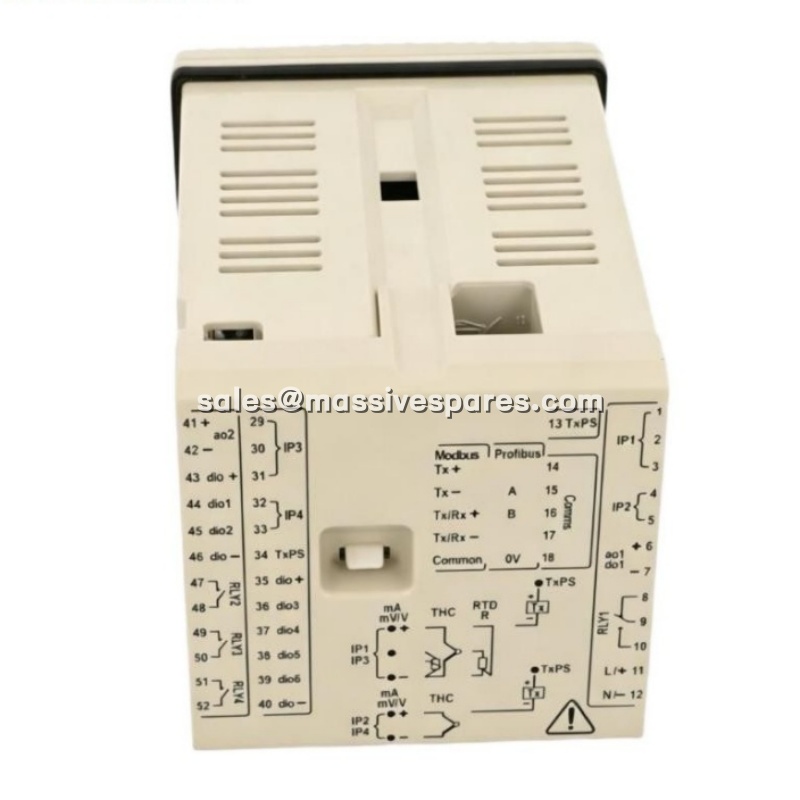

ABB CM30 ControlMaster Universal Process Controller with Color TFT Display

Brand ABB

Model ABB CM30-NEW

Product Overview

The ABB ControlMaster CM30 is a highly versatile 1/4 DIN universal PID process controller designed to deliver precise, reliable loop control across a wide range of industrial applications. Part of ABB’s ControlMaster family, the ABB CM30 combines a clear, full-color TFT display with an intuitive operator interface that simplifies configuration, commissioning, and daily operation. Its scalable hardware and software architecture allows a single controller platform to cover applications ranging from a basic single control loop to advanced dual-loop strategies, making it a flexible alternative to both dedicated single-loop instruments and larger distributed control systems.

The ABB ControlMaster CM30 accepts universal process inputs, including thermocouple, RTD, mV, V, mA, resistance, frequency, and digital signals, allowing it to connect directly to temperature sensors, pressure transmitters, flow meters, level instruments, and other field devices without additional signal conditioning. Control modes include PID, on/off, time-proportioning, current-proportioning, and motorized-valve control, supported by advanced autotune and up to three sets of gain scheduling for improved performance across changing process conditions. Four local setpoints can be selected via the front panel or a digital input, and up to eight configurable process alarms provide comprehensive monitoring.

The ABB CM30 is available in base, standard, and extended functionality levels, with options for dual-loop control, cascade, feed-forward, ratio, predictive, and adaptive strategies, as well as math, logic, and totalization functions. Communication options include Modbus RTU over RS-485 and Ethernet, enabling straightforward integration with PLCs, SCADA systems, and other process instrumentation. With a rugged IP66 (NEMA 4X) front-face rating, the controller is built to survive demanding industrial environments, including washdown and panel-mount installations.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	ABB ControlMaster CM30
Manufacturer	ABB Measurement & Analytics (Process Automation)
Product Type	Universal PID Process Controller
Series / Platform	ControlMaster
Panel Size	1/4 DIN (96 × 96 mm front)
Panel Cutout	92 × 92 mm
Overall Dimensions (approx.)	97 × 97 × 141 mm
Approx. Weight	0.5 kg (unpacked)
Display	Full-color TFT LCD with customizable operator pages
Control Loops	Single loop (base); dual loop available (extended)
Control Modes	PID, On/Off, time-proportioning, current-proportioning, motorized valve, manual reset
Analog Inputs	2 standard universal inputs (thermocouple, RTD, mV, V, mA, resistance, frequency, digital)
Additional Analog Inputs	Up to 1 extra universal input via option board 2
Analog Outputs	1 standard isolated analog output (0–20 mA / 4–20 mA); additional via option boards
Relay Outputs	1 standard changeover relay; up to 4 relays with option boards
Digital I/O	Configurable digital inputs and outputs, expanded via option boards
Frequency Input Range	0–6000 Hz
Setpoints	4 local setpoints, selectable via front panel or digital input
Alarms	8 configurable process alarms
Autotune	Advanced autotune capability
Power Supply	90–264 V AC, 50/60 Hz (24 V DC variants available)
Power Consumption	10 W max
Communication	Modbus RTU (RS-485) and Ethernet options
Front Protection	IP66 / NEMA 4X
Rear Protection	IP20
Operating Temperature	0 °C to +55 °C
Case Material	Glass-filled polycarbonate
Approvals	CE (EN 61010-1), cULus, DNV marine approval
Standards Compliance	IEC 61326, RoHS Directive
Configuration	Front-panel menus or ConfigPilot PC software
Mounting	Panel mount with panel clamps

Main Features and Advantages

The ABB ControlMaster CM30 stands out for its combination of versatility, usability, and ruggedness. The full-color TFT display presents detailed process information in plain text rather than cryptic codes, with customizable operator pages that can show process variables, setpoints, outputs, alarms, and live trend graphs. This clarity reduces operator training time and makes day-to-day monitoring more efficient, particularly in multi-loop or multi-instrument panels.

Scalability is a core strength of the ABB CM30. The controller can be specified at base level for a simple single loop, at standard level for additional control and I/O functions, or at extended level for advanced dual-loop and control strategies. This allows users to start with a cost-effective configuration and add capability as the application evolves, without changing the controller platform. Templates cover single-loop control, remote setpoint, auto/manual stations, analog backup stations, cascade, feed-forward, ratio control, and dual-loop operation.

The ABB ControlMaster CM30 also offers powerful problem-solving tools, including math and logic functions, totalization, custom linearizers, delay timers, gain scheduling, and output tracking. These features enable the controller to handle application-specific requirements that would otherwise require additional instruments or a PLC. The integrated profile and bank control functions support multi-segment setpoint programs, making the controller suitable for ramp/soak and recipe-based processes.

From an integration perspective, the ABB CM30 supports Modbus RTU over RS-485 and Ethernet communications, allowing it to share data with PLCs, SCADA systems, and other intelligent instruments. Configuration can be carried out through intuitive front-panel menus or ABB’s ConfigPilot software, with autotune simplifying commissioning and loop tuning. Combined with IP66 and NEMA 4X front-face protection, the controller is well suited to harsh industrial environments where reliability and visibility are essential.
