Description
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 5069-RTB64-SCREW |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Type | Removable Terminal Block (RTB) Kit, Screw Type – Power Terminal |
| Product Series | Compact 5000 I/O (Bulletin 5069), Series A |

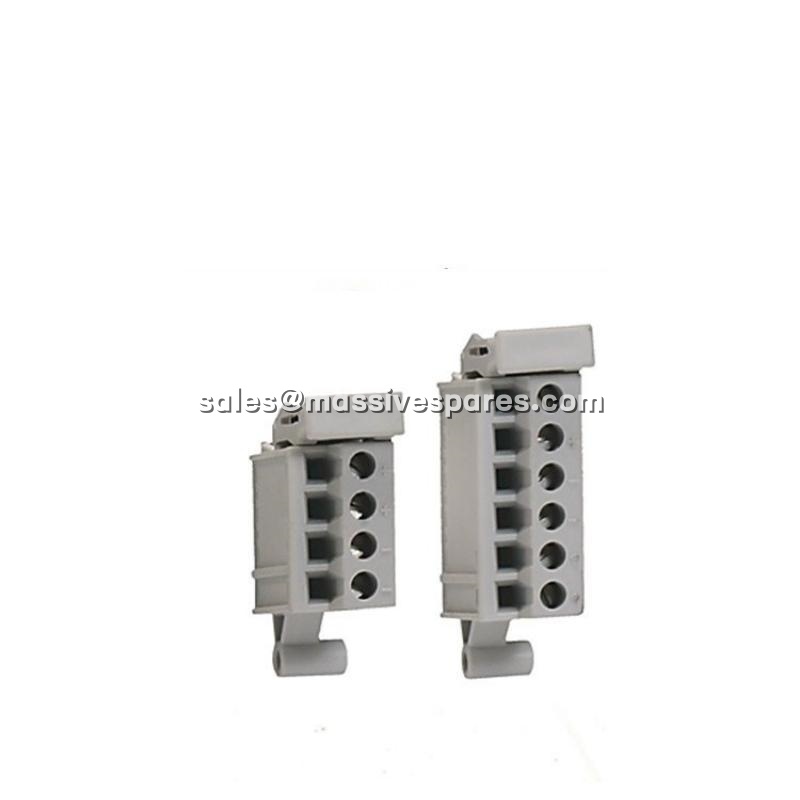

| Kit Contents | One 5069-RTB4-SCREW RTB (4-position, MOD power) and one 5069-RTB6-SCREW RTB (6-position, SA power) |
| Termination Style | Screw clamp, single wire per terminal |
| Rated Voltage, Max | 300 V AC |
| Rated Current, Max | 10 A per terminal |
| Wire Size | 0.5…1.5 mm² (22…16 AWG) solid or stranded copper, rated 105 °C (221 °F) or greater |
| Max Wire Diameter Including Insulation | 3.5 mm (0.14 in.) |
| Insulation Stripping Length | 12 mm (0.47 in.) |
| Terminal Screw Torque | 0.4 N·m (3.5 lb·in) |
| RTB Keying | None |
| Isolation Voltage | 250 V continuous basic insulation (SA and MOD power to backplane, SA to MOD power) |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 5…95% non-condensing |
| Vibration / Shock | 5 G @ 10…500 Hz / 30 G operating, 50 G non-operating |
| Mounting | Plugs into module or adapter; system mounted on EN50022 35 x 7.5 mm zinc-plated steel DIN rail |
| Enclosure Rating | None (open-style, for installation inside a control cabinet) |
| UPC | 887172727016 |
| Country of Origin | Germany |
| Certifications | cULus Listed, CE, ATEX, IECEx, KC, RCM, EAC |
| Lifecycle Status | Active |
Main Features and Advantages
Two power domains in one correctly matched kit:
The Allen-Bradley 5069-RTB64-SCREW removes the guesswork from power wiring by pairing the 4-pin MOD block and the 6-pin SA block in a single catalog number. MOD power is the system-side supply that keeps the backplane, controller and adapters alive, while SA power is the field-side supply that energises sensors and actuators. Keeping the two on physically separate blocks, as the Allen-Bradley 5069-RTB64-SCREW does, is what allows an electrician to remove field power for a lock-out condition without shutting down the controller or losing the EtherNet/IP connection to the rest of the plant.
Torque-verifiable screw-clamp connections:
Screw terminals give commissioning and maintenance personnel something a spring cage cannot: a connection whose tightness can be seen and verified. At the specified 0.4 N·m (3.5 lb·in), the clamp forms a gas-tight joint that resists oxidation and loosening, and a calibrated torque screwdriver turns every termination into a repeatable, auditable step. For facilities with conservative electrical standards, or where stranded conductors with ferrules are the norm, the Allen-Bradley 5069-RTB64-SCREW is the termination style that satisfies both the standard and the electrician.
Genuine fit, full ratings, zero re-engineering:
Because the Allen-Bradley 5069-RTB64-SCREW is manufactured to the exact mechanical and electrical envelope of the 5069 platform, it seats and latches correctly, carries the full 300 V AC and 10 A ratings, and maintains the 250 V continuous basic isolation between SA power, MOD power and the backplane. Generic terminal strips cannot guarantee that isolation geometry, and an ill-fitting block risks intermittent power loss that is notoriously difficult to trace in a running machine.
Built for the real environment of a control cabinet:
Rated for continuous operation from 0 to 60 °C with 5 to 95% non-condensing humidity, and validated against 5 G vibration and 30 G operating shock, the Allen-Bradley 5069-RTB64-SCREW is specified for the same industrial envelope as the modules it serves, and it carries the cULus, CE, ATEX and IECEx marks needed for global machine export and hazardous-location installations.
