Description
Application Scenarios
A tier-one automotive manufacturer operating a robotic welding cell faced a recurring challenge: safety door interlocks and light curtain signals were routed through standard input modules, creating a single point of failure that could compromise both operator safety and production uptime. The engineering team replaced the standard I/O with 5069-IB8S safety input modules, integrating them into a Compact GuardLogix 5380 safety controller via EtherNet/IP. Because the 5069-IB8S supports safety pulse test diagnostics, the system can now continuously verify the integrity of field wiring and sensor functionality without interrupting production. When a marginal light curtain output began degrading, the module flagged a discrepancy fault before the signal failed completely, allowing maintenance to schedule a replacement during a planned changeover rather than suffering an unplanned line stoppage. The module’s compact footprint also freed cabinet space for additional safety zones.
Parameters
| Main Parameters | Value/Description |
|---|---|

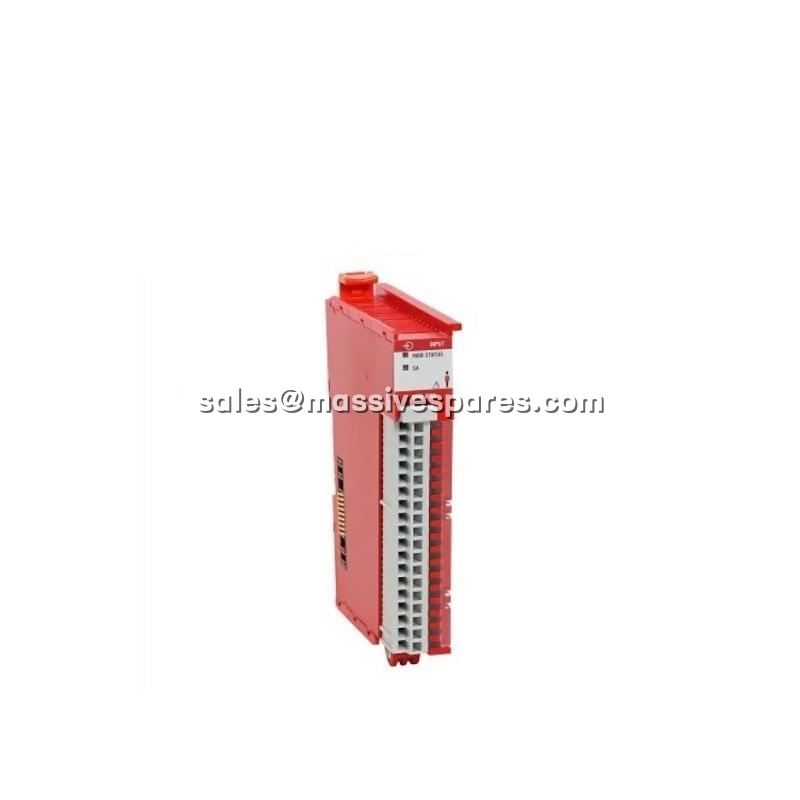

| Product Model | 5069-IB8S |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Category | Safety Input Module (Compact 5000 I/O) |
| Input Channels | 8 sinking inputs |
| Input Voltage | 24 VDC nominal |
| Operating Voltage Range | 18–32 VDC |
| Input Rating | 2.5 mA per channel |
| Test Outputs | 2 standard test outputs + 2 test/muting outputs |
| Max Current per Channel | 0.3 A |
| MOD Power | 75 mA @ 18–32 VDC |
| SA Power | 100 mA @ 18–32 VDC |
| Isolation Voltage | 250 V |
| Safety Certification | SIL CL 3, PLe, Cat. 4 (IEC 61508, ISO 13849-1) |
| Mounting | DIN rail (EN50022 35 × 7.5 mm) |
| Operating Temperature | 0°C to +60°C |
| Weight | Approximately 0.23 kg |
Technical Principles and Innovative Values
Innovation Point 1: Integrated Safety Pulse Test Diagnostics. The 5069-IB8S performs continuous pulse testing on input channels to detect latent faults in field wiring and connected sensors. This diagnostic capability allows the module to achieve SIL CL 3 and PLe Cat. 4 ratings without requiring redundant external wiring in single-channel configurations, significantly reducing installation complexity and material costs.
Innovation Point 2: Dual-Purpose Test and Muting Outputs. Beyond its eight safety inputs, the 5069-IB8S provides two dedicated test outputs and two test/muting outputs. The muting outputs can drive indicator lamps or coordinate with muting sensors for applications such as material transport through light curtains without triggering a safety stop, consolidating multiple functions into a single module slot .
Innovation Point 3: Fast Module Reaction Time and Configurable RPI. The module supports Requested Packet Interval (RPI) settings from 2 to 500 ms for safety modules, enabling precise adaptation to machine cycle times and safety response requirements . The Connection Reaction Time Limit defaults to four times the RPI, ensuring robust network fault detection without unnecessary sensitivity.
Innovation Point 4: Compact Design with Electronic Keying. The 5069-IB8S occupies minimal panel space while providing electronic keying to prevent incorrect module substitution. This feature eliminates configuration errors during maintenance and ensures that only compatible firmware and module types are accepted by the controller .
