Description
Application Scenarios
In a coastal petrochemical facility, turbine-driven compressors operate in an environment saturated with salt-laden moisture and electromagnetic interference from large variable-frequency drives. The existing vibration monitoring rack occasionally exhibited signal dropouts that plant engineers traced to unstable DC power delivery. Because the rack lacked a backup supply, any power anomaly risked losing protection on a critical train.
The maintenance team replaced the aging supply with a pair of Bently Nevada 107540-01A modules configured for redundant operation. The 107540-01A features an integrated line noise filter and overload-protected transducer outputs, which immediately stabilized the monitoring rack’s power bus. Since commissioning, the facility has recorded zero power-related monitoring interruptions during eighteen months of continuous operation. The second 107540-01A in the upper slot now sits as a dormant sentinel—ready to assume full load instantly if the primary unit ever falters, delivering the peace of mind that critical turbomachinery protection demands.
Parameter
| Parameter | Specification |
|---|---|

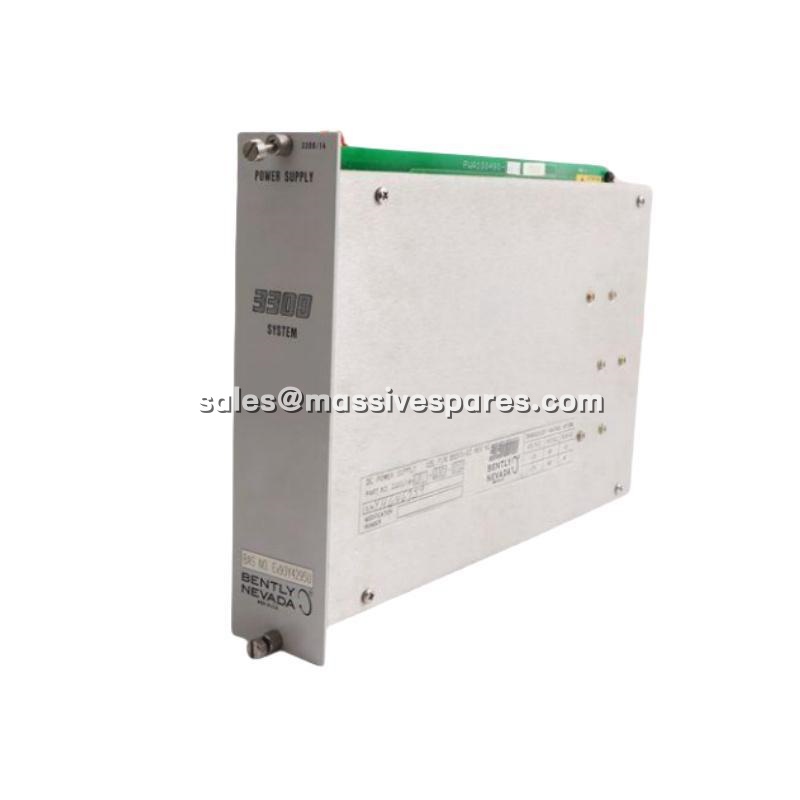

| Product Model | 107540-01A |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Category | AC Power Supply Module (Rack-Mounted) |
| Series Compatibility | Bently Nevada 3300 Machinery Monitoring System |
| Input Voltage | 95–125 VAC / 190–250 VAC, field-selectable |
| Output Voltage | 24 VDC (transducer power, user-programmable) |
| Current Rating | 1.0 A maximum (low-voltage option) |
| Frequency | 50/60 Hz |
| Operating Temperature | -40°C to +65°C (-40°F to +149°F) |
| Dimensions (H × W × D) | 109 × 135 × 152 mm (4.3 × 5.3 × 6.0 in) |
| Weight | Approximately 0.9 kg (2.0 lbs) |
| Protection Class | IP20 |
| Installation Position | Slot 1 (leftmost, adjacent to System Monitor) |
| Redundancy Support | Yes – dual-supply hot standby configuration |
| Origin | United States |
Technical Principles and Innovative Values
Innovation Point 1: Field-Selectable Dual-Range Input. The 107540-01A accepts either 95–125 VAC or 190–250 VAC through an internal jumper and fuse change, eliminating the need to stock different power supply variants for different regions or plant voltages. This single-module versatility reduces spare parts inventory and simplifies global project standardization.
Innovation Point 2: Integrated Transducer Power with Per-Channel Protection. Unlike generic industrial power supplies, the 107540-01A delivers user-programmable 24 VDC (or -18 VDC) transducer excitation directly to the rack backplane. Overload protection is implemented at the individual monitor circuit board level, meaning a single faulty transducer cannot drag down the entire rack’s power rail. This distributed protection philosophy significantly improves system-level fault tolerance.
Innovation Point 3: True Hot-Standby Redundancy Architecture. When two 107540-01A modules populate a 3300 rack, the lower slot acts as primary and the upper slot as backup. The backup supply continuously monitors the primary and assumes the full load within milliseconds if a failure occurs—without interrupting rack operation or disturbing monitoring functions. Removing or inserting either module during live operation is safe, a capabil
