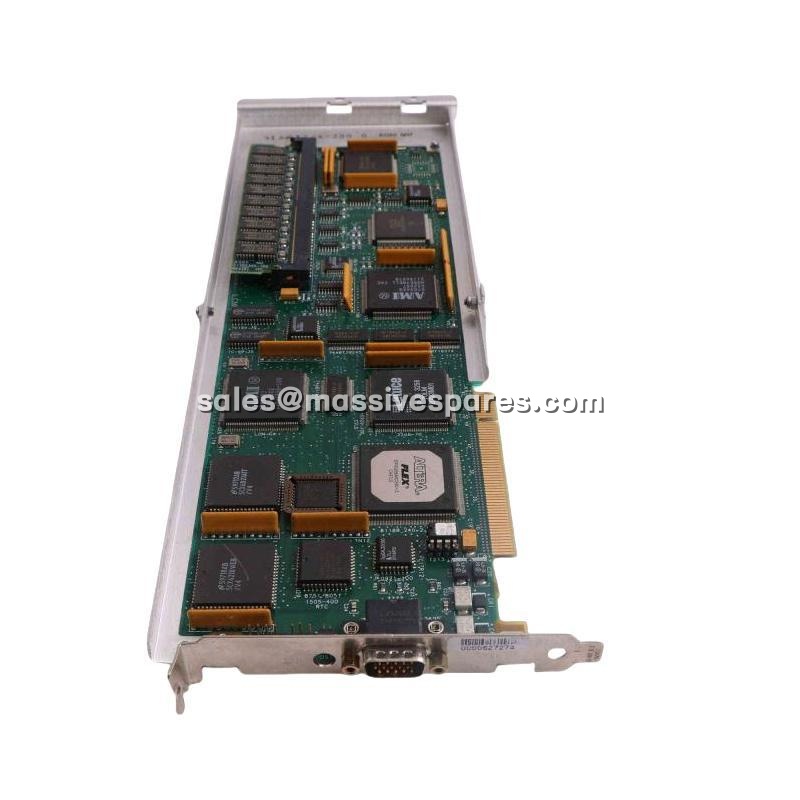

Honeywell 51402797-200 16-Channel Analog Input Module for TDC 3000 / Experion PKS DCS

Brand Honeywell

Model Honeywell 51402797-200 16-Channel

Product Overview

The Honeywell 51402797-200 is a 16-channel Analog Input Module (AIM) engineered for Honeywell distributed control systems, including the legacy TDC 3000 architecture and its evolutionary successors such as TPS and Experion PKS. Its fundamental role is to acquire continuous analog signals from field instruments — temperature transmitters, pressure transducers, flow meters, level sensors, and analytical analyzers — and convert them into high-fidelity digital process data that the control system can monitor, record, and act upon. In a typical installation, the Honeywell 51402797-200 works in conjunction with a dedicated Field Termination Assembly (FTA), forming the established module-plus-termination architecture used throughout the 5140-series TDC 3000 I/O family.

Signal fidelity is the defining priority of the Honeywell 51402797-200. Each of the 16 input channels accepts standard industrial signal ranges, most commonly 4–20 mA current loops and 0–10 V voltage inputs, with high input impedance that minimizes loading on the connected transmitter. A precision analog-to-digital converter — specified at 16-bit resolution or better — digitizes each channel, while internal signal conditioning provides filtering, cold-junction compensation where applicable, and galvanic isolation rated at 1,500 VAC RMS between field inputs and the system backplane. This isolation is critical: it prevents ground loops, electrical surges, and electromagnetic interference from propagating from the hazardous field environment into the sensitive control electronics.

The module’s value extends beyond simple data conversion. By delivering accurate, time-consistent process values to the control processor, the Honeywell 51402797-200 underpins PID loop performance, alarm detection, historical trending, and operator situational awareness. Its 16-channel density reduces cabinet footprint and marshalling complexity, while onboard diagnostics — including open-circuit detection, over-range indication, and module-health reporting — support rapid troubleshooting. For plants operating mature but still capable TDC 3000 assets, the availability of tested replacement units makes the Honeywell 51402797-200 a cornerstone of reliability strategy, preserving proven control logic and instrumentation wiring without the cost and risk of full-scale migration.

Request Price

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	51402797-200
Manufacturer	Honeywell
Product Type	Analog Input Module (AIM)
Alternate Designation	High-Level Analog Input (HLAI) / I/O Module
System Family	Honeywell TDC 3000 / TPS / Experion PKS
Input Channels	16 (single-ended; grouped)
Supported Signal Types	4–20 mA, 0–20 mA, 0–10 V, 1–5 V
Resolution	16-bit or higher (per channel)
Accuracy	±0.1% of full scale (typical)
Input Impedance	High impedance (minimizes transmitter loading)
Galvanic Isolation	1,500 VAC RMS (channel-to-system / field-to-backplane)
Sampling / Update Rate	≈100 ms (module-level; typical)
Diagnostics	Open-circuit, over-range, module-health, channel fault
Termination	Field Termination Assembly (FTA), 50-pin interface
Communication	Backplane / I/O link to control processor (system-internal)
Operating Voltage	24 VDC (backplane-supplied)
Power Consumption	≈5 W (typical)
Mounting	Plug-in module, keyed connectors, Honeywell I/O chassis
Operating Temperature	0 °C to +60 °C (control-room grade)
Storage Temperature	−40 °C to +85 °C
Humidity	5–95% RH, non-condensing
Protection	Conformal coating (dust, moisture, corrosion resistant)
Approx. Dimensions	216 × 160 × 30 mm (8.5 × 6.3 × 1.2 in)
Approx. Weight	0.24–0.50 kg (vendor-dependent)
Country of Origin	USA

Main Features and Advantages

High-density, multi-channel signal acquisition

The Honeywell 51402797-200 consolidates 16 analog input channels into a single compact module, enabling one assembly to monitor an entire instrument loop bank — a reactor temperature profile, a compressor suction/ discharge pressure pair, or a multi-stage separator level sequence. This density reduces I/O chassis slot count, terminal-block quantity, and cabinet real estate, translating directly into lower installation cost and simpler system documentation.

Precision conversion with 16-bit resolution

Each channel is equipped with a high-resolution analog-to-digital converter that preserves the fine detail of process measurements. Whether tracking a slow-changing tank level or capturing rapid pressure transients, the Honeywell 51402797-200 maintains the accuracy needed for tight PID control and regulatory compliance. With ±0.1% full-scale accuracy and minimal zero drift, the module ensures that the value seen by the operator is the value at the transmitter — a foundation of trustworthy automation.

Flexible signal compatibility

The module accepts the full range of standard process signals: 4–20 mA for live-zero current-loop transmitters, 0–20 mA for specialized flow applications, and 0–10 V / 1–5 V for voltage-source devices such as analyzers and signal isolators. This flexibility allows the Honeywell 51402797-200 to serve mixed-instrumentation installations without requiring separate module families for current and voltage, simplifying spares inventory and configuration management.

Robust galvanic isolation

Rated at 1,500 VAC RMS, the channel-to-system isolation barrier protects the control backplane from field-side surges, lightning-induced transients, and ground-potential differences. In electrically noisy environments — switchgear rooms, compressor sheds, remote tank farms — this isolation is the difference between stable operation and mysterious, hard-to-diagnose measurement drift. The Honeywell 51402797-200 maintains signal integrity even where long cable runs and high-current neighbors would compromise lesser modules.

Integrated diagnostics for faster troubleshooting

Onboard diagnostic intelligence continuously monitors each channel for open-circuit conditions (broken wire or failed transmitter), over-range inputs, and internal faults. Fault information is reported through the control system, allowing maintenance teams to distinguish a transmitter failure from a module or termination issue without physical inspection. The result is shorter mean time to repair and fewer unnecessary module swaps.

Industrial-grade construction

Conformal coating on the PCB, gold-plated keyed connectors, and a rugged aluminum/FR4 construction equip the Honeywell 51402797-200 for continuous 24/7 duty in harsh conditions. The wide operating temperature range and 5–95% non-condensing humidity tolerance ensure dependable performance in both climate-controlled control rooms and challenging field-mounted enclosures.

Legacy-asset protection

For facilities committed to maximizing the life of their TDC 3000 installation, the Honeywell 51402797-200 represents a low-risk path to sustained reliability. By preserving original I/O architecture, field wiring, and configuration, replacement modules avoid the disruption of retooling, recalibration, or control logic rewrite — extending the value of the installed asset by years.
