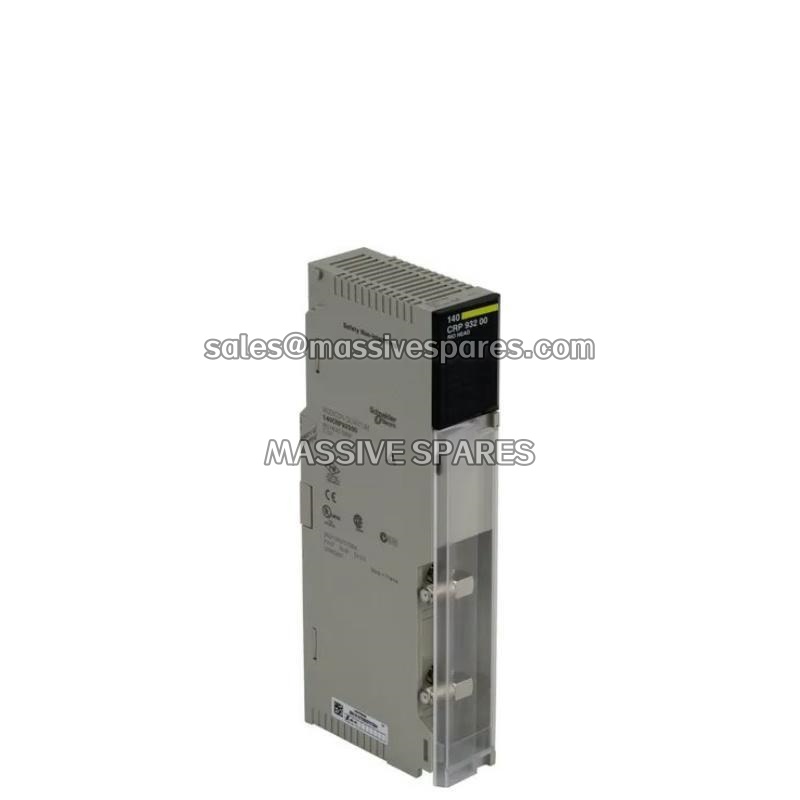

Schneider Electric 140CRP93200 RIO Head-End Adaptor Module for Modicon Quantum

Description

Application Scenarios

A municipal wastewater treatment utility in Northern Europe ran a 24-hour aeration and filtration process on a Modicon Quantum platform, with I/O cabinets scattered across pump houses, blower buildings, and chemical dosing sheds. The original single-cable RIO topology had produced repeated communication losses during ground-fault events and cable damage from moisture ingress — each drop outage forced operators to run the process in manual mode. By replacing the head-end interface with the 140CRP93200 and deploying a second coaxial run in a hot-standby loop, the plant achieved seamless switchover between channels, cut unscheduled I/O downtime to near zero, and preserved its entire existing Quantum I/O investment without a controller migration.

The 140CRP93200 addresses three recurring pain points in distributed industrial control: communication link failure over long coaxial runs, the need to host mixed Quantum and Symax I/O families on one backbone, and the demand for deterministic scan times in time-critical loops. Wherever a Quantum controller must supervise field equipment hundreds of meters away — tank farms, water treatment trains, paper machine sections, substation switchgear — the 140CRP93200 provides the reliable head-end anchor for the network.
