Description
Parameter
| Main Parameters | Value / Description |
|---|---|

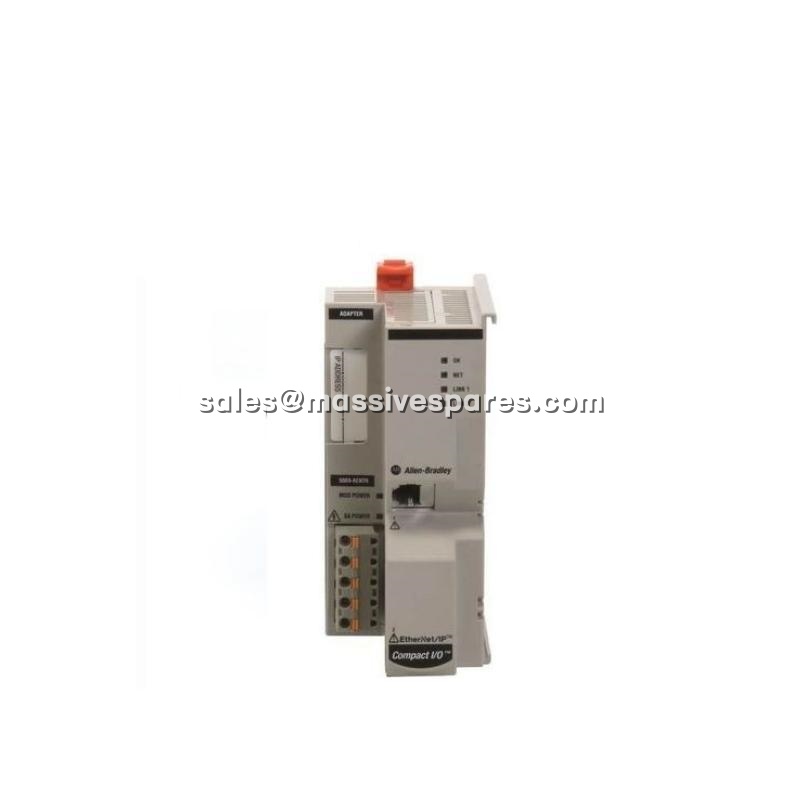

| Product Model | 5069-AENTR |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Category | EtherNet/IP Adapter Module |
| I/O Capacity | Supports up to 31 Compact 5000 I/O modules |
| Ethernet Ports | Dual 10/100/1000 Mbps RJ-45 |
| Network Topologies | Linear, Star, Device Level Ring (DLR) |
| Minimum RPI | 200 μs |
| CIP Connections | 64 maximum |
| Input Voltage | 18–32V DC (24V DC nominal) |
| MOD Power Consumption | 220 mA typical |
| Dimensions (H×W×D) | 138 × 56 × 105 mm (5.43 × 2.20 × 4.15 in.) |
| Operating Temperature | 0°C to +60°C |
| Safety Rating | SIL 3 / PLe (with compatible safety modules) |
| Certifications | UL, CE, cULus, KC, ATEX |
Parameter notes
- Minimum RPI 200 μs: The shortest Requested Packet Interval supported, enabling high-speed I/O updates for time-critical applications.
- 64 CIP connections: Sufficient for medium-to-large I/O systems with multiple consumers and producers on the network.
- Dual Ethernet ports: Enables daisy-chain linear topology or DLR ring for network redundancy without external switches.
- SIL 3/PLe: When paired with appropriate safety I/O modules and a GuardLogix controller, supports safety functions up to the highest integrity levels.
Technical Principles and Innovative Values
- Innovation Point 1: Integrated dual-port gigabit switch with DLR support. Unlike traditional adapters that require external managed switches for redundancy, the 5069-AENTR embeds a 2-port gigabit switch that natively supports Device Level Ring topology . If a network cable fails in a DLR configuration, the ring reconfigures automatically, maintaining communication with all nodes. This eliminates a single point of failure at the network infrastructure level while reducing hardware cost and cabinet space.
- Innovation Point 2: Dual power bus architecture for noise isolation. The Compact 5000 system separates MOD Power (for module logic and communication) from SA Power (for field-side sensors and actuators) . The 5069-AENTR manages both power domains, providing system-side power to the backplane while passing through field-side power to downstream I/O modules. This isolation prevents electrical noise from field devices from corrupting controller logic, a critical reliability factor in electrically noisy industrial environments.
- Innovation Point 3: Protected Mode for configuration security. Once I/O connections are established, the 5069-AENTR automatically enters Protected Mode, disabling access to services that could disrupt operation . In this state, firmware updates, IP address changes, and port configuration modifications are blocked. This security enhancement reduces the attack surface and prevents unauthorized or accidental configuration changes that could take the I/O system offline.
- Innovation Point 4: Slim form factor with high module density. The 5069-AENTR occupies minimal DIN rail space while supporting up to 31 I/O modules. Its 56 mm width and 105 mm depth allow high-density installations in space-constrained control cabinets . For applications where panel space commands a premium, this design enables significantly more I/O points per square foot than legacy platforms.
