Description
Application Scenarios
In a large thermal power plant, the balance-of-plant monitoring system relies on the Ovation DCS to track hundreds of discrete status points—valve positions, pump run/stop feedback, and breaker status signals. These field devices operate at 125 V DC, a voltage level that demands careful protection against wiring faults.
When a field cable insulation degrades on a single channel, a short circuit could potentially damage the input electronics or disrupt power distribution to adjacent channels. The 5X00034G01 addresses this vulnerability through individual fusing. Each of the 16 input points carries its own fast-acting fuse, so a fault on one channel is isolated before it propagates. Maintenance personnel can identify the blown fuse through the documented fuse-status circuit and restore operation without affecting the remaining 15 points. This architecture directly supports the plant’s availability targets, where an unplanned DCS I/O failure can trigger a unit derate or trip.
Parameter

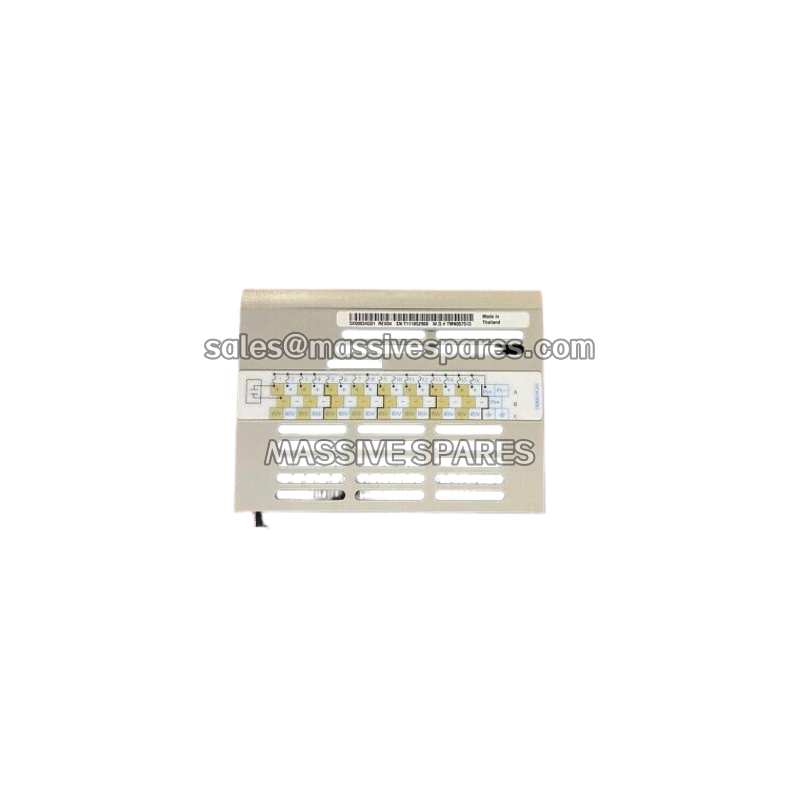

| Main Parameters | Value/Description |
|---|---|
| Product Model | 5X00034G01 |
| Manufacturer | Emerson |
| Product Category | 16-Point Individually Fused Personality Module (PMOD) |
| Product Family | Ovation I/O |
| Input Configuration | Differential, 16 points, common field supply |
| Fuse Rating | 0.5 A, 125 V, fast-acting |
| Replacement Fuse | PS10007H03 (plug-in micro-fuse) |
| Compatible Electronics Module (Digital Input) | 1C31232G02 (24/48 V AC/DC), 1C31232G03 (125 V AC/DC) |
| Compatible Electronics Module (SOE) | 1C31233G02 (24/48 V DC), 1C31233G03 (125 V DC) |
| Incompatible Module | 1C31232G01 (single-ended configuration) |
| Weight | Approximately 0.2–0.35 kg |
| Mounting | Ovation base unit, DIN rail |
| Origin | USA |
