Description
Application Scenarios
In a steel plant’s hot rolling line, a 5 MW medium-voltage drive controlling the main mill stand suddenly trips during a critical pass. The SCADA system logs a “Gate Drive Fault” alarm, but the power semiconductor itself tests within specification. Maintenance engineers spend hours suspecting the IGCT, only to discover the real culprit: an aging 3BHB004027R0101 gate drive board whose RC snubber components have drifted, causing intermittent misfiring under high dv/dt conditions . The board’s optical receiver, exposed to years of cabinet dust accumulation, had degraded its signal integrity just enough to trigger false fault protection.
This is the reality of medium-voltage drive maintenance. The GV C700 AE01 sits at the electrical frontier between sensitive control logic and brutal power switching—where voltage stress, dv/dt, and gate reverse peaks all converge on a single PCB . When this board fails, it doesn’t always fail dramatically. More often, it manifests as unexplained drive trips, intermittent phase loss alarms, or erratic gate timing that makes the entire power stack unreliable. For operations managers, the 3BHB004027R0101 represents a single point of failure that can halt megawatt-class production with symptoms that mimic other, more expensive components.
Parameter

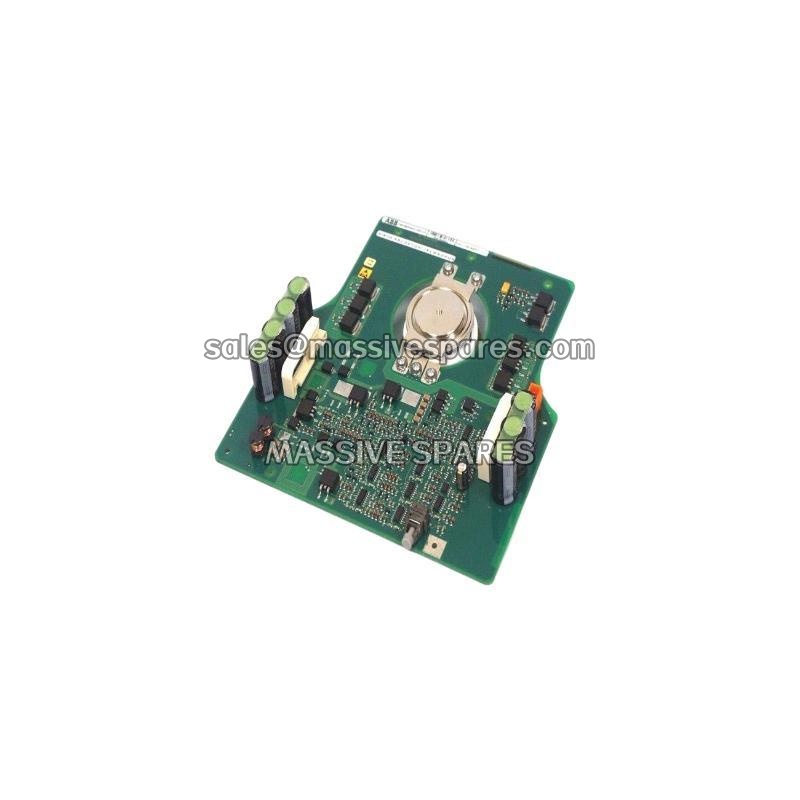

| Main Parameters | Value/Description |
|---|---|
| Product Model | 3BHB004027R0101 |
| Board Identifier | GV C700 AE01 |
| Manufacturer | ABB |
| Product Category | Gate Drive Interface PCB / Trigger Board |
| Associated Part Numbers | 3BHL000382P0101, 5SHX0445D0001 (on-board component references) |
| Compatible Systems | ABB ACS 800 / PCS 800 medium-voltage drives |
| Core Function | Optical pulse reception, gate drive level translation, fault protection |
| Signal Interface | Fiber optic input (control side → gate side) |
| Output Side | IGBT / IGCT gate drive output |
| Control Supply | 24 V DC (typical) |
| Operating Temperature | -25°C to +55°C (cabinet-dependent) |
| Mounting | Power cabinet internal, fixed installation |
Technical Principles and Innovative Values
- Innovation Point 1: Optical Isolation as the Last Line of Defense. The GV C700 AE01 receives control commands through plastic optical fiber (POF), creating complete galvanic isolation between the low-voltage control cabinet and the high-voltage power stack. In medium-voltage environments where common-mode voltages reach thousands of volts and dv/dt exceeds 10 kV/μs, conventional electrical isolation fails. The optical link on the 3BHB004027R0101 maintains signal integrity while protecting both the control electronics and personnel from dangerous potential differences .
- Innovation Point 2: IGCT-Optimized Gate Drive Waveform. Unlike standard IGBT drivers, the GV C700 AE01 is specifically engineered for IGCT turn-off characteristics—requiring high peak current, fast rise times, and precisely timed back-porch shaping. A mismatched or degraded drive waveform doesn’t simply cause the IGCT to fail open; it causes excessive turn-off losses that can destroy the semiconductor within microseconds. The 3BHB004027R0101’s gate drive stage is calibrated to match ABB’s 4.5 kV IGCT family, ensuring deterministic switching performance across the device’s operational envelope .
- Innovation Point 3: Fault Detection Before Catastrophe. The board integrates hardware-level fault monitoring that continuously validates gate circuit integrity. When abnormal conditions are detected—open gate, shorted gate, supply undervoltage—the GV C700 AE01 blocks output within milliseconds and reports fault status back to the main controller via optical feedback. This protection architecture prevents a single driver board fault from cascading into IGCT destruction and subsequent power stack damage .
